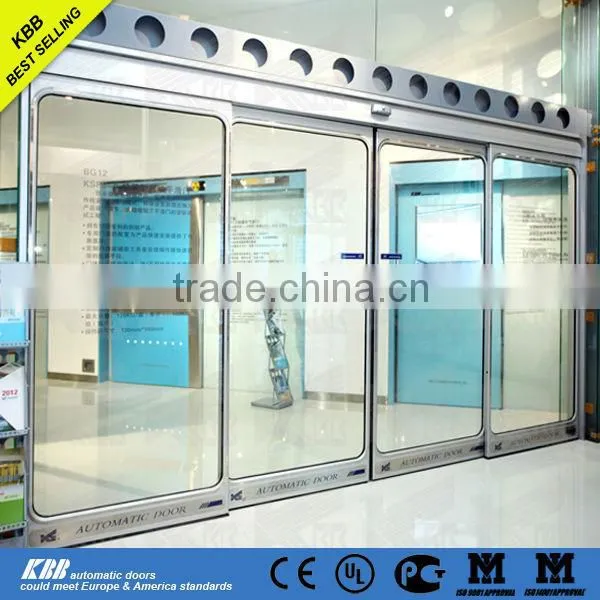

sliding door closer with key switch

KBB sliding door closer with key switch

The detailed information are as follows.

KBB Automatic sliding doors are welcomed so well by the clients from China and abroad, at least 10,000 units were installed in the airports, hotels, shopping malls, office buildings, banks in the world every year.

Safety Features:

1. Safety beam which installed in the fix-door frame.

2. UPS backup battery ensures the door operates 30 minutes normally if power fails.

3. Install an electro-mechanical lock to ensure the door be locked more safely.

4. Panic breakout: KS3000 could install this function, it could open during emergency time or oversize object. Overlapping position.

Technical Data:

1. Maximum Door Weight ( Single Parting ) : 1 × 150kg.

2. Maximum Door Weight ( Bi - Parting )  :  2 x 120 kg.

3. Opening Speed Range: 0.4 - 0.7m / s (adjustable).

4. Closing Speed Range: 0.3 - 0.6m / s (adjustable).

5. Keep Opening Time Adjustable Range : 5~10s (5s, Standard) .

6. Power supply: 220VAC±10%,50HZ ,10A .

7. Rated power: 100W .

8. Max. drive power (static): 150N .

9. UPS backup battery:  30min .

10. Ambient temperature: -30.C – 50.C

11. Max. relative humidity: 90% .

12. Protection level: IP23 .

Specifications:

Door width (DW)       2w+300mm

Opening width (W)    800 - 3000mm

Opening height (H)    <=2600mm

Length of operator    2500mm - 8000mm

Key Components:

1. Main control unit -Philips –Netherlands

2. Motor - Dunkermotoren – Germany

3. Radar - BEA (Belgium)/OPTEX(Japan)

4. Durable rail - Special nylon, durable, quiet and self-lubricated

5. PSA control Panel - 37 parameters could be set.

6. Supporting rails - High strength, 5mm thickness

7. Carriage wheel

8. Operator Cover - optional
9.Infrared Safety beam - optional
10.Key switch - optional
11. Ups backup battery - optional

12.Electro-mechanical lock - optional.
13. Double drive unit - optional
