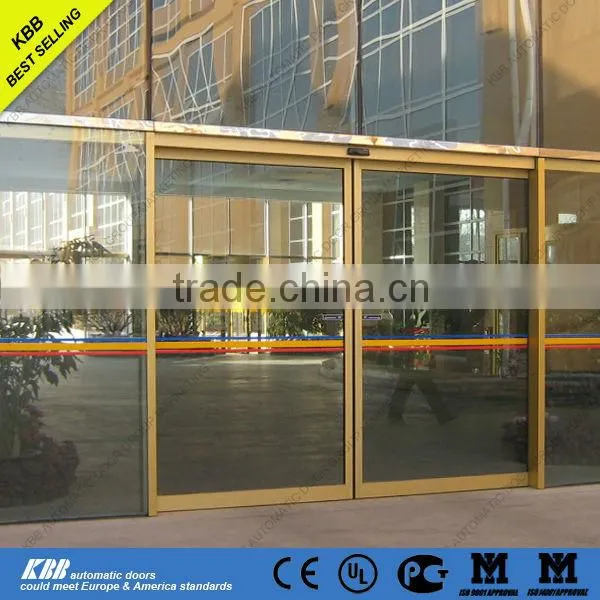

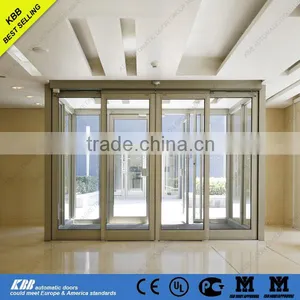

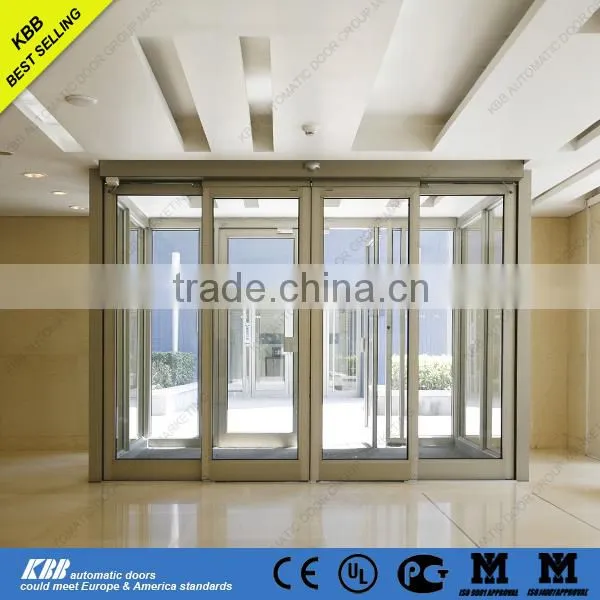

KBB Automatic Sliding Door with Panic Breakout System
* KBB Automatic Door Group is the largest automatic door manufacturer in China, even in Asia, also famous in the world .
* Our Doors had already sold to more than 70 countries in the world, the tallest building in South America called Titanium installed 4 units of our revovling door, others such as Hilton, Marriott, IKEA, the Shard are also our clients.
* Our after sale service team extend all over the world, the supports such as installation, maintenance, malfunction treating could be provided timely and perfectly .
KBB frameless automatic sliding door with the model KS1000 /3000 are accepted so well by the clients from China and abroad, at least 10,000 units were installed in the hotels, banks, airports,shopping malls, office buildings in the world every year.
Safety Features:
1. Safety beam which installed in the fix-door frame.
2. UPS backup battery ensures the door operates 30 minutes normally if power fails.
3. Install an electro-mechanical lock to ensure the door be locked more safely.

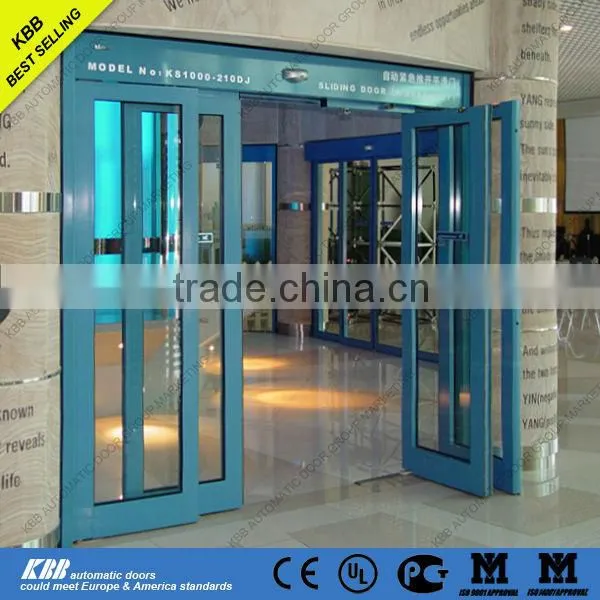

4. Panic breakout: KS3000 could install this function, it could open during emergency time or oversize object. Overlapping position.
Technical Data:
1. Maximum Door Weight ( Single Parting ) : 1 × 150kg.
2. Maximum Door Weight ( Bi - Parting ) : 2 x 120 kg.
3. Opening Speed Range: 0.4 - 0.7m / s (adjustable).
4. Closing Speed Range: 0.3 - 0.6m / s (adjustable).
5. Keep Opening Time Adjustable Range : 5~10s (5s, Standard) .
6. Power supply: 220VAC±10%,50HZ ,10A .
7. Rated power: 100W .
8. Max. drive power (static): 150N .
9. UPS backup battery: 30min .
10. Ambient temperature: -30.C – 50.C
11. Max. relative humidity: 90% .
12. Protection level: IP23 .
Specifications:
Door width (DW) 2w+300mm
Opening width (W) 800 - 3000mm
Opening height (H) <=2600mm
Length of operator 2500mm - 8000mm
Key Components:
1. Main control unit -Philips –Netherlands
2. Motor - Dunkermotoren – Germany
3. Radar - BEA (Belgium)/OPTEX(Japan)
4. Durable rail - Special nylon, durable, quiet and self-lubricated
5. PSA control Panel - 37 parameters could be set.
6. Supporting rails - High strength, 5mm thickness
7. Carriage wheel
8. Operator Cover - optional
9.Infrared Safety beam - optional
10.Key switch - optional
11. Ups backup battery - optional
12.Electro-mechanical lock - optional.
13. Double drive unit - optional
