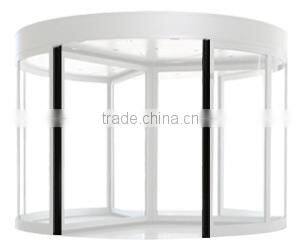

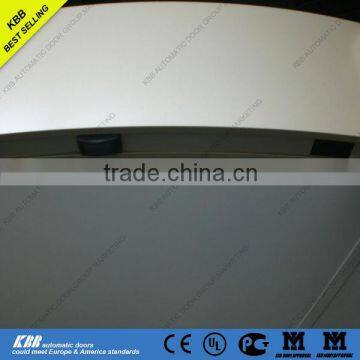

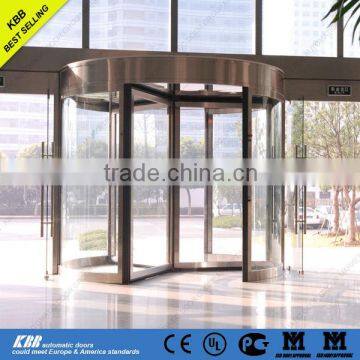

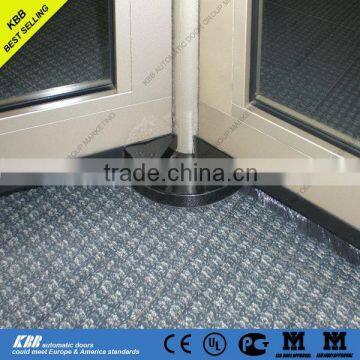

Help CenterAutomatic Revolving Door, Security Glass, Safety Sensor, Aluminum Frame, CE Certificate
Related Products
-
Automatic Revolving Door, Tempered Glass, RAL Painting SurfaceNegotiableMOQ: 1 Unit -
Hotel Automatic Revolving DoorNegotiableMOQ: 1 Unit
-
Revolving Door for BankNegotiableMOQ: 1 Unit
-
Mexico Novotel Hotel, Manual Revolving Door, UL CE ISO9001 CertificateNegotiableMOQ: 1 Unit
-
Australia Office Building , All Glass Revolving Door, ISO9001 CE UL CertificateNegotiableMOQ: 1 Unit
* KBB Automatic Door Group is the largest automatic door manufacturer in China, even in Asia, also famous in the world .
* Our Doors had already sold to more than 70 countries in the world, the tallest building in South America called Titanium installed 4 units of our revovling door, others such as Hilton, Marriott, IKEA, the Shard are also our clients.
* Our after sale service team extend all over the world, the supports such as installation, maintenance, malfunction treating could be provided timely and perfectly .
1, Special Load-Bearing Structure
2, Vertical/horizontal safety switch
3, Anti-squeeze
4, Anti-strike
5, Force-sensitive Control
6, Torque Control
7, Panic breakout system
8, Handicap
9, Night Security Door.
Operation features:
1, Continuous working mode
2, Go/Stop working mode
3, Remote control function
Power supply : 220VAC±10%,50HZ
Rated current :12VAC,50HZ
Rated power : 600W
Down lights : 400W
High speed adjustment range(revolving door) : 1-4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m.
Ambient temperature : -30.C – 45.C.
Max relative humidity : 90%.
Total weight <1000Kg
Operating noise ≤ 60db (A)
Inner Dia(D) | 1800mm | 2100mm | 2400mm | 2700mm | 3000mm | 3600mm |
Outer Dia (DT) | 1880mm | 2180mm | 2480mm | 2780mm | 3080mm | 3680mm |
Clear height | 2300mm | 2300mm | 2300mm | 2300mm | 2300mm | 2300mm |
Canopy height | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
Total height | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm |
1, Main control unit - SIEMENS
2, Operation program software – KBB
3, Transducer - SIEMENS
4, Drive unit - SIEMENS
5, Gear box - Sewdrive
6, Deceleration belt – CONTITECH
7, Spot light – PHILIPS
8, Detection radar - BEA, Infrared
9, High precision speed/position radar – HENGSTLER
10, Emergency stop button – KBB
11, Handicap button – KBB
12, Curved glass – YAOPI
13, Planar glass – YAOPI
14, Aluminium frame profile - JIHUA
We KBB specialize in automatic door field for more than 20 years ,supplied automatic revolving door, sliding door , sliding door Operator, medical hermetic door, swing door with higher quality and competitive price.
Up to now, our doors had already got many certificates such as ISO 9001, ISO14001, CE, UL, TGA, GOST, UKAS etc.
20,000 units sliding doors and 2,000 units revolving doors could be provided every year for the airport, hotel, shopping mall, office building projects. The 4 tallest towers in the world including the Khalifa tower in Dubai, The Titanium in Santiago, The global Financial Center tower in Shanghai and The Shard in London installed our doors.
**
