Home > Products > Revolving Door > Revolving doors, china manufacturer, security glass, stainless steel surface
Revolving doors, china manufacturer, security glass, stainless steel surface
- 1000 Unit / Units per Month
- Shanghai Ningbo Tianjin Dalian
Product Details
Place of Origin: | Beijing, China | Brand Name: | KBB | Model Number: | KA023 |
Open Style: | Automatic | Position: | Commercial | Surface Finishing: | Finished |
Type: | Revolving Doors | Door Material: | Aluminum Alloy |
Product Description

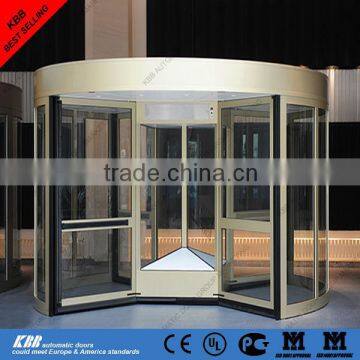

KBB Revolving doors, china manufacturer, security glass, stainless steel surface
* KBB Automatic Door Group is the largest automatic door manufacturer in China, even in Asia, also famous in the world .
* Our Doors had already sold to more than 70 countries in the world, the tallest building in South America called Titanium installed 4 units of our revovling door, others such as Hilton, Marriott, IKEA, the Shard are also our clients.
* Our after sale service team extend all over the world, the supports such as installation, maintenance, malfunction treating could be provided timely and perfectly .
Safety functions:
1, Special Load-Bearing Structure
2, Vertical/horizontal safety switch
3, Anti-squeeze
4, Anti-strike
5, Force-sensitive Control
6, Torque Control
7, Panic breakout system
8, Handicap
9, Night Security Door.
Operation features:
1, Continuous working mode
2, Go/Stop working mode
3, Remote control function
Technical Data:
Power supply : 220VAC±10%,50HZ
Rated current :12VAC,50HZ
Rated power : 600W
Down lights : 400W
High speed adjustment range(revolving door) : 1-4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m.
Ambient temperature : -30.C – 45.C.
Max relative humidity : 90%.
Total weight <1000Kg
Operating noise ≤ 60db (A)
Specifications:
Inner Dia(D) | 1800mm | 2100mm | 2400mm | 2700mm | 3000mm | 3600mm |
Outer Dia (DT) | 1880mm | 2180mm | 2480mm | 2780mm | 3080mm | 3680mm |
Clear height | 2300mm | 2300mm | 2300mm | 2300mm | 2300mm | 2300mm |
Canopy height | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
Total height | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm |
Key Components:
1, Main control unit - SIEMENS
2, Operation program software – KBB
3, Transducer - SIEMENS
4, Drive unit - SIEMENS
5, Gear box - Sewdrive
6, Deceleration belt – CONTITECH
7, Spot light – PHILIPS
8, Detection radar - BEA, Infrared
9, High precision speed/position radar – HENGSTLER
10, Emergency stop button – KBB
11, Handicap button – KBB
12, Curved glass – YAOPI
13, Planar glass – YAOPI
14, Aluminium frame profile - JIHUA
Contact Us
- KBB (Beijing) Trade Co., Ltd.
- Contact nameFrank Han
- Phone86-024-31289888-603
- Address2104 Room,Block E, Fortune Plaza, No.59 Beizhan Road,Shenhe District. Shenyang,Liaoning
