wood door cnc making machining center with ATCUsed for wood doors, cabinet,bookcase etc
CE
CNC woodworking center

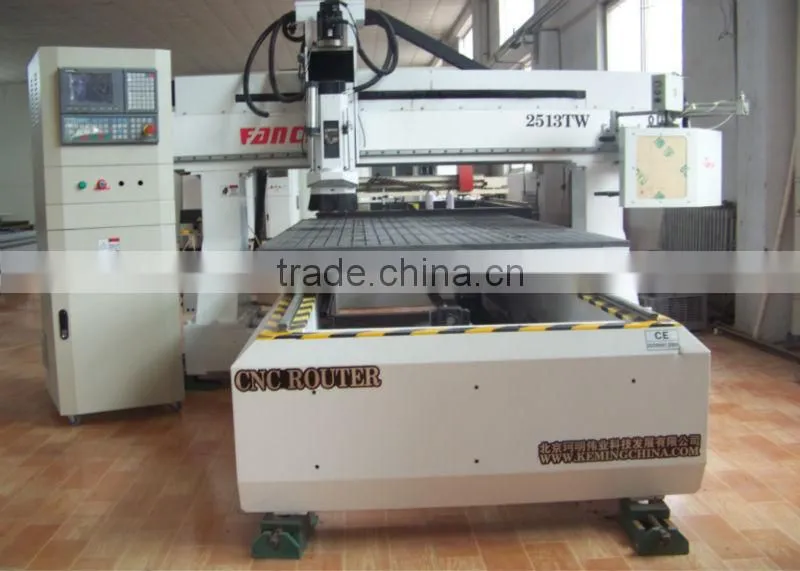

wood door cnc making machining center with ATC

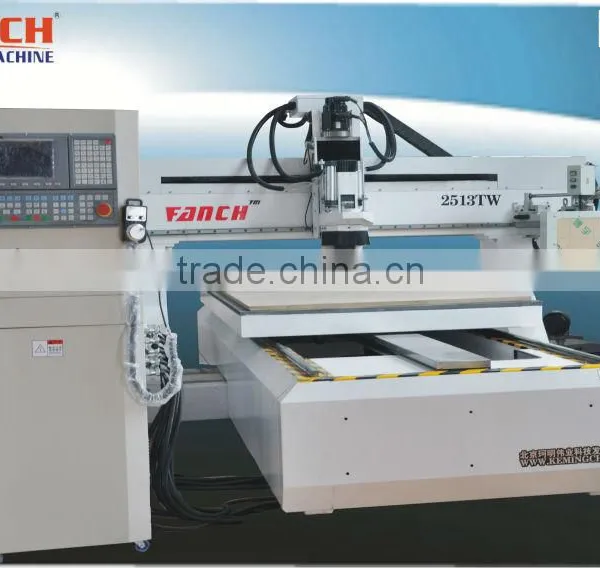

FC-2513TW CNC Router
Scope of application:
Our products have been widely applied in industrial board cutting, mould manufacturing & processing, wooden products processing, building decorating & furnishing, stone, glass, copper, aluminum and advertising products processing, etc.
Table movement feature:
1. Table-moving and Taiwan presion coarse pitch ball and lead screw for movement along all three axis,
ensures steady movement and high working accuracy.
2. The whole machine uses high quality seamless welded steelstructure, the assembly contact surface is used scraping
process, the whole structure high-temperature aging treatment, upright and support plate, using aluminum cast process
that ensures the high stability.
3. Driving rail adopts original Taiwan imported 25mm square lead rail.
4. Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod, high precision transmission
5. Imported high performance transducer, high frequency electronic anti-jamming system.rigid and not deformed.
6. This machine adopts Italian high-speed air-cooled spindle motor, spindle cooling fully guaranteed, can work long time.
7. Use imported Japanese Yaskawa Servo drive system, torque, high precision, fast and stable performance.
8. Use Taiwan Syntec controlling system, good compatibility, compatible with type3 /Artcam /Castmate /Artcut /CAD/
CAM and other design softwares.
9. Can control the completion of multi-dimensional 3D processing, and can do fast, smooth three-dimensional
processing,carving and cutting.
10. Patent design cavate vac-sorb table, minimum adsorb area: 150*150mm, can absorb & clamp.
11. Vac-sorb 5.5kw air-cooling oil free vacuum pump, subatomospheric pressure can reach 0.8Mpa
12. Table is vacuum adsorption countertops which is an international leader technic, made of high strength rigid plastic,
high-absorption edge and strong adsorption of different sizes of materials, density, non-deformation.
13. Auto-oiling lubrication system, easy to operate, greatly improve the life of the various components of the machine.
14.Equip with standard America industrial aviation plugs links, soft metal cable sheath, avoids the cable damage situation
from the press & bump effectively.
15. Cable adopts YC numerical control machine shielding line, can reciprocate eight million times.
Performance parameter
Outer dimension |
2700*3000*2000mm |
Table size |
1340*2500mm |
X,Y axis travel |
1300*2500mm |
Z axis travel |
>300mm |
Max running speed |
60m/min |
Max engraving speed |
30m/min |
Max feed-in height |
300mm |
Resolution |
±0.001mm |
Command code |
G code .uoo .mmg .plt |
Power (not include spindle0 |
4.5KW |
Work voltage |
AC380V/50Hz |
Spindle power |
9.0kw(HSD) |
Spindle rotating speed |
6000-18000rpm/min |
Work mode |
AC servo |
transmission |
Ball screw |
Image in workshop:
