Specifications
CNC router with 4th RotaryWith CE
Rotary
Heavy Duty Structure
CNC router with 4th Rotary
high quality wood engraving machine & equipment
Scope of application:
Widely used in advertising,woodwork processing line,arts and crafts line,metalwork line,can process double-colur board,pvc borad, board,copper,aluminum,fireproofing board and so on.
Features:
The lathe is founded by high-quality steel that ensures the high stability,all the three axises are using imported straight-square rail.
Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
Using high accurate pinion and rack transmission. The highest speed is 18m/min. It can clearly engrave the 1mm small word.
Spindle adopts domestic 4.5KW water-cooling motor, which is very powerful and with little noise. It can work continuely without maintaining.
Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.
Advanced industrial controlling system is compatible to many dictate formats that can operate after accident or next day processing so it is very convenient.
FC-1325A Technology Parameter:
Outer dimension |
2750X3500X1600mm |
X,Y axis travel |
2000X3000mm |
Z axis travel |
>200mm |
Table size |
2040X3500mm |
Max running speed |
18m/min |
Max feed-in height |
150mm |
Resolution ratio |
0.025mm |
Command language |
HPGL,G code.u00.mmg.plt |
Software operating environment |
Windows98/2000/XP |
Power(not include spindle) |
600W |
Work voltage |
Dc220V/50Hz |
Spindle power |
2.2kw |
Spindle rotating speed |
6000-24000rpm/min |
Work mode |
Stepping (rack transmission) |

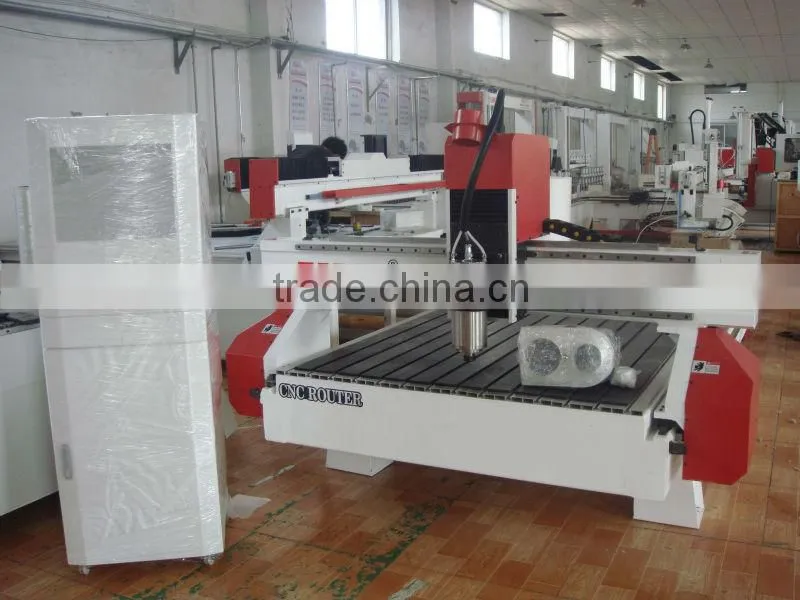

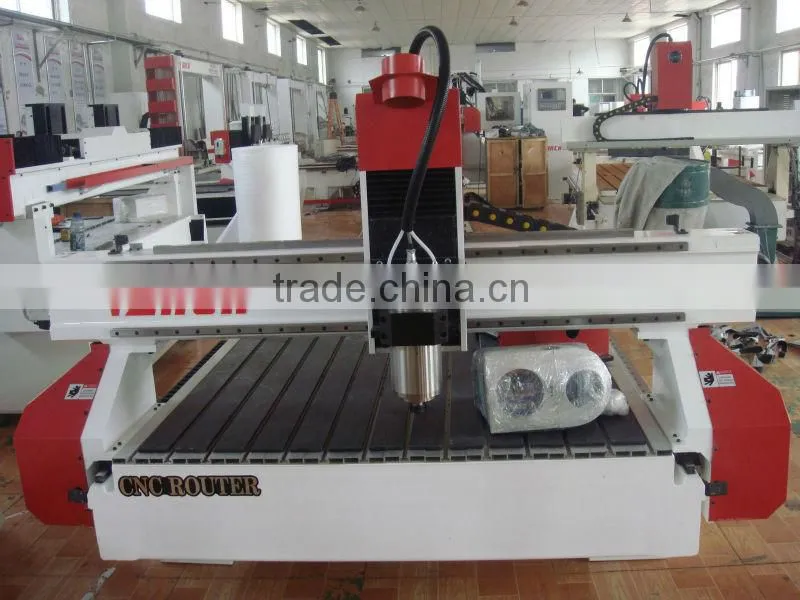

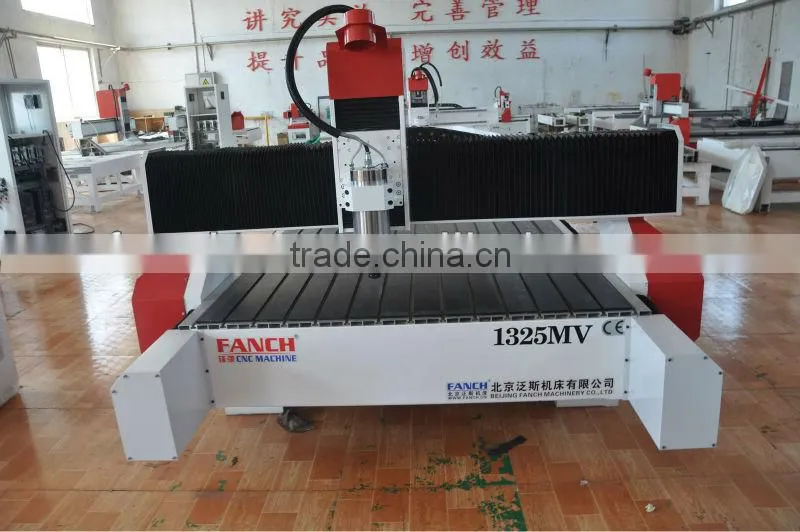

Image in Workshop:
