Product Application

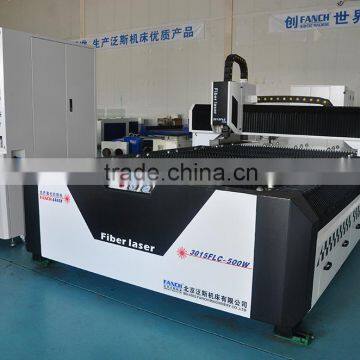

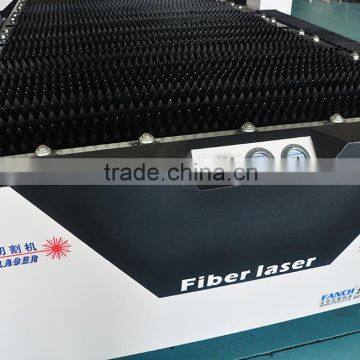

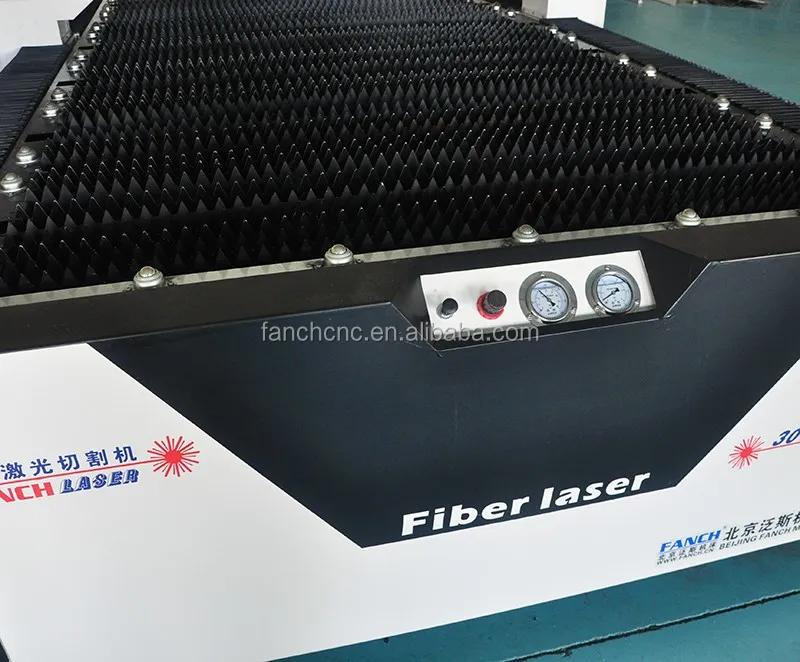

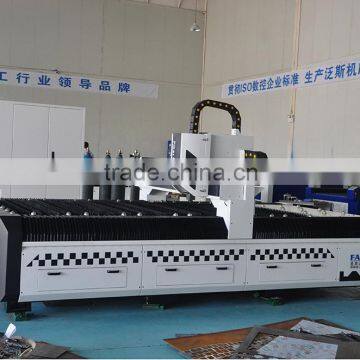

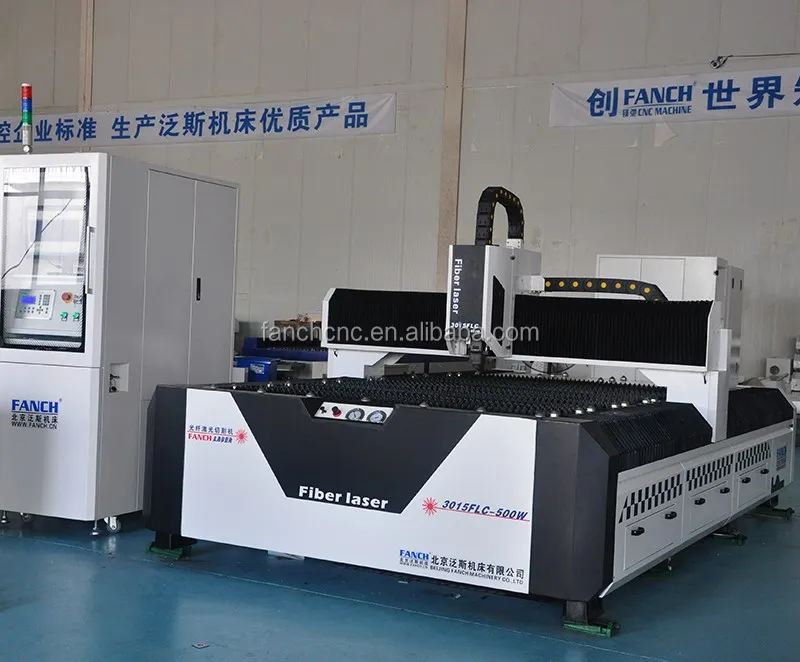

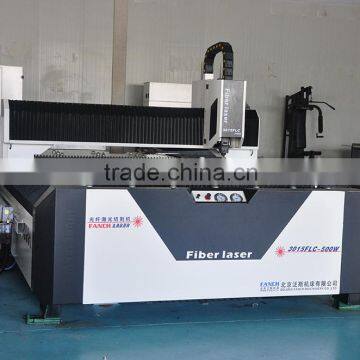

FC-3015FLC fiber laser cutting machine adopts au3tech laser cutting head and Chengdu Leetro control system, combined with the company's own R & D gantry type CNC machine structure, whole machine bed high strength welding, machine frame quenching by 600 degrees temperature to ensure that no deformation, racks and aluminum dual-platform table, the whole machine weight is 1.5 tons, gantry with overall casting, precision machining, good rigidity and stability. Rack and guide rails adopts high precision level, also equipped with dust system, lubrication system and tow feeding device system. This type machine is with high precision, high speed. It can cut max. 3mm carbon steel and max. 2mm stainless steel, with high quality, high brightness, high conversion rate, maintenance-free, reliable, low running costs and so many other advantages.
Application:
Metal sheet processing, metal products, hardware products, precision machinery, auto parts, glasses, jewelry, nameplates, electronics, toys, advertising and other industries.
Main Features
2. Adopt imported APEX (Taiwan) ultra-high precision and high torque gear box, accuracy can be one Arcmin, greatly improves the dynamic performance while ensuring accuracy.
3. Guide Rail: HIWIN(Taiwan) P-level precision level.
4. Rack: HERION (Germany) precision helical rack.
5. Laser cutting head: Au3tech C5, convenient focus, precise alignment, compact and lightweight construction, and match FTC9105 independent capacitive height controller.
6. Controlling system: PC-based motion controller MPC6595 and Control Software Lasercut5.3 of the same manufacturers to design, perfect match, is a good laser cutting control system.
7. Cooling System: CW-6000-type high-precision professional laser chiller, 10286BTU / h cooling capacity of 24 hours of continuous laser to achieve good cooling effect, LED control screen to show temperature statue.
Servo
Name: motor servo
Brand: Yaskawa
Original: Japanese
AV servo, under the power angle closed-loop control, the resistance capacity against load disturbance is improved and the problem of out-of-step is efficiently solved.
Rack
Name: Helical rack
Brand: Fengmao
Original: Taiwan
Helical rack can perfectly meet the gear wheels, less deviation, to make higher precision of the position.
Linear rail
Name: Linear rail
Brand: PMI/HIWIN
Original: Taiwan
High specision linear rail 30mm, can make the max moving speed to 80m/min, precison level is P level.
Chiller
Name: Laser cutting chiller
Brand: S&A
Original: China
Top brand chinese laser chiller, it can help to fast cool down the laser cutting machine make sure 24H continuous work.
Control system
Name: SYNTEC Control system
Brand: SYNTEC
Original: Taiwan
NC studio system is optional.
How to make a FANCH?
● Everything is starting at making a sturdy machine bed. Using 12mm thickness steel slab, Fanch workers cutting it according to the designed size and seamless welding the structure.
● But that is not good enough to make the sturdy bed. The whole structure quenching at 600℃ is necessary to reduce the mutua repulsion between different steel structure parts.

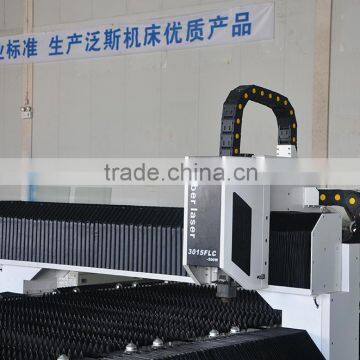

● In order to get the light but firm gantry, Fanch apply one piece casting aluminum. Seamless make the gantry more stable during fast moving.
● ±0.05 mm deviation straightness of machine bed surface can be got by our Germany imported milling machine. This is the root base of working accuracy and long life service.
● Top brand spare parts further make sure the accuracy, stability and long life span of a Fanch machine.
Woodworking machine factory
Located in Tongzhou district, Beijing, Fanch woodworking factory was stablished in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.
Laser cutting machine factory
Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and domestic sales office can be found here.
Pre-sale service
1. Free engineer consultant and feedback in 24 hours.
2. Sample specimens and testing vedio of specified machine are available.
3. Factory visit arrangement.
After-sale service
1. Prompt reply in 24 hours.
2. Engineer on-site installation.
3. Call-in Remote diagnosis.
4. Engineer oversea service.
5. Operation training service.
Customized service
1. OEM/ODM service are available.
2. Free engineer consultant
3. Engineer on-site installation and debugging.
4. Operation training service
