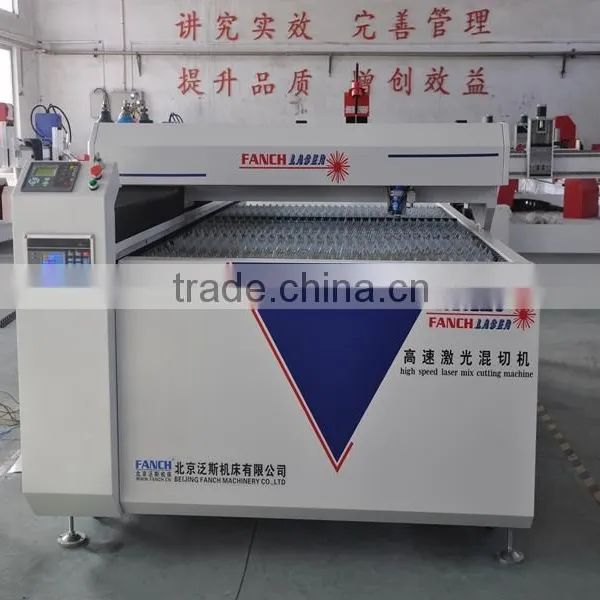

Model: 1325LMC (cutting metal and non-metal)
Cutting range:

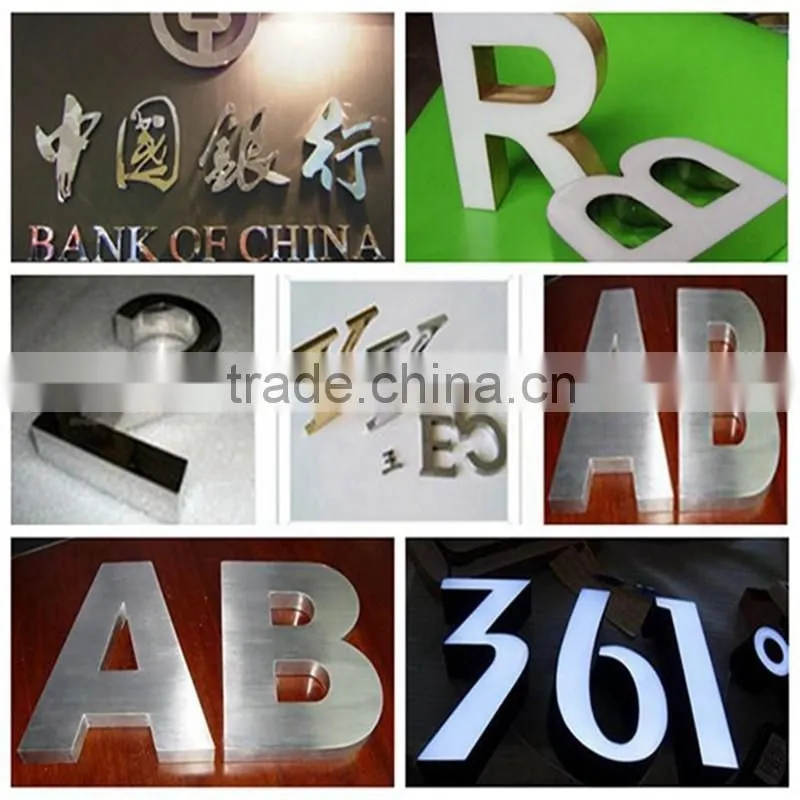

150W CO2 laser tube: wood plate 12mm, acrylic 30mm, stainless steel 1.2mm, carbon steel 2mm.
260W CO2 laser tube: wood plate 12mm, acrylic 30mm, stainless steel 1.5 ~ 2.5mm, carbon steel 4mm.
Features:
1. The structure is welded steel by industrial design and processed precision work after stress relief. These ensured that the lathe with long-term stability, not deformed , stable structure, good rigidity and high dynamic response characteristics.
2. Laser tube, EFR 150W and 260W.
3. X axes adopt Taiwan TBI ball screw, Y axes adopt high accuracy and precision pinion and rack, Herion rack, Taiwan APEC reducer.
4. Japan Panasonic servo.
5. Chengdu Leeto (optional Shenzhen Ruida)control system, Aowei following control system.
Performace parameter:
Laser Wavelength(um) |
10.6 |
Spot Quality(m2) |
<1.2 |
Laser Power(W) |
130 |
Divergence angle(mrad) |
2.5 |
Cooling Type |
Water cooling |
Working Area(mm) |
1300*2500 |
Focal Length(mm) |
5.8~127 |
The Min.Line Width(mm) |
0.3 |
The Max.Speed(m/min) |
30 |
Positioning accuracy(mm) |
±0.05 |
Graphic format supported |
PLT,AI,DXF |
Voltage |
220V (Optional) |
Frequency(HZ) |
50/60 |
Machine Size |
3530*2130*1180 |
Chiller Size |
450*330*650 |
Machine Weight(KG) |
1200 |
Chiller Weight(KG) |
<45 |
Environment |
Clean |
Temperature(℃) |
10~40 |
Humidity |
4 |
Whole Machine Power |
4 |
Security Level |
IP54 |
Laser safety class |
4 Class |
Guarantee & After Sales Service :
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling .
3) Friendly English version manual and operation video CD disc.
4) Engineers can serve abroad
5) Distributor abroad for after service available
To provide you detailed quotation, we need to confirm the following details :
1.which kind of materials will be used on this machine
2.the Max. size of your materials or the working table size you need, also the thickness you want to engrave on the material
3.What is the working voltage and frequency in your country
4.your sample pictures of your product will be helpful to determine the suitable machine for you
