rgb led controller/led controller wifi/wifi dmx controller
led wifi controller
1. led controller with Wifi Function
2. smart home, wifi controller
3. Easy to use, indoor use
4. Remote control distance 50m
5. wifi led controller use iphone or iPAD to control
6. dmx controller with CE&ROHS

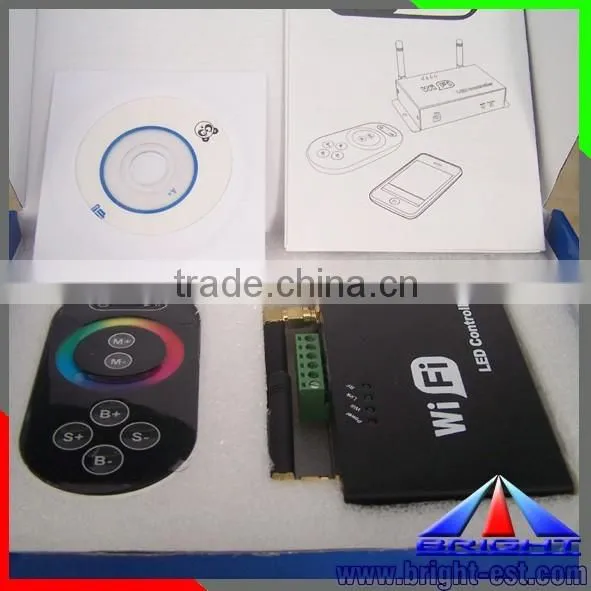

1.Product constitute
1.led WiFi Controller |
It is the core of product, responsible for receive control signal and control LED equipment. |
2. RF remote control |
|
3. A disk |
Remote control technical parameters
Working temperature:-20-60°C
Power supply method:AAA*3
Supply voltage:1.5V*3 led controller
Standby power:0.015mW
Standby current:3uA
Working current:200uA
Emission current:10mA
Remote control distance:about 50m
Standby time:6 month

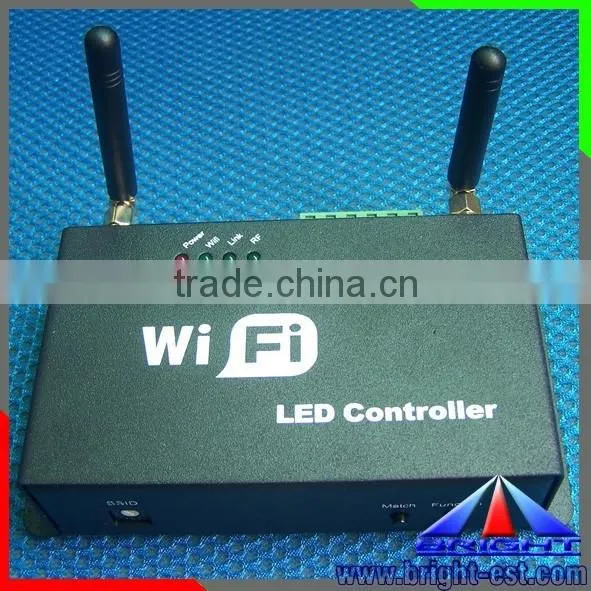

Picture of wifi controller:
Software technical parameters
Name:Dream Color led controller
Runtime platform: Android version support Android system (better one can support Samsung, HTC),
IOS version support IOS system, equipment must have WiFi function.
Language: English
Category: communications
Free, green, no plug-ins
Controller technical parameters
Working voltage: DC5--24V
Output control: SPI signal output
Output current: 4A*3 led controller
Connect mode: SPI signal wires(DATA, CLK)
External dimension: L107*W65*H30(mm)
Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g OFDM(-15dBm)
LED WIFI Master Controller
1. DC5V DC24V DC12V wifi controller
2. Control: RF Remote control , IOS operating system and Android operating sys
4.Dream Color Instruction
This software have Android version and IOS version, according to your mobile phone to choose
to install, below respectively introduce Android version and IOS version install and use method:
Android version install as below:
Open the optical disk can see the Dream Color erection Sequence Click DreamColor.apk to install
Installation complete click
Open application
1.On Off key 2. color disk 3. mode key 4. speed/brightness bar
5.RGB mode LED control window
6.Cold white and warm white mode LED control window
7.Dimmer mode LED control brightness window
8,Dream Color software setting window
Following is control color temperature and brightness two mode page:
CT mode page(cold warm white mixed mode) DIM mode page(dimmer mode)
DC5V DC12V DC24V WIFI LED Controller,WIFI Controller
Applications:RGB LED Strip/RGB LED Module/RGB LED Wall washer light
Our company:
Led controller notes:
1.Supply voltage of this wifi controller is DC12V, never connect to others or AC220V.
2.Wireless Remote Control is powered by DC12V battery, if Stretch the antenna, it would Control better.
3.Lead wire should be connected correctly according to grade that connecting diagram offers.
4.If the load is more, by way of port 2 to connect the power will be better.
5.The led controller is not to overload;
6.Warranty of this product is one year, but exclude the artificial situation of damaged or overload working.
