Specifications

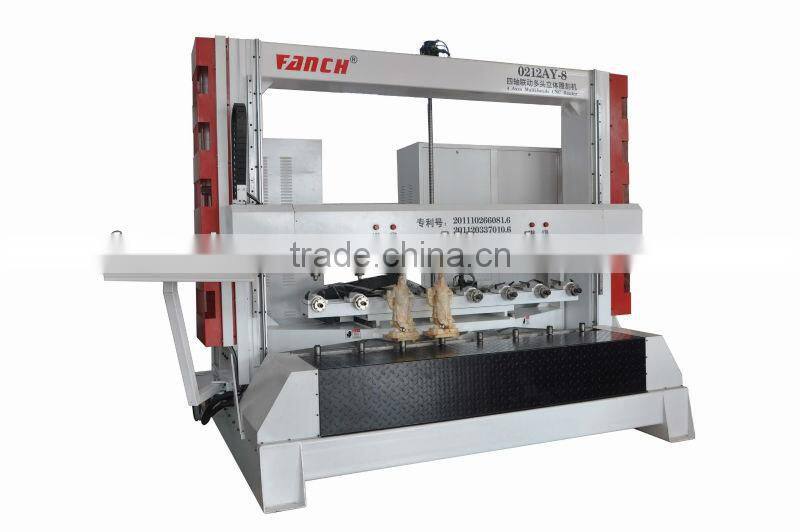

cylinder engraving machine/ 3d small wood carving machine/ wood cnc router machineFC-0212AY-8
NC Studio controller
AC Servo
cylinder engraving machine/ 3d small wood carving machine/ wood cnc router machine
FC-0212AY-8
Processing material:
wood,resin,acrylic,polypropylene,plexiglass,plastic,soft metal,PVC, gypsum,rubber,etc.
Applicable industries:
cylinder relief engraving,wood furniture,technic door and window, sofa leg, chairs, stairs, alumium processing,arts and crafts,musical instrument,etc.
Feathers of the machine:
High Efficiency = One machine replace 36 workers.
High Performance = Four axes linkage control system. .
High Quality = Whole machine imported servo.
High Guarantee = Whole machine International Warranty Service.
1.Unique four-axis linkage design can automatically process complex polyhedron.
2.Domestic2.2KW*8 constant power water-cooled spindle motor, high precision, long life, smooth operation, and good startup performance, little noise and It can work continually without maintaining.
3.Overall thick steel bed, heavy square table support structure, science welding, non-deformed, high precision gantry milling holistic processing.
4.Standard industrial design, the whole machine's connect parts are all industrial cast aluminum to ensure the machine service life.
5.All axes use Taiwan TBI screw rod lead transmission, high precision and long life.
6.Taiwan imported 25mm linear guide, double rows and four lines of ball sliders, heavy loading capacity, smooth operation, high accuracy, and the high-strength high quality steel rails ensure the mechanical accuracy and wearability, rail service life is 10 times higher than the circular rail; imported high precision ball screw, high accuracy under the knife.
7.Adopt high-performance original NCStudio 4 axes control system, with excellent and stable quality, you can control the complete multi-level 4D processing, can be fast, smooth four-dimensional machining, engraving and cutting. And could operate after accident or next day processing so it is very convenient.
8.Good software compatibility, compatible with Type3/ Castmate/UCANCAM and other CAD/CAM designed software.
9.Equip with standard America industrial aviation plugs links, soft metal cable sheath, avoids the cable damage situation from the press & bump effectively.
10.cable adopts YC numerical control machine shielding line, can reciprocate twelve million times.
Performance parameter:
Outer size | 3100*2200*2400 |
Working area | 250 x 1200mm x 8 rotaries |
Max Feed in height | 250mm |
spindle power rate | 2.2KW x 8 |
spindle rotating speed | 6000-24000rmp/min |
Cutter diameter | 3.175 4 6 12.7 |
Drive motor | Servo, srew rod lead transmission |
Working speed | 6m/min |
Working voltage | AC220V/50Hz |
Resolution | 0.025mm |
Work-holding | Pneumatic clamping |
Controller | Ncstudio |
Engraving dictate | G code ,uoo ,mmg ,plt |
Machine Weight | 2.2T |
