Specifications
cnc engraving machine for wood/arcylic/aluminumFC-3520AY
1.Axis of rotation
2.4.5kw water cooling spindle
3AC servo driver
cnc engraving machine for wood/arcylic/aluminum
FC-3520AY
Processing material:
Wood,resin,acrylic,polypropylene,plexiglass,plastic,soft metal,PVC, gypsum,rubber,etc.
Applicable industries:

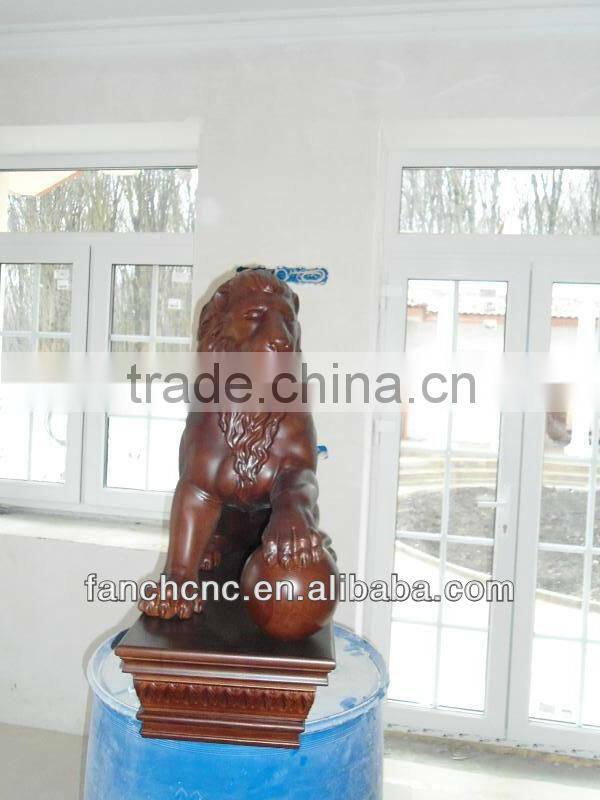

Cylinder relief engraving,wood furniture,technic door and window, sofa leg, chairs, stairs, alumium,arts and crafts,musical instrument,etc.
Feathers of the machine:
High Performance = Four axes linkage control system. .
High Quality = Whole machine imported servo.
High Guarantee = Whole machine International Warranty Service.
1.Unique four-axis linkage design can automatically process complex polyhedron.
2.Domestic 4.5Kw water-cooled spindle motor, high precision, long life, smooth operation, and good startup performance, little noise and It can work continually without maintaining.
3.Overall thick steel bed, heavy square table support structure, science welding, non-deformed, high precision gantry milling holistic processing.
4.Standard industrial design, the whole machine's connect parts are all industrial cast aluminum to ensure the machine service life.
5.All axes use Taiwan TBI screw rod lead transmission, high precision and long life.
6.Taiwan imported linear guide, double rows and four lines of ball sliders, heavy loading capacity, smooth operation, high accuracy, and the high-strength high quality steel rails ensure the mechanical accuracy and wearability, rail service life is 10 times higher than the circular rail; imported high precision ball screw, high accuracy under the knife.
7.Adopt high-performance 4 axes control system, with excellent and stable quality, you can control the complete multi-level 4D processing, can be fast, smooth four-dimensional machining, engraving and cutting. And could operate after accident or next day processing so it is very convenient.
8.Good software compatibility, compatible with Type3/ Castmate/UCANCAM and other CAD/CAM designed software.
9.Equip with standard America industrial aviation plugs links, soft metal cable sheath, avoids the cable damage situation from the press & bump effectively.
10.Cable adopts YC numerical control machine shielding line, can reciprocate twelve million times.
Performance parameter:
Outer size |
3000*1200*1200 |
Working area |
350 x 2000mm |
Max Feed in height |
350mm |
spindle power rate |
4.5KW |
spindle rotating speed |
6000-24000rmp/min |
Cutter diameter |
3.175 4 6 12.7 |
Drive motor |
Servo, srew rod lead transmission |
Working speed |
6m/min |
Working voltage |
AC380V/50Hz |
Resolution |
0.025mm |
Work-holding |
Chuck clamping |
Controller |
Ncstudio |
Engraving dictate |
G code ,uoo ,mmg ,plt |
Machine Weight |
1.5T |
