30hp china variable frequency screw air compressor with tank
Advantages:
1.Germany GU air end,larger air delivery,lower noise.
2.Adopts world-renowned components,such as Siemens electronics from Germany,MANN filters from Germany,Danfoss pressure sensor from Denmark,etc. contribute to guarantee the air compressor longer service life.
3.Diameter of pulley for air end and electric motor is same,1:1 transmission ratio, lower energy ,higher efficiency.
4.Intelligent controller and multi-language LCD keep the outstanding safety performance.
5.Conform to ISO9001 and energy saving certification,etc.
Technical Parameters
| Model | BJ-30 | |||||
| Air flow Capacity | m3/min | 3.8 | 3.6 | 3.2 | 2.3 | |
| Working pressure | Bar | 7 | 8 | 10 | 13 | |
| Motor power | KW | 22 | ||||
| HP | 30 | |||||
| Noise | dB(A) | 65±2, measured according to the international GB/T4980-2003 standard | ||||
| Outlet Diameter | mm | 1" | ||||
| Cooling method | Air cooling | |||||
| Driven method | Belt driven | |||||
| Oil content of discharged air | ppm | Less than 3 ppm | ||||
| Motor | Pressure | Mpa | 0.1033 | |||
| Rotation speed | rpm | 2945 | ||||
| Starting method | Y-Δ start | |||||
| Protection class | IP54 | |||||
| Insulation class | F class | |||||
| Voltage | V/Ph/Hz | 380V/3Ph/50Hz as standard, also can be changed according to customer's requirements. | ||||
|
Dimension (mm) |
L | 1150 | ||||
| W | 900 | |||||
| H | 1380 | |||||
| Weight | Kg | 600 | ||||

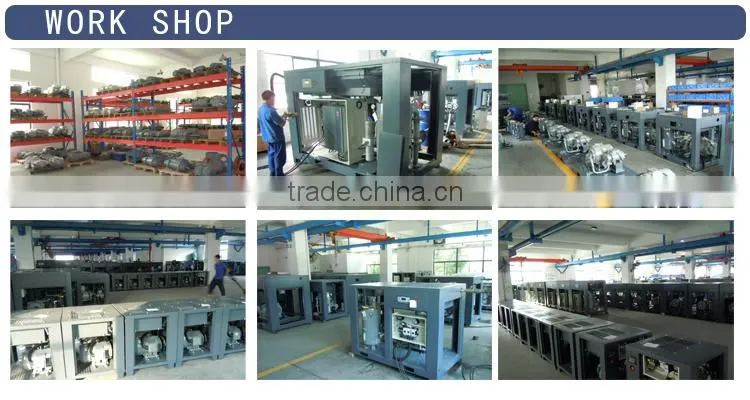

One of the best Compressor Manufacturer in China.
Concentrating on Screw air compressor ,energy-saving research and development.
Committing to be a good example of manufacturing high quality compressors.
1.Engineers available to service machinery overseas.
2.Sales engineers provide specific reply within 24 hours when the customer has after- sales problem until it’s solved.
3.Guarantee period is 1 year for the whole machine
(except maintenance consumables)
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q3: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q4: What about product package?
A5: We pack our products strictly with standard seaworthy case.
Q5: What about the voltage of products?
A6: Yes, of course. The voltage can be customized according to your requirement.Such as 220V/400V/415V/6KV/10KV are available
Q6: Which payment term can you accept?
A7: T/T and L/C
Q7: How long will you take to arrange production?
A8: 380V 50HZ we can delivery the goods within 10 days. Other electricity or other color we will delivery within 30 days
Q8: Can you accept OEM orders?
A9: Yes, with professional design team, OEM orders are highly welcome.
