Power Source: DC
Connection Mode: wiring
Oscillation frequency: 1000hz
Controled Method: IR remote

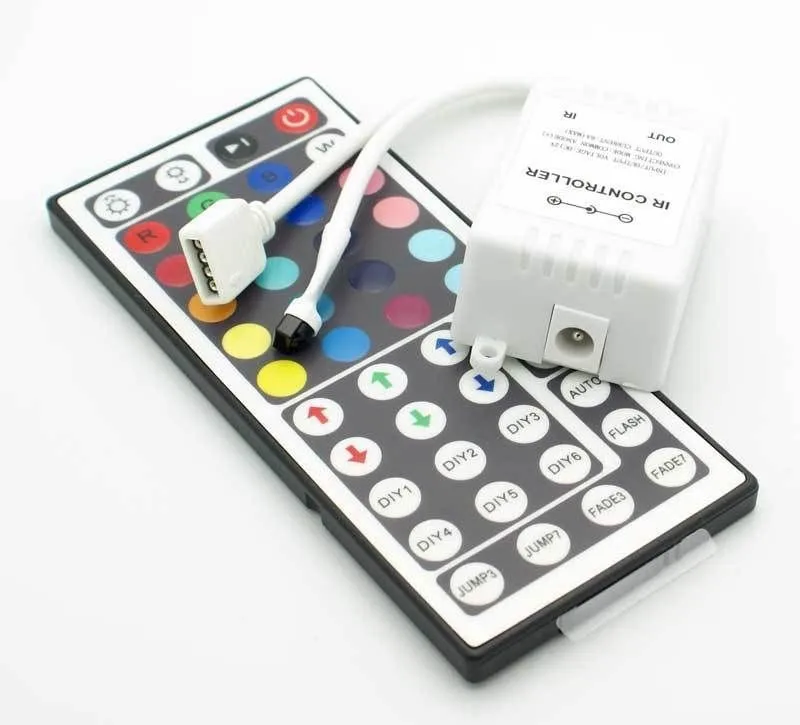

LED Controller 44-key IR + Remote Control
Package includes:
-LED Controller 44-key IR Remote Control.
The IR remote comes with 20 pre-programmed static colors, On/Off , Brightness +/- and color/pattern DIY buttons.
| Supply voltage |
DC12V |
| Rated Output Current |
<6A ( 2A 3 channel) |
| Output power |
<72W |
| Working temperature |
-20-60 C |
| Size |
L63 W35 H22mm |
| Net weight |
85g |
| Output |
Three CMOS drain- open channels |
Specifications:

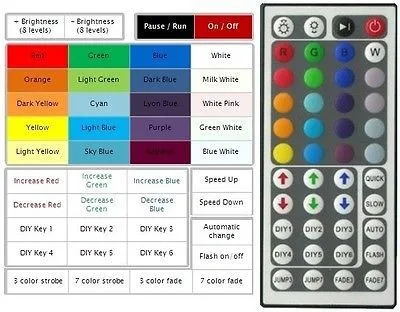

The table below specifies functionality of each button.
| Brightness + (8 steps) |
Brightness - (8 steps) |
Pause/Run |
On/Off |
| Static red |
Static green |
Static blue |
Static white |
| Static orange |
Static light green |
Static dark blue |
Static milk white |
| Static dark yellow |
Static cyan |
Static lyons blue |
Static white pink |
| Static yellow |
Static light blue |
Static purple |
Static green-white |
| Static light yellow |
Static sky blue |
Static brown |
Static blue white |
| Increase red |
Increase green |
Increase blue |
Speed up |
| Decrease red |
Decrease green |
Decrease blue |
Speed-down |
| DIY key1 |
DIY key2 |
DIY key3 |
Automatic change |
| DIY key4 |
DIY key5 |
DIY key6 |
Flash on and off |
| 3 color jumpy change |
7 color jumpy change |
3 color fade change |
7 color fade change |
