Export CE Certification Mini Semi Electric Stacker Forklift

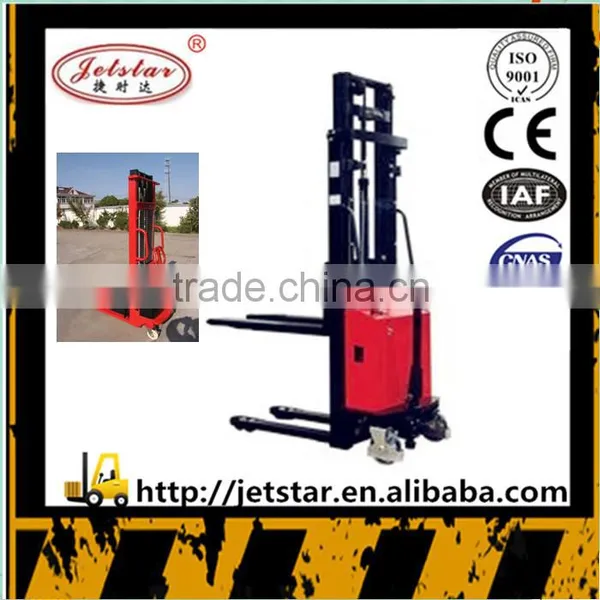

Export CE Certification Mini Semi Electric Stacker Forklift thumbnail-1

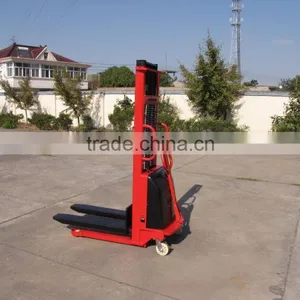

Export CE Certification Mini Semi Electric Stacker Forklift thumbnail-2
Export CE Certification Mini Semi Electric Stacker Forklift thumbnail-3
Export CE Certification Mini Semi Electric Stacker Forklift photo-1

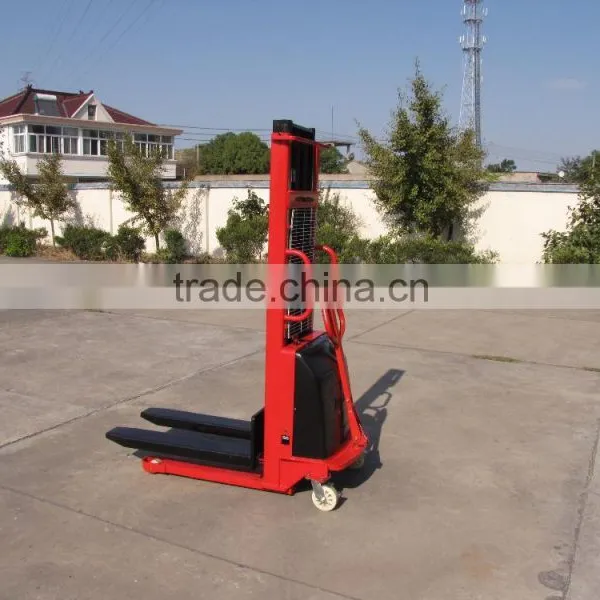

Export CE Certification Mini Semi Electric Stacker Forklift photo-2

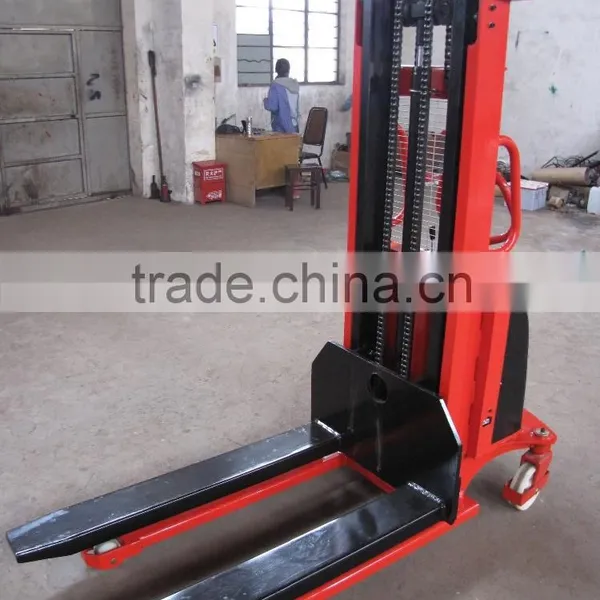

Export CE Certification Mini Semi Electric Stacker Forklift photo-3
US$ 1,000 - 3,100 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Jetstar
Contact Supplier Request Quote Chat Now
Taizhou Jetstar Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghia
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Jetstar
Model Number CCTD 15
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1000kg
Max. Lifting Height 1600mm
Min. Lifting Height 950mm
Fork Length 1150mm
Fork Width 160mm
Overall Dimensions 1400*950mm
Certification CE/ISO9001
After-sales Service Provided Overseas third-party support available

Export CE Certification Mini Semi Electric stacker forklift

Product Description

Export CE Certification Mini Semi Electric stacker forklift

this kind of stackers are designed to operate in narrow passage and limited space, and ideal facilities to load/unload and stack goods in stacking warehouses, supermarket and workshop etc. These trucks can be moved and operated easily and swiftly, with similar function to the electric stackers.

.





Specifications

1high quality hydraulic pump station and seal ring

2.Hea qy-duty mast material

3.C-type steel is used on the mast

4.adjust long time working and no power working

4.Steady lifting falling,speed can be control





Pictures

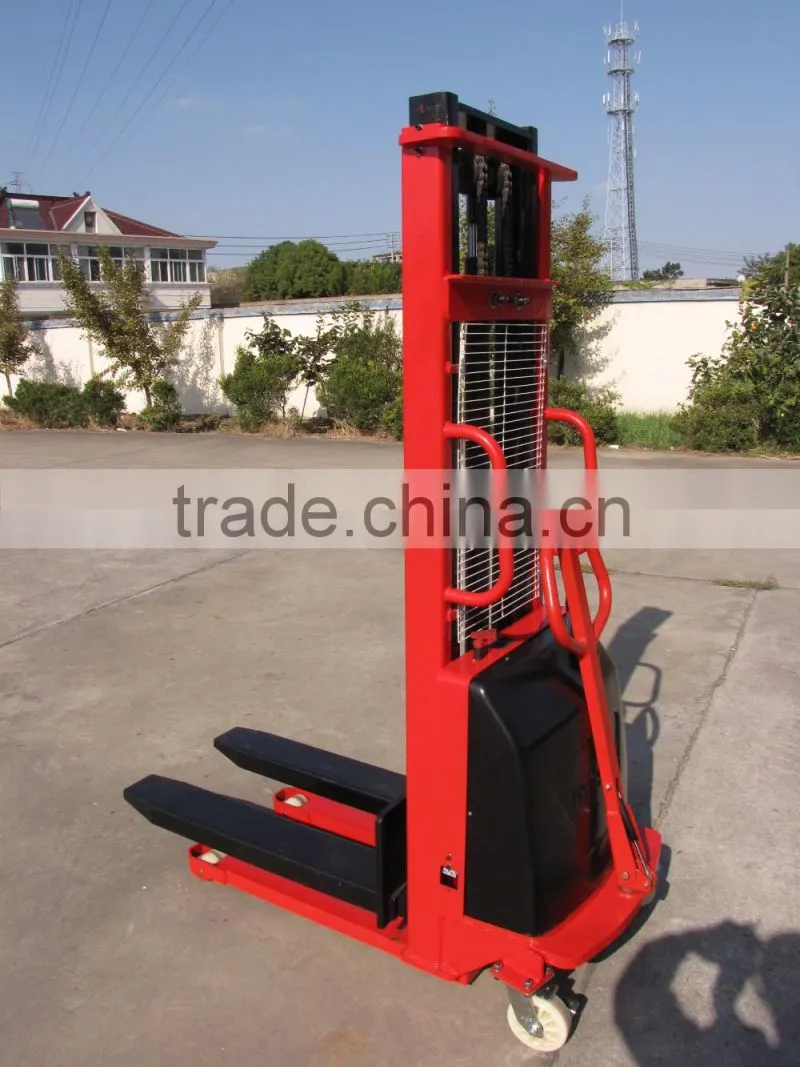

 Export CE Certification Mini Semi Electric stacker forklift

Technical Data



Model

Unit

CTD10

CTD12

CTD15

Rated load capacity

kg

1000

1200

1500

Load center

mm

600

600

600

Std. type lifting height (max)

mm

1600

Fork min. height

mm

90

90

90

Turning radius

mm

1370

1370

1420

Fork length

mm

350

350

350

Axis space

mm

1225

1225

1275

Overall length

mm

1725

1725

1775

Overall width

mm

870

870

920

Overall height

mm

1965

Std. Max lifting height

mm

1965

Standard fork

mm

1000×160×60

1000×160×60

1000×160×70

Fork overall width

mm

560

560

560

Fork individual width

mm

240

240

240

Lifting speed

mm/s

80/130

80/130

80/130

Lowering speed

mm/s

110/90

110/90

110/90

Braking type



Foot Braking

Balance wheel dimension

mm

Φ180×50

Φ180×50

Φ200×50

Loading wheel dimension

mm

Φ80×70

Φ80×70

Φ80×70

Lifting motor

kw

1.6

1.6

1.6

Battery(Voltage/Capacity)

V/Ah

12/120

12/120

12/150

Weight

kg

400

430

450
