240W Advertising Programmable Time Led Light Controller Tc420US$ 1 - 5MOQ: 1 Piece
LED Strip Programmable time led controller
Summarization
Here is an upper computer in the programmable time controller to make the load output change over time, the customer may customize schedule mode they want through the upper PC. Then through the USB port to download required schedule to the controller.The upper PC in addition to the function of editing schedule mode ,it also can be setup time for the controller because of synchronous clock function of upper host .If user want to see the schedule mode effect after editing , they can use fast sowing function of upper . Because there is no delete function of the upper host ,so the mode name display space will come into blank as long as you execute delete .This controller can control load of led changing effect no more than five channels .And it can be used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.
Technical parameters
1.Working temperature: -20-60℃
2. Supply voltage: DC12V
3.Static power consumption: < 0.5W
4. Net weight: 200g
5. Gross weight: 300g

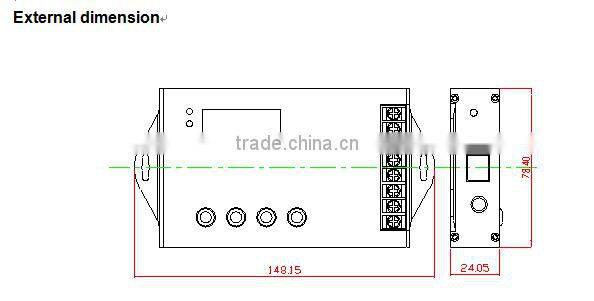

6.External dimension: 120MM*69MM*24MM
7. Packing size: 169MM*135MM*53MM
8.Output: 5 channel
9. Maximum output current: 20A

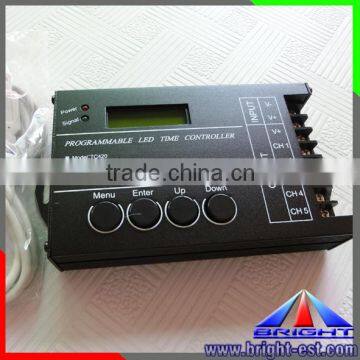

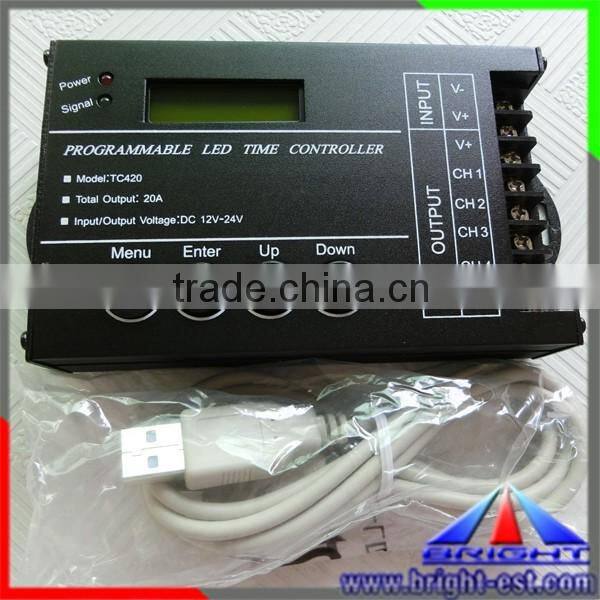

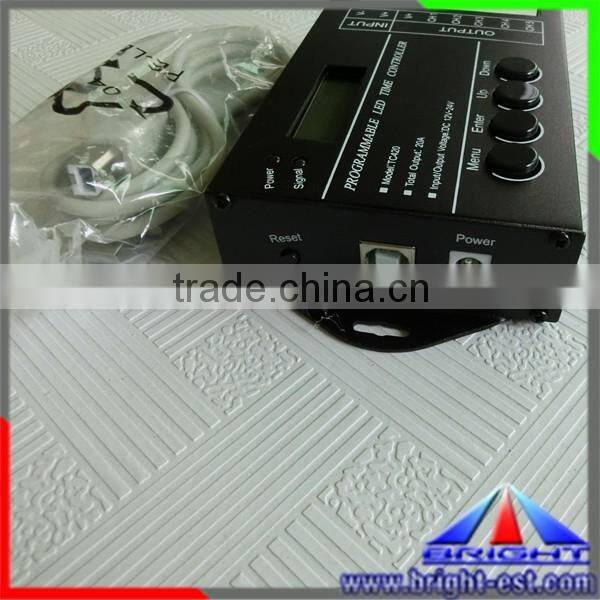

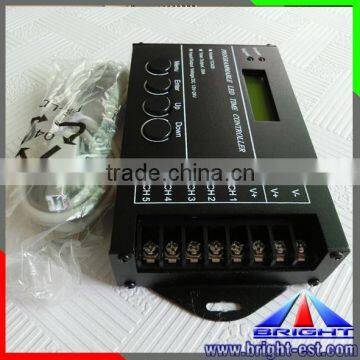

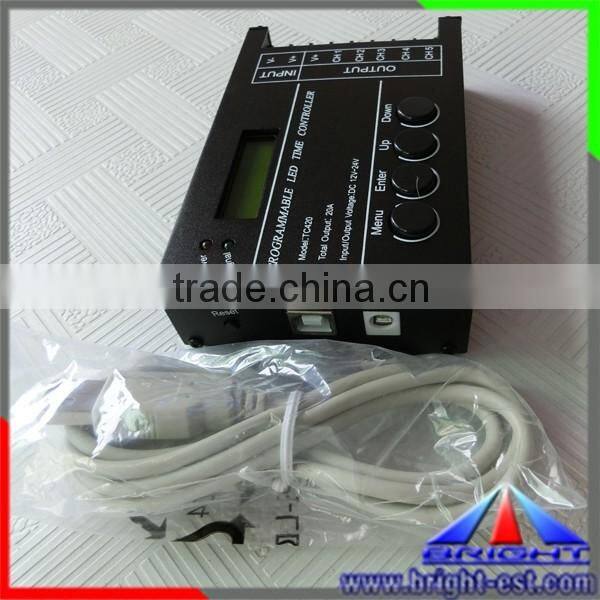

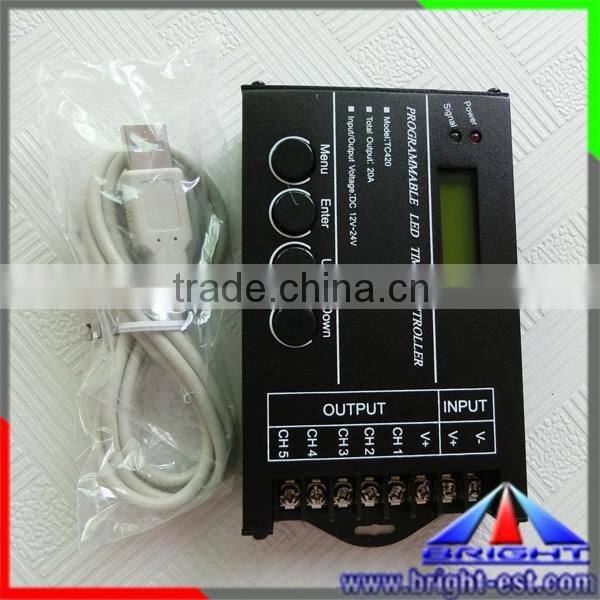

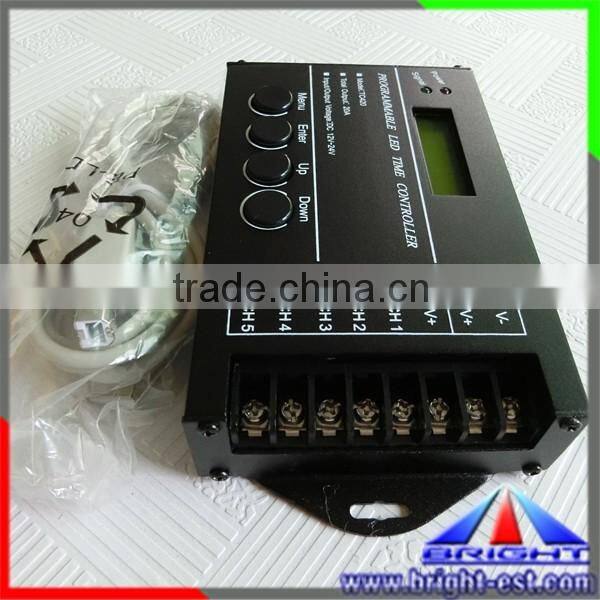

Time controller Pictures

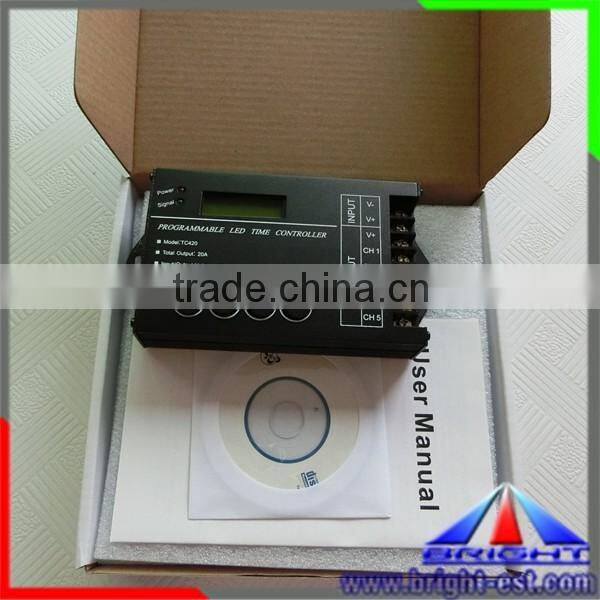

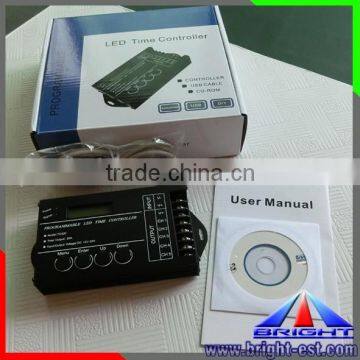

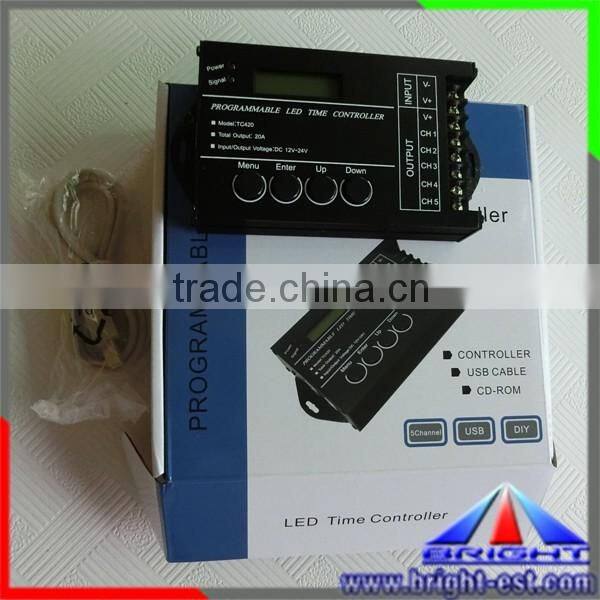

Packing
