Led Touch Panel Controller, Led Wall Install Touch Panel RGB Controller With CE ROHS

Led Touch Panel Controller, Led Wall Install Touch Panel RGB Controller With CE ROHS thumbnail-1
Led Touch Panel Controller, Led Wall Install Touch Panel RGB Controller With CE ROHS thumbnail-2
Led Touch Panel Controller, Led Wall Install Touch Panel RGB Controller With CE ROHS thumbnail-3
Led Touch Panel Controller, Led Wall Install Touch Panel RGB Controller With CE ROHS thumbnail-4
Led Touch Panel Controller, Led Wall Install Touch Panel RGB Controller With CE ROHS photo-1
Led Touch Panel Controller, Led Wall Install Touch Panel RGB Controller With CE ROHS photo-2
Led Touch Panel Controller, Led Wall Install Touch Panel RGB Controller With CE ROHS photo-3
Led Touch Panel Controller, Led Wall Install Touch Panel RGB Controller With CE ROHS photo-4
US$ 1 - 4 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Bright LED Controller
Model Number:
BG-SZ100-TOUCH LED Controller, BG-SZ100-TOUCH LED Controller
Use:
Universal
Contact Supplier Request Quote Chat Now
Shenzhen Bright Technology Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Bright LED Controller
Model Number BG-SZ100-TOUCH LED Controller, BG-SZ100-TOUCH LED Controller
Use Universal
Place of Origin Guangdong, China

RF LED Controller,Panel led controller,RGB led controller

Introduction:

RF touch controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as touch remote control, easy connection and simplicity to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects through wireless touch remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

RF wireless touching rgb led controller

1.DC12V-24V,

2.6A/channel, R,G,B 3 channel,

3.with RF touch remote panel,

4.CE & RoHS

5.RF wireless touching rgb led controller.

6.Both Brightness and speed are adjustalbe

Technical Parameters:

 Working temperature

-20-60°C

Supply voltage

12V~24V

0utput

3 channels

Connecting mode

common anode

External dimension

L127*W41*H32 (mm)

Packing size

L138*W131*H35 (mm)

Net weight

270g

Gross weight

310g

Output gray

256 levels (RGB each)

Output current

<6A(each channel)

Output power

12V:<216W, 24V:<432W

Frequency of RF remote control

433.9MHz

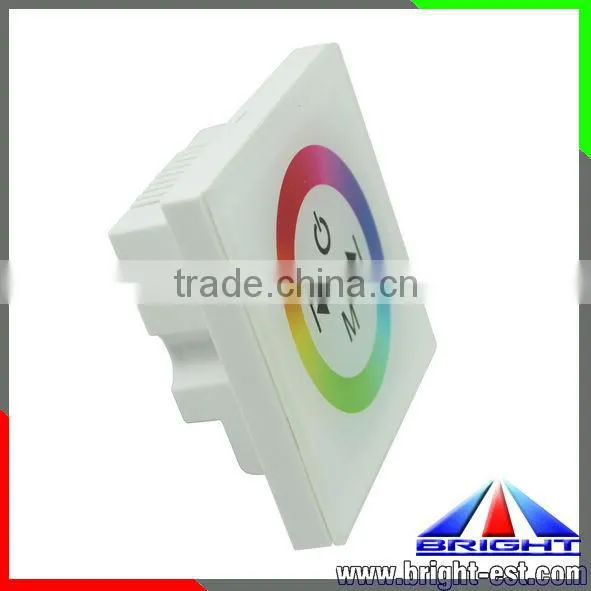

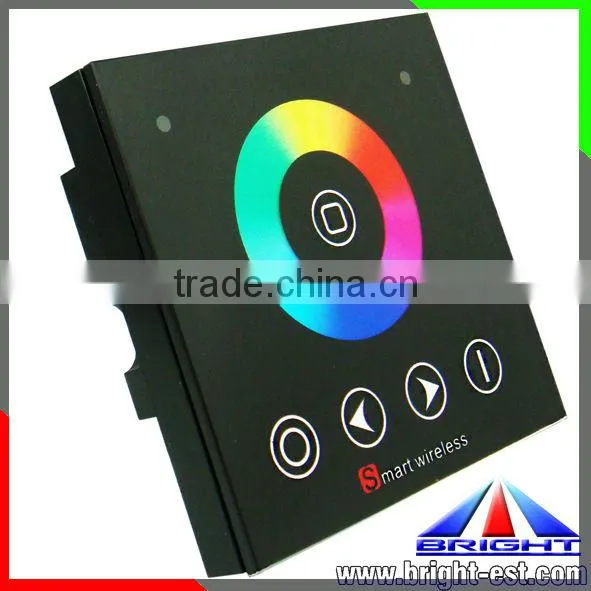

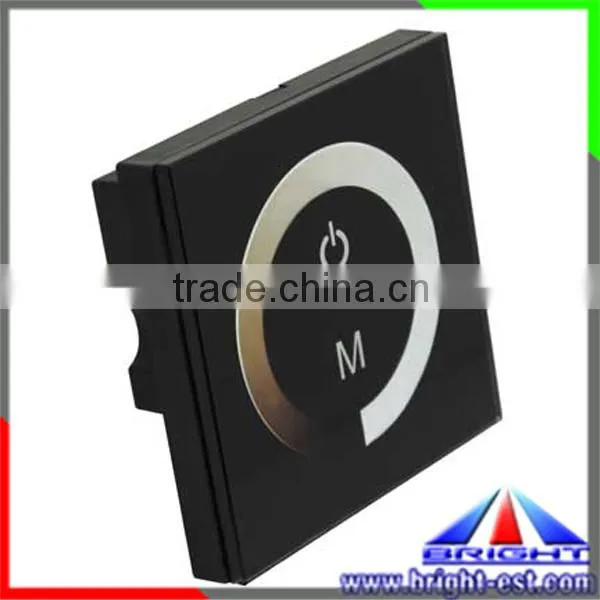

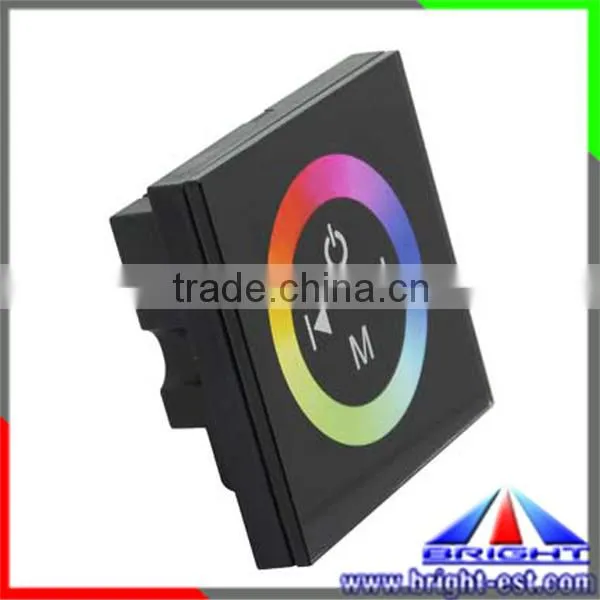

Wireless touch controller picture:

led touch panel controller, led wall install touch panel RGB controller with CE ROHS



led touch panel controller, led wall install touch panel RGB controller with CE ROHS



led touch panel controller, led wall install touch panel RGB controller with CE ROHS



led touch panel controller, led wall install touch panel RGB controller with CE ROHS



led touch panel controller, led wall install touch panel RGB controller with CE ROHS

Trade term:

1. Payment:Paypal,T/T,Western Union.

2. Production lead time for 3-5days

3. MOQ:1pcs

Our Service:

1. Your inquiry related to our products and prices will be replied in 24hours.

2. OEM and ODM, any your customized controller we can help you design.

Our company:

 led touch panel controller, led wall install touch panel RGB controller with CE ROHS

Notes:

1. Supply voltage of this product is DC12~24V, never connect to other voltage.

2. Lead wire should be connected correctly according to grade that connecting diagram offers.

3. This product is not to overload.

4. Warranty of this product is one year, but exclude the artificial situation of damaged or overload working.

express delivery:

led touch panel controller, led wall install touch panel RGB controller with CE ROHS

Payment Method:

TT, paypal, Western Union

Any question, please don't hesitate to contact me.(Sophie-Tuo)
