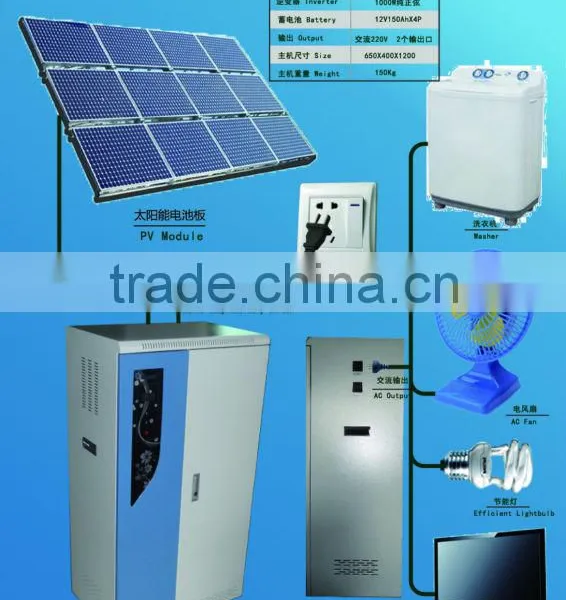

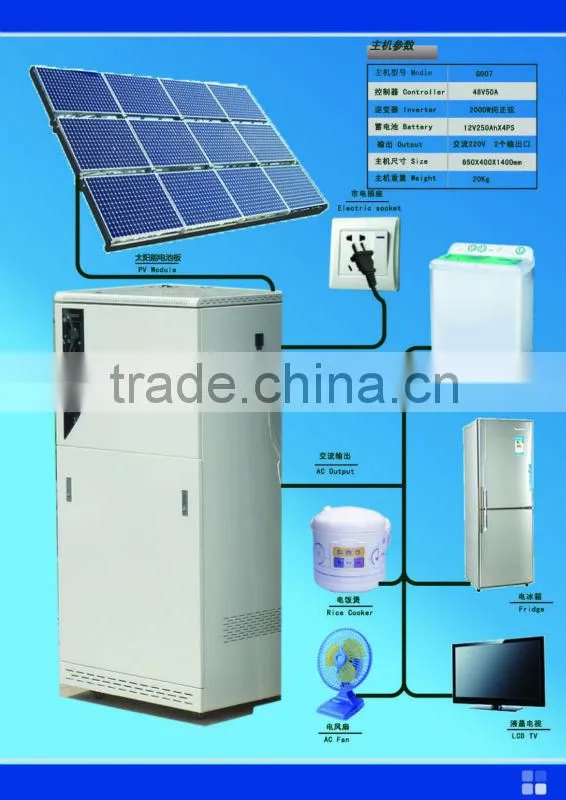

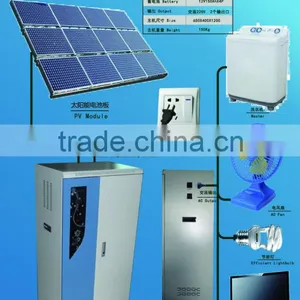

Name: Home Application and Normal Specification Solar Power System
Brand: jiuhua
SKU: 110577831

ALL CATEGORIES

Technical data:				Load reference:
Item No.			INFI-G009	Load reference:
Capacity			1000W	Name of Load	Power(W)	Quantity	Working Time per Day (H)	Working Days
System voltage			24VDC	Energy-saving lamp	11W	5	8	2 days
Best output power everyday			2500WH	Elec-fan	25W	3	8
Inverter	Output wave		Pure sine wave	water pump	200W	1	1
	Output voltage		AC240V	other	200W	1	2
	Output frequency		50HZ
	Output current		4.16A(240V)
	Precision of output voltage		±3%
	Precision of output frequency		±0.1%
	False output wave of AC		<3%
	Overload ability		120%,30 seconds
	Invert efficiency		>85%
controller	LCD display		24V60A
Solar panel	Pmax		250W*4pcs
	Vmp		30V
	Imp		8.3A
Battery	Capacity		12V150AH*4pcs
water pump	head: 12m(max); flow: 20L/min(max)
others	brackets and Cables (50m)
Package data:
Part	Size (LWH mm)	Weight(kg)
Power box	7255251300	60
Solar panel	17501100370	120
Solar panel bracket	2160150150	40
Battery	600600400	200

Home Application and Normal Specification Solar Power System

Product Details
