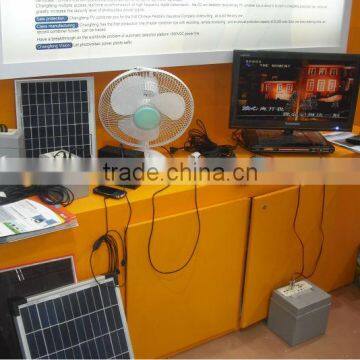

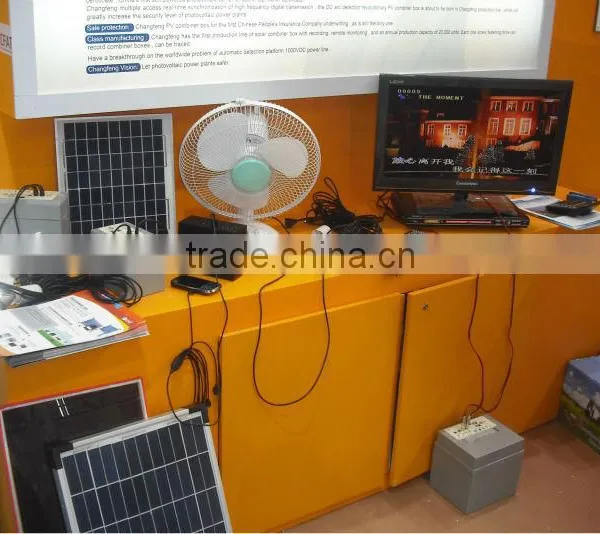

RS-12 60 DC solar lighting system

Specifications

Solar power system
Solar power system is a kind of energy-saving and environmental protection product. The working principle i

Solar power system

Solar power system is a kind of energy-saving and environmental protection product. The working principle is: Solar panels absorb sunshine and transfer into electricity, then store in and built -in battery, Power load,such as lamp ,TV,DVD Fan ,etc.

Main Feature

1.Solar panel :Using Mono/Poly silicon solar cell ,encapsulated with toughtened glass,Lifespan can up to 25 years

2.Rechargeable battery :matintenance -free ,led -acid batttery

3.Control system:Design for solar system,has over-charger & over -discharged protection function

4.Controller:protect battery and load

5.Statement:data only for reference

Advantage:

*Proferssional design for home

*High efficiency & reliability

*When the equipment shorting out ,overload and overdischarge or overcharge ,the system will automatically protec the function

*Excellent compatibility

*Excellent Adaptability

*Engineered to high standards

*Guaranteed durability

*The solar power system structure is simple and its application effect is mutifunctional ,Suitable for home use

Specification of the solar lighting kit :

Model		RS12-60
Rated Charging Current		2A
Rated Discharge Current		12.5A
Rated Working Voltage		12V
Float Charge Voltage		14V
Low-voltage Protection		10.7V
USB Port		5V 500mA
Working Temperature		-10°C~50°C
Solar Panel Voltage		≤25V
Panel Power		10W
BAT. Low Recovery		11.5V
No-load Loss		≤8mA
Controller		12v5a
battery		Lead acid battery 12v7ah
Output Voltage		3*12v outports+1 USB outport
Charging time		Two days
Use time 3w LED bulb		12hrs
package		230*160*115  3.8kgsolar generator panel:390*254*18
20ft container		3500sets
Accessories			QTY
1	18V/10W Solar panel(4m cable with DC plug)		1pc
2	12V/3W LED LAMP(4m cable with DC plug)		1pc
3	10 heads mobile charger		1pc
4	DC wire		optional
5	12v 2A  electricity digital charger		optional
6	3W USB Fan		Optional
7	10W DC Fan		Optional
	Minimum qty 100pcs
