Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > 72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip

72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip

72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip thumbnail-1
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip thumbnail-2
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip thumbnail-3
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip thumbnail-4
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip thumbnail-5
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip thumbnail-6
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip photo-1
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip photo-2
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip photo-3
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip photo-4
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip photo-5
72led/m 5630 Rigid Led Bar,Aluminum Profile 5630 Led Strip photo-6
US$ 1 - 8.8 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
smd 5630 led
Type:
LED Bar Lights
Input Voltage(V):
12v
Contact Supplier Request Quote Chat Now
Shenzhen Bright Technology Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source smd 5630 led
Type LED Bar Lights
Input Voltage(V) 12v
Lamp Power 24w
Lamp Luminous Flux(lm) 2050-2300lm
Color Temperature(CCT) white
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 500000
Lamp Body Material Aluminum
Certification CE
Emitting Color Other, White, White
Place of Origin Guangdong, China
Brand Name bright 5630 rigid led bar
Model Number BG-1707-5630-60 led bar

72led/m 5630 rigid led bar,Aluminum profile 5630 led strip

FEATURES

1.Work voltage DC12V/24V

2.Working current ( one meter): 400mA/600mA

3.Standard length: 1meters/pc.

4.PCB Width: 10mm,12mm

5.Rigid strip, cuttable every 3/6leds.

6.Available Color: White, Warm White.

7.White PCB are available.

8.SMD5630, 60LEDs/meter 5630 LED Bar

9.Sign chip or 3 chips LEDs are available.

10.Beam Angle: 120 degree Linear SMD5630 LED Bars

11.Light decay: Less than 5% after 1000 hours constant work.

12.Protect range: non-waterproof or waterproof IP65.

13.Can be waterproof with silicon cover.

14.Can be waterproof with nanomaterials coating.

15.Life Span: 50,000-80,000 hours.

16. Hight Lumen:2400Lm/m

Specifications

Product NO.

LED TYPE

LED Qty.

Voltage

Current

Luminous Flux(lm)

Power

Color

PCB Material

IP Grade

View

 Angle

Size:mm

BG-1701-3528-60

SMD3528

60Pcs/m

12V DC

0.4 A

300-350

9.6 W

Single color

FR-4

No

120°

1000*8*4

BG-1702-3528-60

SMD3528

60Pcs/m

12V DC

0.8 A

290-335

9.6 W

Single color

FR-4

No

120°

1000*10*7

BG-1702A-3528-60

SMD3528

60Pcs/m

12V DC

0.8 A

275-325

9.6 W

Single color

FR-4

IP65

120°

1000*10*7

BG-1703-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

840-870

14.4W

Single color /RGB

FR-4

No

120°

1000*12*4

BG-1704-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

830-860

14.4W

Single color /RGB

FR-4

No

120°

1000*12*7

BG-1704A-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

810-840

14.4W

Single color /RGB

FR-4

IP65

120°

1000*12*7

BG-1705-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

970-980

17.5W

Single color /RGB

MCPCB

No

120°

1000*8*4

BG-1706-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

930-950

17.5W

Single color /RGB

MCPCB

No

120°

1000*12*20

BG-1706A-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

910-940

17.5W

Single color /RGB

MCPCB

IP65

120°

1000*12*20

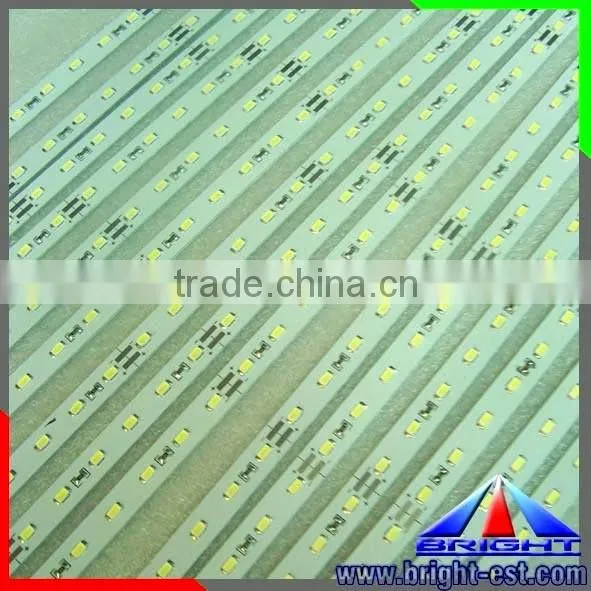

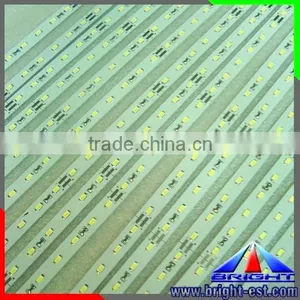

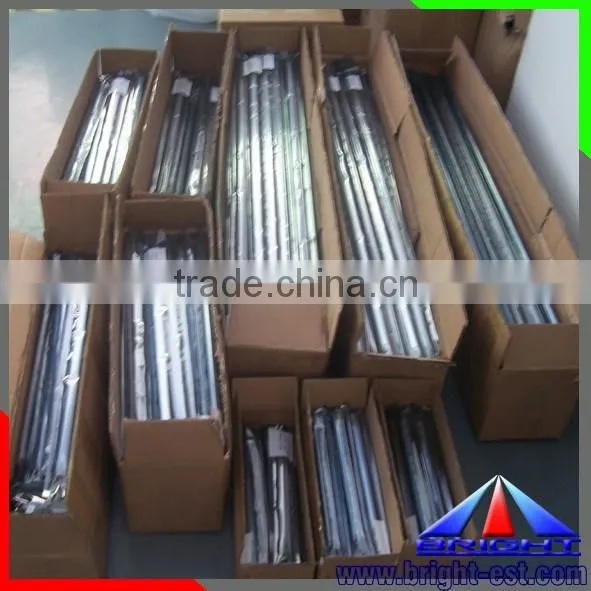

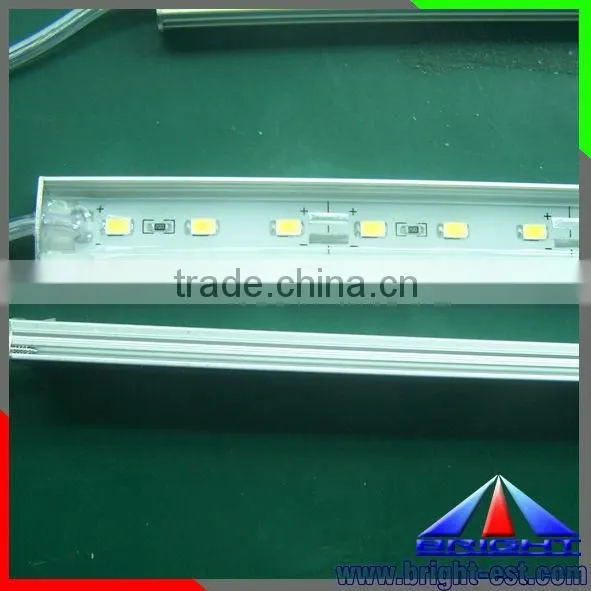

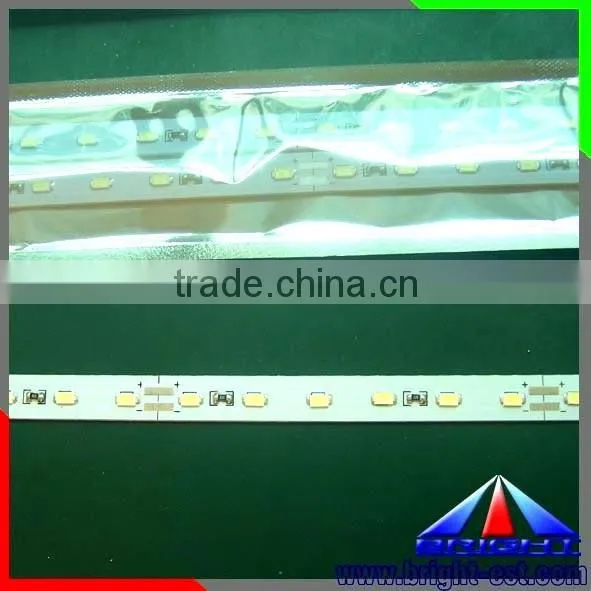

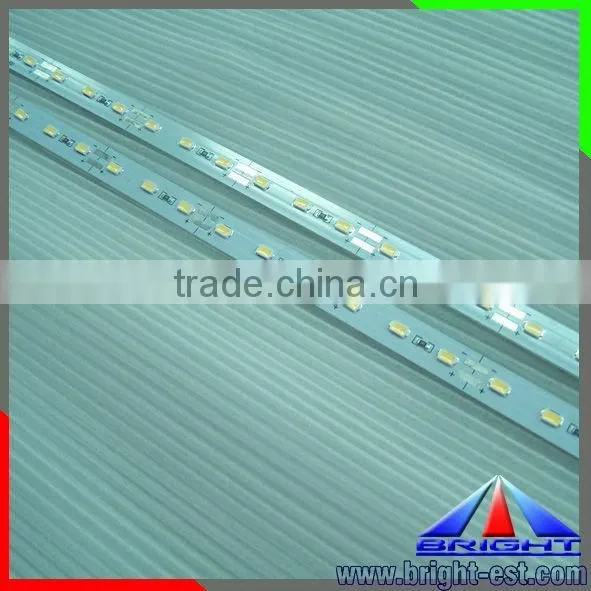

Picture:

72led/m 5630 rigid led bar,Aluminum profile 5630 led strip



72led/m 5630 rigid led bar,Aluminum profile 5630 led strip



72led/m 5630 rigid led bar,Aluminum profile 5630 led strip



72led/m 5630 rigid led bar,Aluminum profile 5630 led strip



72led/m 5630 rigid led bar,Aluminum profile 5630 led strip



72led/m 5630 rigid led bar,Aluminum profile 5630 led strip



72led/m 5630 rigid led bar,Aluminum profile 5630 led strip



72led/m 5630 rigid led bar,Aluminum profile 5630 led strip

APPLICATIONS

Jewelry counter lighting

Indoor decorative lighting and backlighting

Emergency hallway lighting

Auditorium walkway lighting

Indoor/outdoor illuminated signs and advertisements

Backlighting for larger size ad-signs

Elegant interior decoration

Nice accent lighting lamps

Landscape outlines, etc.

Signal lighting

Application places



Our company:



matters needing attention

1. Supply voltage of this product is 12v; never connect to other high voltage.

2. Never connect two wires directly in case of short circuit.

3.Lead wire should be connected correctly according to colors that connecting diagram offers.
