High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar

Shenzhen Bright Technology Industrial Ltd.

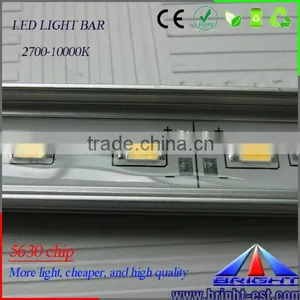

High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar thumbnail-1
High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar thumbnail-2
High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar thumbnail-3
High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar thumbnail-4
High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar thumbnail-5
High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar photo-1

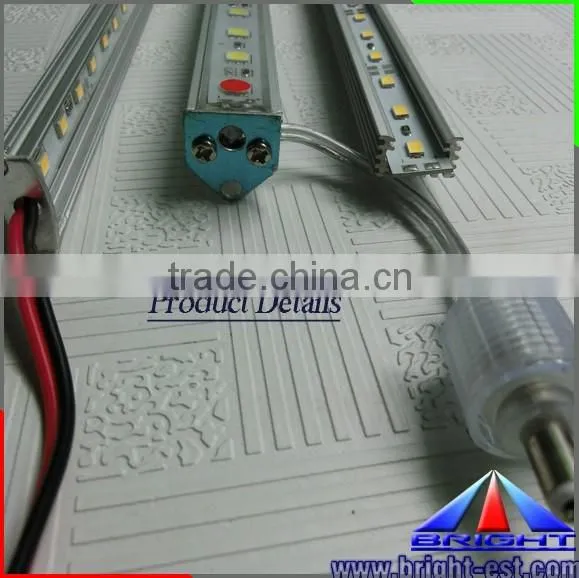

High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar photo-2

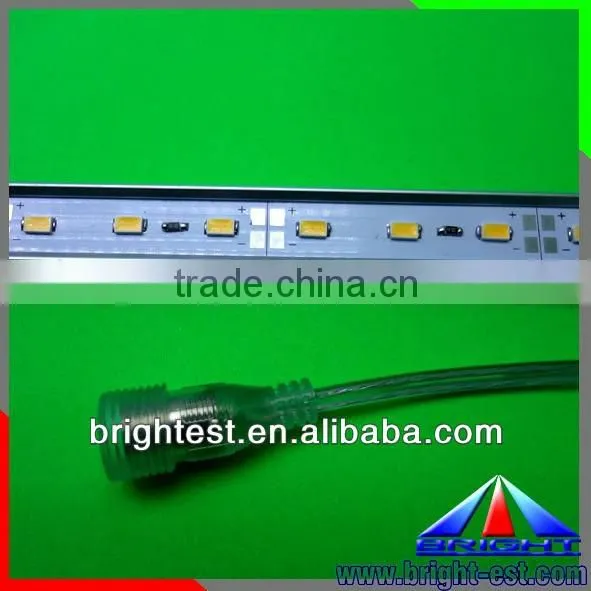

High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar photo-3

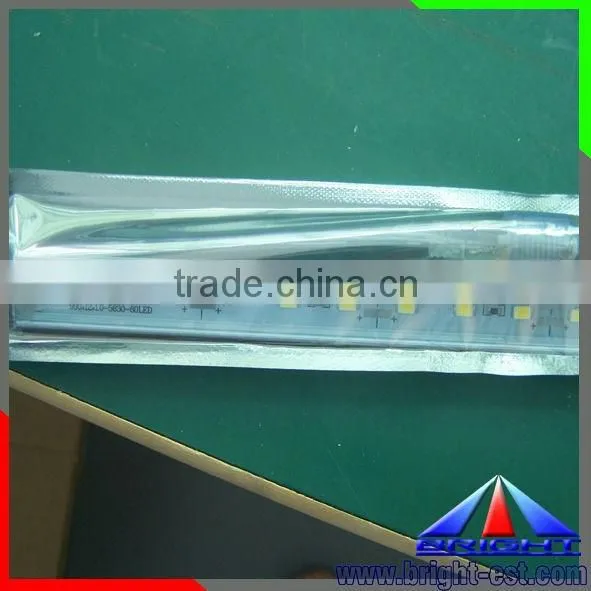

High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar photo-4

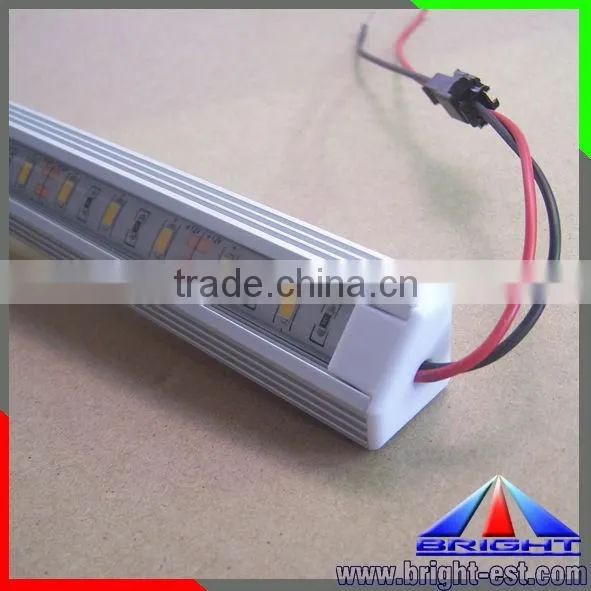

High Lumen 5050 5630 Rigid Led Strip Bar,5630 Rigid Led Bar photo-5
US$ 1 - 8.8 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
smd 5630 led
Type:
LED Bar Lights
Input Voltage(V):
12v
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source smd 5630 led
Type LED Bar Lights
Input Voltage(V) 12v
Lamp Power 24w
Lamp Luminous Flux(lm) 2050-2300lm
Color Temperature(CCT) white
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 500000
Lamp Body Material Aluminum
Certification CE
Emitting Color Other, White, White
Place of Origin Guangdong, China
Brand Name bright 5630 rigid led strip
Model Number BG-1707-5630-60 led bar

high lumen 5050 5630 rigid led strip bar,5630 rigid led bar

FEATURES

1.Work voltage DC12V/24V

2.Working current ( one meter): 400mA/600mA

3.Standard length: 1meters/pc.

4.PCB Width: 10mm,12mm

5.Rigid strip, cuttable every 3/6leds.

6.Available Color: White, Warm White.

7.White PCB are available.

8.SMD5630, 60LEDs/meter Linear SMD5630 LED Bars

9.Sign chip or 3 chips LEDs are available.

10.Beam Angle: 120 degree Linear SMD5630 LED Bars

11.Light decay: Less than 5% after 1000 hours constant work.

12.Protect range: non-waterproof or waterproof IP65.

13.Can be waterproof with silicon cover.

14.Can be waterproof with nanomaterials coating.

15.Life Span: 50,000-80,000 hours.

16. Hight Lumen:2400Lm/m

Specifications

Product NO.

LED TYPE

LED Qty.

Voltage

Current

Luminous Flux(lm)

Power

Color

PCB Material

IP Grade

View

 Angle

Size:mm

BG-1701-3528-60

SMD3528

60Pcs/m

12V DC

0.4 A

300-350

9.6 W

Single color

FR-4

No

120°

1000*8*4

BG-1702-3528-60

SMD3528

60Pcs/m

12V DC

0.8 A

290-335

9.6 W

Single color

FR-4

No

120°

1000*10*7

BG-1702A-3528-60

SMD3528

60Pcs/m

12V DC

0.8 A

275-325

9.6 W

Single color

FR-4

IP65

120°

1000*10*7

BG-1703-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

840-870

14.4W

Single color /RGB

FR-4

No

120°

1000*12*4

BG-1704-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

830-860

14.4W

Single color /RGB

FR-4

No

120°

1000*12*7

BG-1704A-5050-60

SMD5050

60Pcs/m

12V DC

1.2 A

810-840

14.4W

Single color /RGB

FR-4

IP65

120°

1000*12*7

BG-1705-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

970-980

17.5W

Single color /RGB

MCPCB

No

120°

1000*8*4

BG-1706-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

930-950

17.5W

Single color /RGB

MCPCB

No

120°

1000*12*20

BG-1706A-5050-72

SMD5050

72Pcs/m

12V DC

1.45 A

910-940

17.5W

Single color /RGB

MCPCB

IP65

120°

1000*12*20



Picture:

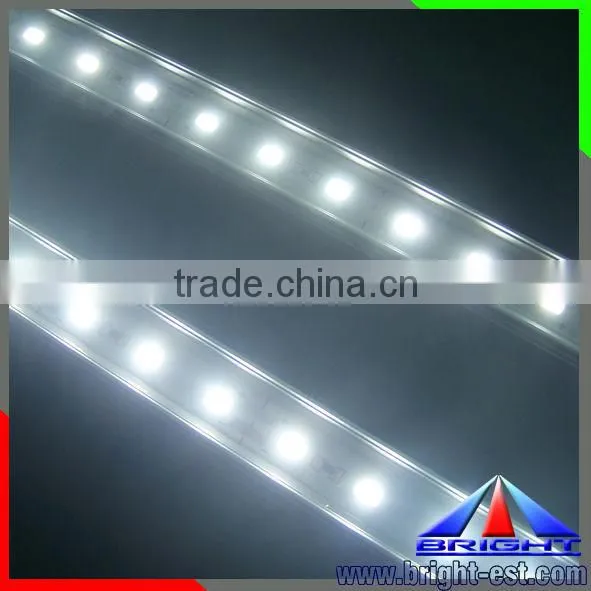

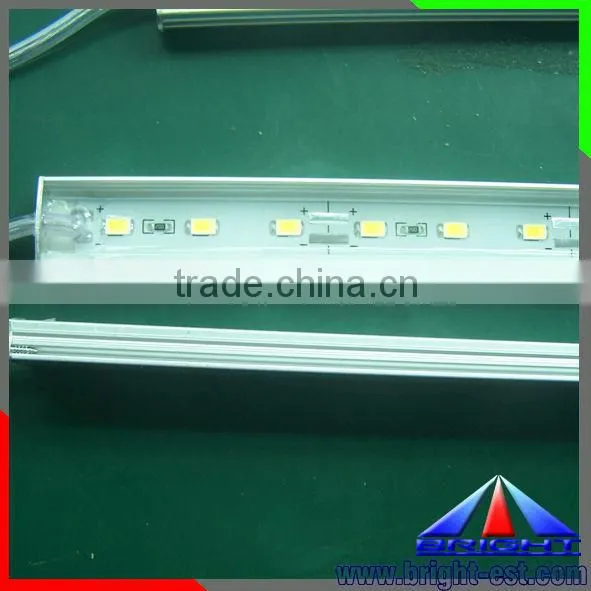

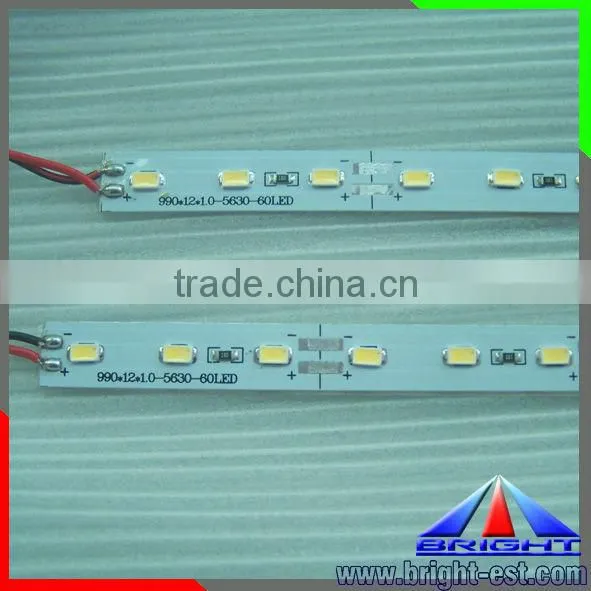

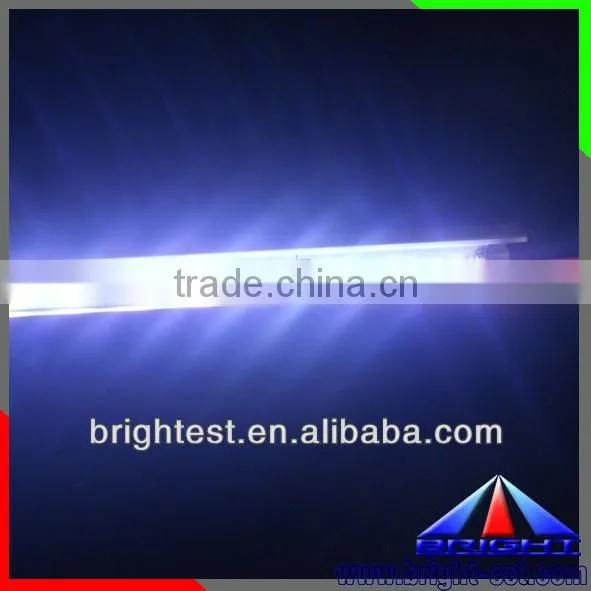

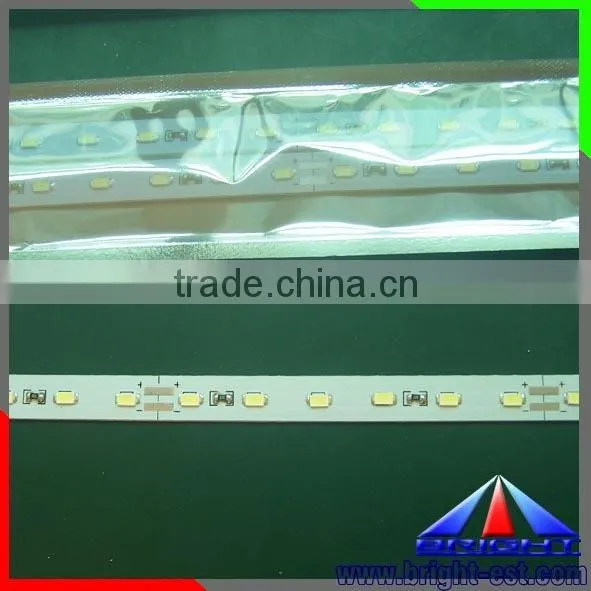

high lumen 5050 5630 rigid led strip bar,5630 rigid led bar



high lumen 5050 5630 rigid led strip bar,5630 rigid led bar



high lumen 5050 5630 rigid led strip bar,5630 rigid led bar



high lumen 5050 5630 rigid led strip bar,5630 rigid led bar



high lumen 5050 5630 rigid led strip bar,5630 rigid led bar



high lumen 5050 5630 rigid led strip bar,5630 rigid led bar



high lumen 5050 5630 rigid led strip bar,5630 rigid led bar



high lumen 5050 5630 rigid led strip bar,5630 rigid led bar

APPLICATIONS

Jewelry counter lighting

Indoor decorative lighting and backlighting

Emergency hallway lighting

Auditorium walkway lighting

Indoor/outdoor illuminated signs and advertisements

Backlighting for larger size ad-signs

Elegant interior decoration

Nice accent lighting lamps

Landscape outlines, etc.

Signal lighting

Application places



Our company:



matters needing attention

1. Supply voltage of this product is 12v; never connect to other high voltage.

2. Never connect two wires directly in case of short circuit.

3.Lead wire should be connected correctly according to colors that connecting diagram offers.
