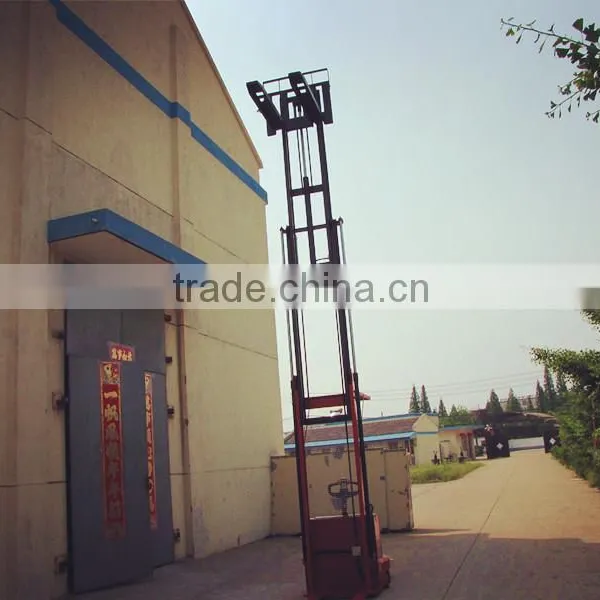

Triple Mast 6M Height electric Pallet Fork Lift Stacker
Advantages:
1.America CURTIS Main-handle Assembly;
2.Handle Button Accelerator (stepless adjusting speed),
3.Electric Controller Electric Meter Contactor
4.Swiss BUCHER Hydraulic System;
5.Motor Oil Pump Distribution Valve Flow Control Valve,
6.Pressure Regulator Valve,One-way Valve
7.Hong Kong Oil Cylinder
8.Intelligent Battery and driving wheel from China or imported
Model |
Unit |
HL12 |
HL15 |
|
Rated load capacity |
kg |
1200 |
1500 |
|
Power |
|
Tractive-type battery |
||
Operator type |
|
Pedestrian / rider (pedal) |
||
Maximum lifting height |
mm |
6000 |
6000 |
|
Lowered height of fork |
mm |
≤90 |
≤90 |
|
Minimum turning radius |
mm |
1425 |
1650 |
|
Minimum aisle width |
mm |
2800 |
2800 |
|
Minimum ground clearance |
mm |
30 |
30 |
|
Standard fork length |
mm |
1150 |
1150 |
|
Standard fork width |
mm |
175 |
175 |
|
Fork overall width |
mm |
570 |
570 |
|
Fork individual width |
mm |
220 |
220 |
|
Overall length |
mm |
1980 |
1988 |
|
Overall width |
mm |
1000 |
1000 |
|
Mast extended height |
mm |
5940 |
5940 |
|
Mast lowered height |
mm |
2485 |
2485 |
|
Maximum traveling speed |
Laden |
km/h |
4 |
4 |
Unladen |
km/h |
6 |
6 |
|
Maximum lifting speed |
Laden |
mm/h |
80 |
80 |
Unladen |
mm/h |
130 |
130 |
|
Maximum lowering speed |
Laden |
mm/h |
110 |
110 |
Unladen |
mm/h |
90 |
90 |
|
Gradeability |
Laden |
% |
5 |
5 |
Unladen |
% |
8 |
8 |
|
Braking type |
|
Electromagnetic |
||
Wheel type front/rear |
|
Poly/Poly |
||
Wheels |
|
1×Driven wheel,2×Balance wheel,4×Front wheel |
||
Balance wheel dimension |
mm |
Φ156×50 |
Φ156×75 |
|
Axis space |
mm |
1228 |
1450 |
|
Driving motor |
kw |
1.2 |
||
Lifting motor |
kw |
2.2 |
||
Battery(Voltage/Capacity) |
V/Ah |
24/165 |
24/210 |
|
Control system |
|
Curtis I207a |
||
Weight |
kg |
1360 |
1380 |
|
