Specifications
Inlet pressure: 2200psiOutlet pressure :50psi
Flow rate :2-15LPM
Pressure gauge size: 2inch/50mm
Pressure range:3300psi

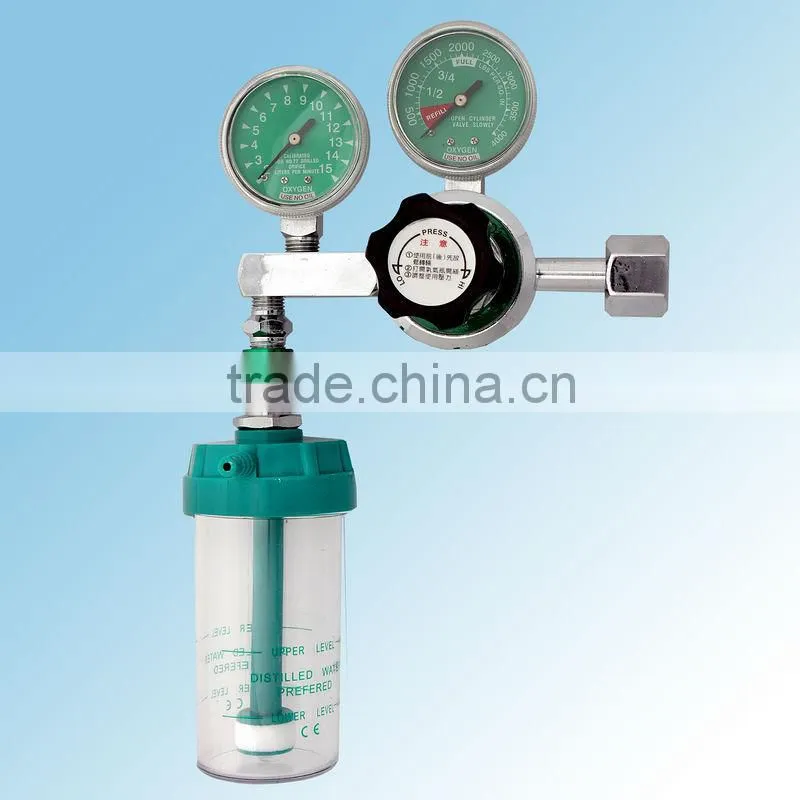

Oxygen Regulator :
Features:
Diaphragm regulator
The main part uses the goodness copper,using digit control machine tool to precision machining.
Lengthening air inlet valve lever , fit for the different capacity of oxygen cylinder.
Integrated Casting flowmeter
Long stroke Flow Switch
Spool of high wear-resistant stainless steel valve plug
Flow tube, wet cup of high-strength polycarbonate plastic body
High temperature high-pressure sterilized humidifier body, to meet European standards for B-level disinfection .The maximum temperature of 121°C Pressure 0.142MPa
Polymer high-density filter, wet-based uniform.
Model: OX-8E
Gas Type :Medical oxygen
Inlet pressure: 2200psi
Outlet pressure :50psi
Pressure gauge size: 2inch/50mm
Pressure range:3300psi/250bar
Flow rate :2-15LPM
Inlet connections:
CGA540/0.908-14NGO-RH-INT (Optional)
BS341-3 (Optional)
UNI4406 O2 (Optional)
DIN477-9 (Optional)
JIS W22-O-R (Optional)
CGA870/Pin-Indexed Yoke (Optional)
Outlet connections:DISS1240
Humidifier capacity:200ml
Packaging: 10/pcs (box)
Package Size: 55x41.5X17.5cm
G/W: 13.5/12.5 kgs
