Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | krich | Model Number: | FM-3060-t |
| Type: | Floor Heating Systems |
Product Description

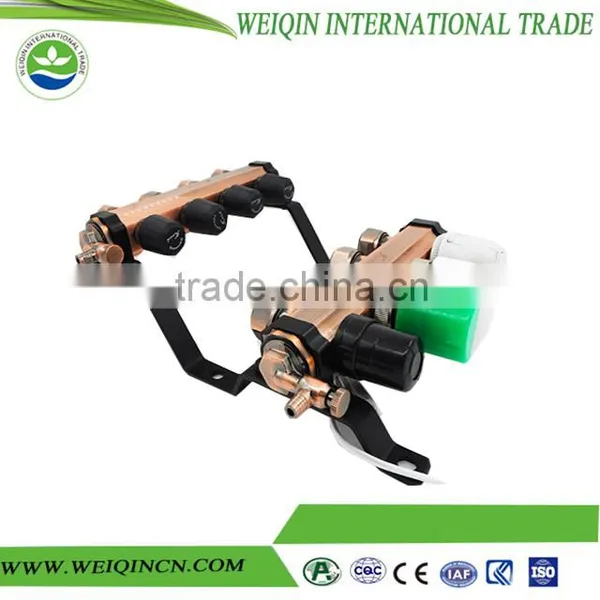

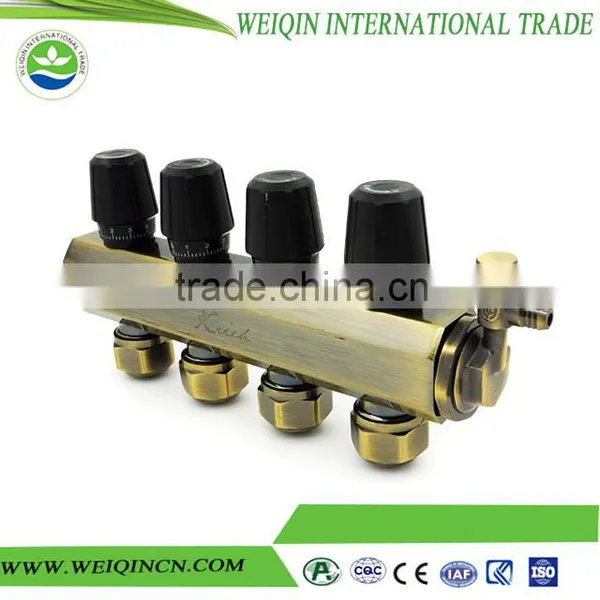

Brass heating manifold actuator digital manifold gauge with 2 to 12 ways with frame
| Material | brass |
| Model | fm-3040,3050,3060,3070 |
| Pressure | PN16 |
| Working temperature | -20℃ ≤ T≤ 100℃ |
| Pipe thread | ISO228 |
| Floor heating pipe connector | 1216,1620,20*2.3 interworking |
| Branch spacing | 48mm |
| Main body thickness | ≥ 1.8mm |
| Certfications | ISO9001,CE, IAF |
| Ways | 2-12loops |
| Payment | T/T,L/C,Western Union |
| Brand | krich or OEM |
Composed of flow manifold and return manifold.The flow manifold is connect with inlet of heating source water system,and the built-in shut off valve can adjust the whole system flow of static balance.The teturn manifold is connect with return water of heating system,and built-in adjustable valve which can manual open it or close the branch of floor heating.
Character of the Brass Union Manifold for heating
| 1.main bars | With strong three-dimensional sense on the main bar , and remarkable in comparison with ordinary products . |
| 2. o-rings. | Two 0-rings +PTFE Packing. Even if the two O-rings has been damaged all, the leakage will stop immediately after tighten the locking cap, thereby greatly reducing the inconveniences to the users during the heating time. |
3.Seal seat | PTFE shut off seat can shut tight. |
| 4.Branches | The main bar and branch have been integrated with excellent leak-proof technology and stability , which can guarantee no connection points, thus completely solve quality problems due to improper production and construction. |
| 5.Handle wheel | Plug –Hand wheel ---Pull up the hand wheel and remove it when leakage . More convenience for facilitate maintenance. |
| 6.Connections | The connections of floor heating pipe are union structure . All types of pipes are interchangeable for style 1216,1620,20*2.3 , which increase the versatility character of the pipes |
| 7. Exhaust valves | Union structure for vent and body . Less leakage , safe use . Precise positioning with lock- cap structure. |
Related Products
Factory:
1.All of our products are insured by China Ping An Property Insurance Co.,LTD.
2.we offer warranty 24 months ,since the date from the customer sell to their customers.
Inner box,then in carton and pallets,or according to your requirement.
Our company is a distributor of climate and sanitary hot water solution and servies,located in Shanghai pilot free trade zone,China.The products are far sold to European ,American,Middle-east and other markets.We welcome your samples or drawings for our manfacturing.Sincerely,we really hope we will have the long-term business relationship with you in near future.
Certification:
Why Us:
1.Fast Material Supply—our factory has copper bar company.
2.Supplier of national projects—Bird’s Nest, Shanghai World Financial Center
3.Automated and robotized machines –increase efficiency reduce cost
4.OEM & ODM projects are welcome
5.ISO9001 & ISO14001 approved
6.Rich experienced engineers and customized after service.
7.Annual R&D projects reach the number of 100
8.Toyota Production System and ERP Management System
9.Seven Step QC Process
1) Material Control
2) Machining Quality Control
3) In-coming Material Inspection
4) Assembly line Quality Control
5) 100% leakage testing
6) Final Inspection before delivery
7) American Standard air&water pressure testing
We keep your family safe and comfortable.Welcome to contact us!
