Specifications
Specificationsnew invention P10 truck mobile led display
1.1R1G1B
2.4s SCAN
3.fresh ,latest

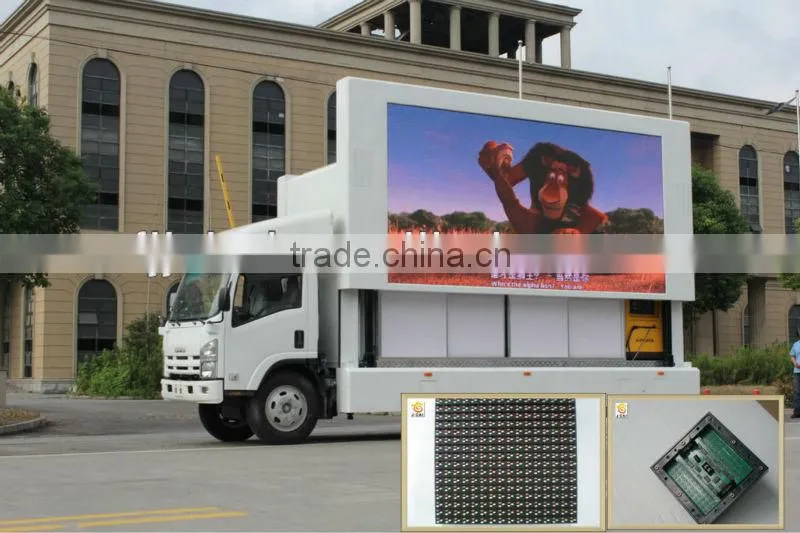

new invention P10 truck mobile led display
The technical parameters of P10 truck mobile led display | |
Pixel pitch |
10mm |
Module size |
160×160mm |
Module density |
10,000dots/sqm |
Module resolution |
16×16 |
Pixel configuration |
1R1G1B |
Red wavelength |
OPTO taiwan 625±2nm |
Green wavelength |
Silan taiwan 525±2nm |
Blue wavelength |
Silan taiwan 470±2nm |
Best viewing distance |
From 10 to 150 |
Horizontal viewing angle |
110° |
Vertical viewing angle |
60° |
Maximum power consumption |
Below 1100W |
Brightness |
7000cd/sqm |
Gray scale |
More than 4096 |
Control method |
Synchronization |
Driving method |
4Sconstant current |
Frame frequency |
60Hz |
Refresh frequency |
More than 300 Hz |
Working voltage |
AC220V±5% |
IP grade |
IP65 |
Working temperature |
-20°C±50°C |
MTBF |
More than 10,000 hours |
Life span |
More than 100,000hours |
Cabinet style |
Waterproof cabinet |
Cabinet size |
W640*H640*D120mm |
We are the professional manufacturer of led display in Fujian,China who close to the Port Xiamen. Our factory founded in 2005, registered capital 20.18 million, owned workshop area 20000 sqms.
The products including all kinds of outdoor and indoor led display board,the hot sale products including P6 indoor full color led screen ,P10 outdoor full color led display and P16 outdoor full color led display module etc.
Welcome to contact us for more info.
