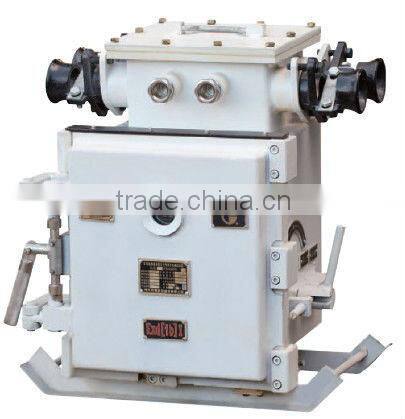

Mining Explosion Proof and Intrinsically Safe (reversible) Vaccum Electromagnetic Starter
- China main port
- Credit Card
You May Like
-
Mining Explosion Proof Double-loop Reversible Vaccum Electromagnetic Starter
-
Mining Explosion-proof Fan With Dual Power Electromagnetic Starter
-
Mining Explosion-proof Fan With Dual Power Electric Locking Vaccum Electromagnetic Starter
-
Mining Explosion-proof With Double-loop Vacuum Electromagnetic Starter
-
Mining Explosion-proof Ventilator With Dual Power Vacuum Electromagnetic Starter
-
Coal Mine Used Explosion Proof Vacuum Electro Magnetic Starter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DIANGAUNG | |
| Model Number | QBZ-60(30)/660(380)N,QBZ2-60(30)/660(380) |
Product Description
Application
Used in coal mine or underground where exists methane compound gases and dangerous explosive gases,it applys for power supply network which controls (remote-control) 3-phase squirrel-cage motor with AC50
Hz, 1140V and neutral point not earthing directly.
Features
Rectify and resetting the rated current through dialing the code or shift the buttons.
With the protection of short circuit, overload, phase-lose, voltage-absorb, leakage atresia and so on.
With the state instructions of power, mechine operating,working fault;
Near or remote control can be chosen;
The intrinsical safe type has water level detection function, controlling the pump start or stop according to the water level.
Parameters
| Rated Voltage(V) | 1140.660.380 |
| Rated current (A) | 30.60 |
| Rated Frequency(Hz) | 50 |
| Current setting | sub-file setting |
| Intrinsically safe parameters | Uo:AC 9V/DC7.1V,Io:AC2.5mA/DC1.3mA |
