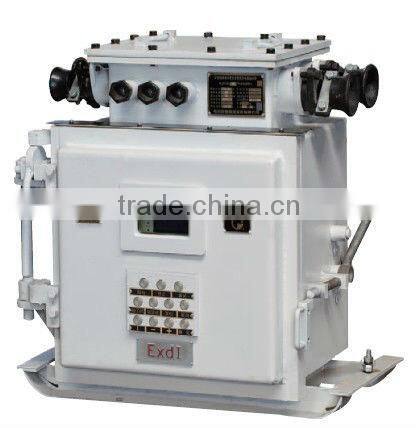

Help CenterMining Explosion Proof Double-loop Reversible Vaccum Electromagnetic Starter
Related Products
-
Mining Explosion-proof Fan With Dual Power Electromagnetic StarterNegotiableMOQ: 1 Set -
Mining Explosion-proof Fan With Dual Power Electric Locking Vaccum Electromagnetic StarterNegotiableMOQ: 1 Set
-
Mining Explosion-proof With Double-loop Vacuum Electromagnetic StarterNegotiableMOQ: 1 Piece
-
Mining Explosion-proof Ventilator With Dual Power Vacuum Electromagnetic StarterNegotiableMOQ: 1 Set
-
Coal Mine Used Explosion Proof Vacuum Electro Magnetic StarterNegotiableMOQ: 1 Set
Application
Used in coal mine or underground where exists methane compound gases and dangerous explosive gases, applys for AC50HZ, 1140V and 660V and 380V circuit. With the explosive-proof button can near-control or remote-control start-stop, complete meet the logical relationship between oil pump motor and main motor start, including main motor rotates forward or backforward. The start has the protection of overload, phase-lose, short circuit, leakage atresia, under-pressure, voltage-absorption, making a full protective function.
Features
Full Chinese LCD backlit, real-time display system voltage,3-phase current, machine state,linkage state
Pull-down menu setting, resetting the parameter ,step-length 1;
With the protection of short circuit, overload, phase-lose, 3-phase unbalanced,leakage atresia, over-voltage absorption and so
on;
Complete the logical relationship of first and sencond between oil pump motor and main motor start-stop , avoiding equipment loss and accidents caused by factitious error ;
Standard RS485/232 communication interface; It attached in KJ254 Mining power monitoring control system makes power supply automatically, bring about remote measure, telecommunication, remote control and remote regulation functions
Parameters
| Rated Voltage(V) | 1140.660.380 |
| Rated current of oil pump loop(A) | 10 |
| Rated current of Main motor circuit(A) | 120 |
| Working Frequency(Hz) | 50 |
| Current setting | each loop current respectively setting |
