APPLICATIONS
This kind of industry bimetal thermometer has a pointer at the center of the screen, which can check the max temperature arising during the day, the pointer is very sensitive to show correct temperature.

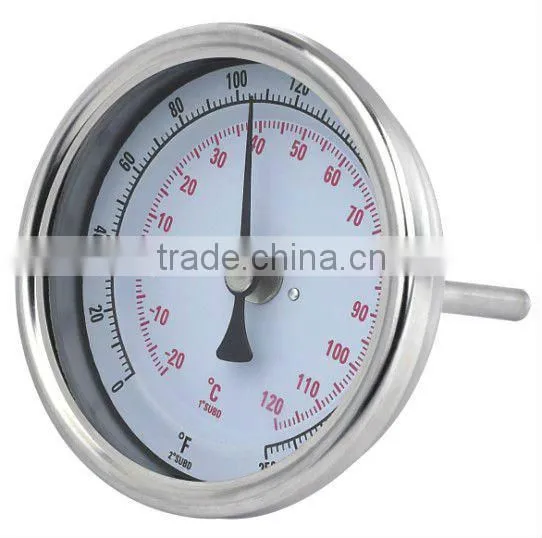

Bimetallic Thermometer
Technical Information :
Production enforce standard :JB/T8803-1998;GB3836-83
Panel Dimensions: 2.5”,4”,6”
Connection :Back connection ,Bottom connection
Thread :1/8", 1/4", 3/8", 1/2" PT..NPT,BSP/G
Accuracy:±1.5 %
Range:0-500°C
Indicator: Black
Meter Case : 304 Stainless Steel OR 316 Stainess Steel
Thermal Sensor Tube: 304 Stainless Steel OR 316 Stainess Steel
Thermal Response Time :≤20s
Protection Grade:IP55
Angle-Erro:At Most 1.0%
Hystersis:≤1.0%(Absolute Value)
Repeatability: ≤1.0%(Absolute Value) *1/2
Installation Instructions Attention :
WSS Bimetallic Thermometer
1.Try to avoid collision protection tube
2. Don’t make the protecting tube bending and transformation.
3. It is strictly prohibited to twist the gauge's body during the installation
plastic bag, export carton, box, pallet
