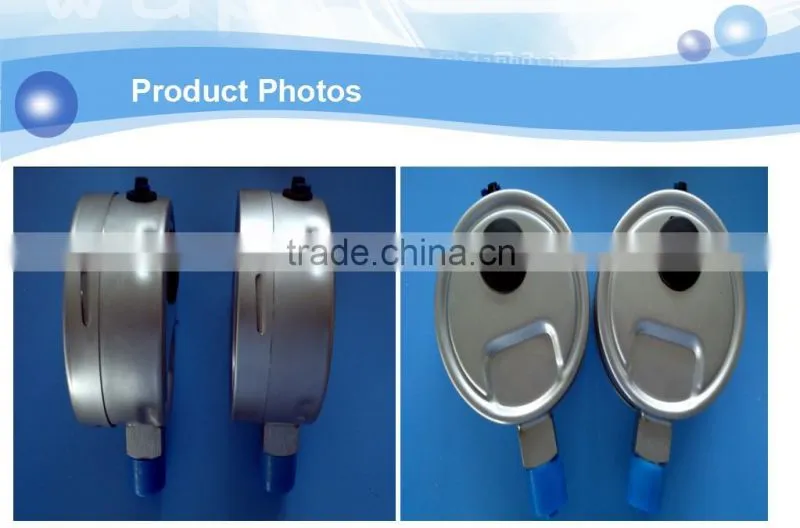

100mm Bottom Mount Stainless Steel Liquid Filled Pressure Gauge Exact

Name: 100mm Bottom Mount Stainless Steel Liquid Filled Pressure Gauge Exact
Brand: Exact
SKU: 110520291
Availability: InStock

US$ 1.6 - 25.9 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Exact

Model Number:

118AL1

Exact Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Exact

Model Number 118AL1

The case of this product, largely based on the customers’ requirements, is mainly made of stainless steel. The internal structure is made of either copper or stainless steel. It is widely used in pneumatic systems, compressors, compressed air system and suitable for fluid medium that does not clog connection port or corrode copper alloy. It can be used as glycerine/silicone filled gauge. And it’s used at customer’s disposal. It itself is protected from vibration and pulsation.
This oil filled gauge character is high quality. The strict management and quality control make the good performance of the product.
Glycerine/Silicone Filled Gauge has passed ISO9001:2008 certification.

Normal Size:	1.5"(40mm),2.0"(50mm),2.5"(63mm), 3"(75mm),4"(100mm),6"(150mm).
Pressure Range:	-1Bar(-30"Hg)-0-1000Bar(15000Psi)
Accuracy:	±1%,±1.6%
Operating temperature:	-20°C to +60°C
Case:	Stainless steel
Bezel:	Stainless steel
Bourdon tube:	Stainless steel <100Bar: C-Type ≥100Bar: Helical Type
Connection:	Stainless steel
Movement:	Stainless steel
Dial:	Aluminum
Pointer:	Aluminum
Window:	Safety Glass or tempered glass
Thread:	1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc.
Liquid:	Glycerin or Silicone
Gaskets Filling cap:	Nitrile or Silica gel
