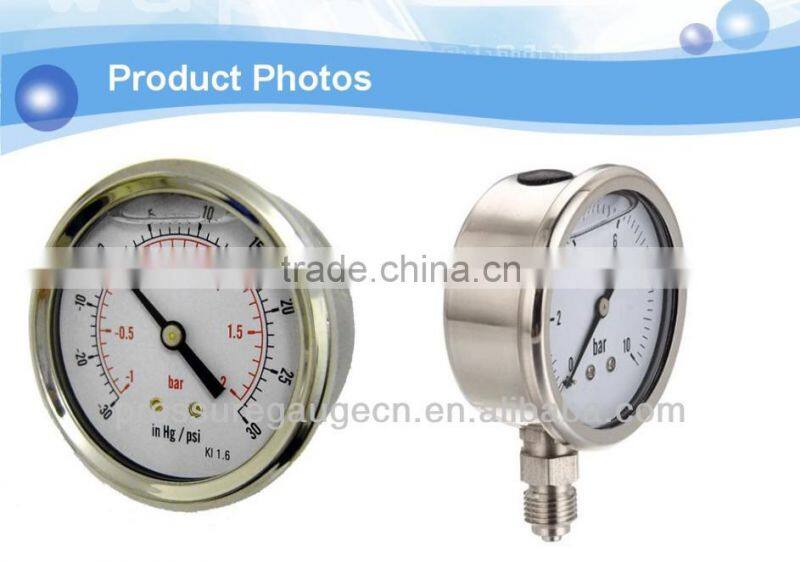

All Stainless Steel Water Pressure Gauge With Glycerin Filled

Name: All Stainless Steel Water Pressure Gauge With Glycerin Filled
Brand: Exact
SKU: 110520069
Availability: InStock

Exact Instrument Co., Ltd.

US$ 1.6 - 25.8 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Exact

Model Number:

116BL1

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Exact

Model Number 116BL1

The case of all-stainless steel liquid filled gauge is usually made of 304 stainless steel , while the internal and 316 stainless steel case according to customers’ requirements. It is used for petrochemical field, pneumatic systems, compressors, compressed air system and suitable for fluid medium that does not clog connection port or corrode copper alloy.
There are two advantages. One is that the price of components is competitive. This is because our factory produces the components and parts. The other is that the performance of the product is very good as a result of our strict management and quality control.
All-stainless steel case pressure gauge has passed ISO9001:2008 certification.

Normal Size:	1.5"(40mm),2.0"(50mm),2.5"(63mm), 3"(75mm),4"(100mm),6"(150mm).
Pressure Range:	-1Bar(-30"Hg)-0-1000Bar(15000Psi)
Accuracy:	±1%,±1.6%
Operating temperature:	-20°C to +60°C
Case:	Stainless steel
Bezel:	Stainless steel
Bourdon tube:	Copper alloy or Stainless steel <100Bar: C-Type ≥100Bar: Helical Type
Connection:	Brass or Stainless steel
Movement:	Semi-brass or Complete brass; Stainless steel
Dial:	Aluminum
Pointer:	Aluminum
Window:	Polycarbonate or Glass
Thread:	1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc.
Liquid:	Glycerin or Silicone
Gaskets Filling cap:	Nitrile or Silica gel
