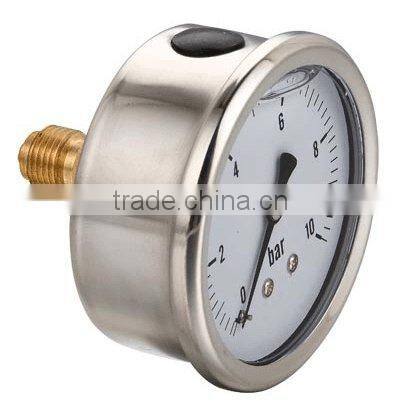

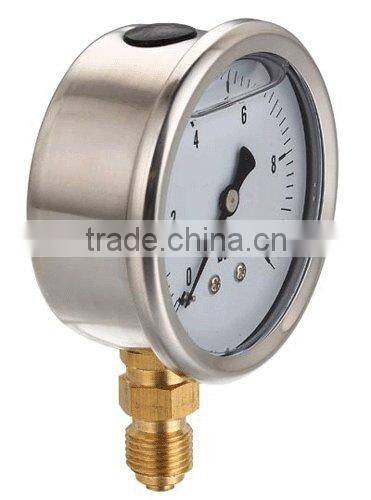

All Stainless Steel Oil Filled Pressure Gauges With Bayonet Ring

Name: All Stainless Steel Oil Filled Pressure Gauges With Bayonet Ring
Brand: Exact
Availability: InStock

FOB Price

US$ 0.1 - 100 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	Exact
Model Number	118BB

Oil Filled Pressure Gauge

SPECIFICATIONS:

Normal Size:	1.5"(40mm),2.0"(50mm),2.5"(63mm), 3"(75mm),4"(100mm),6"(150mm).
Pressure Range:	-1Bar(-30"Hg)-0-1000Bar(15000Psi)
Accuracy:	±1%,±1.6%
Operating temperature:	-20°C to +60°C
Case:	Stainless steel
Bezel:	Stainless steel
Bourdon tube:	Copper alloy or Stainless steel <100Bar: C-Type ≥100Bar: Helical Type
Connection:	Stainless steel
Movement:	Stainless steel
Dial:	Aluminum
Pointer:	Aluminum
Window:	Polycarbonate or Glass
Thread:	1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc.
Liquid:	Glycerin or Silicone
Gaskets Filling cap:	Nitrile or Silica gel

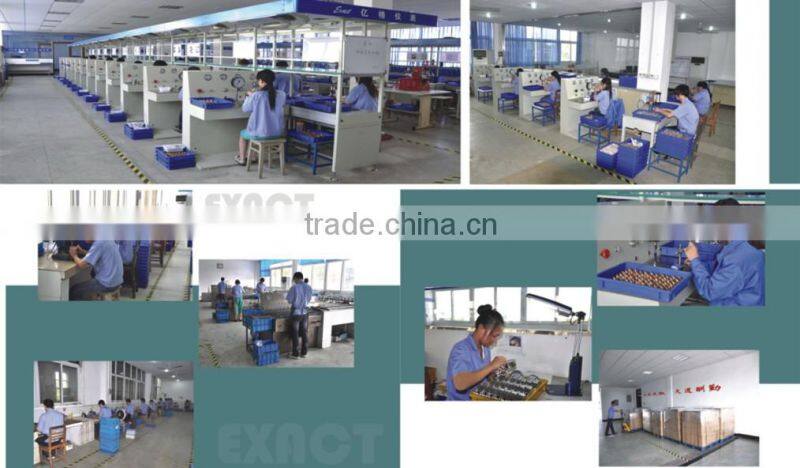

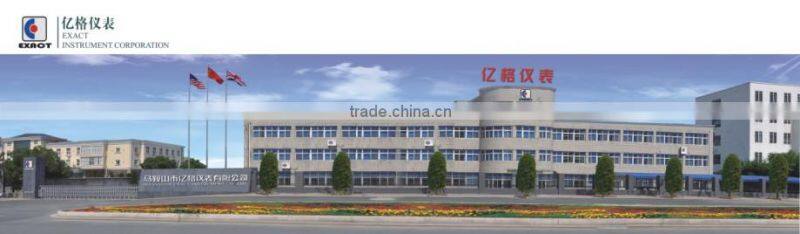

Our Factory:

CERTIFICATION:

Exact Instrument Co., Ltd.: Contact nameBruce Pang
Chat Now; Phone86-555-2103806; AddressNo. 1950, Caishi River Road, Economic and Technological Development Zone
