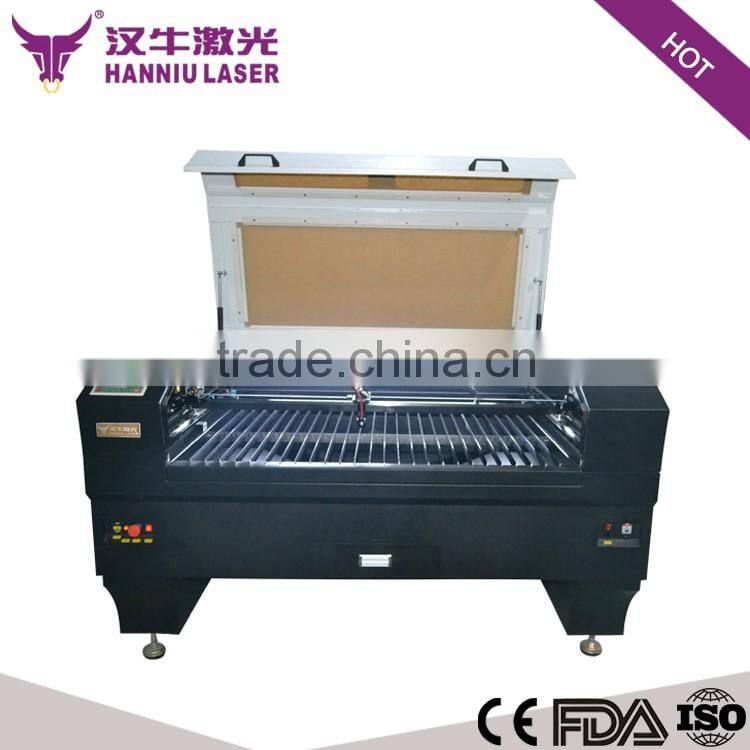

80/100/120W K-1390 co2 wood laser cutting machine
Contact me: Mr mikelee
Skype: michalelee8 QQ: 1992527358 Whatapp: +86 13726710301 Phone: 13922247841

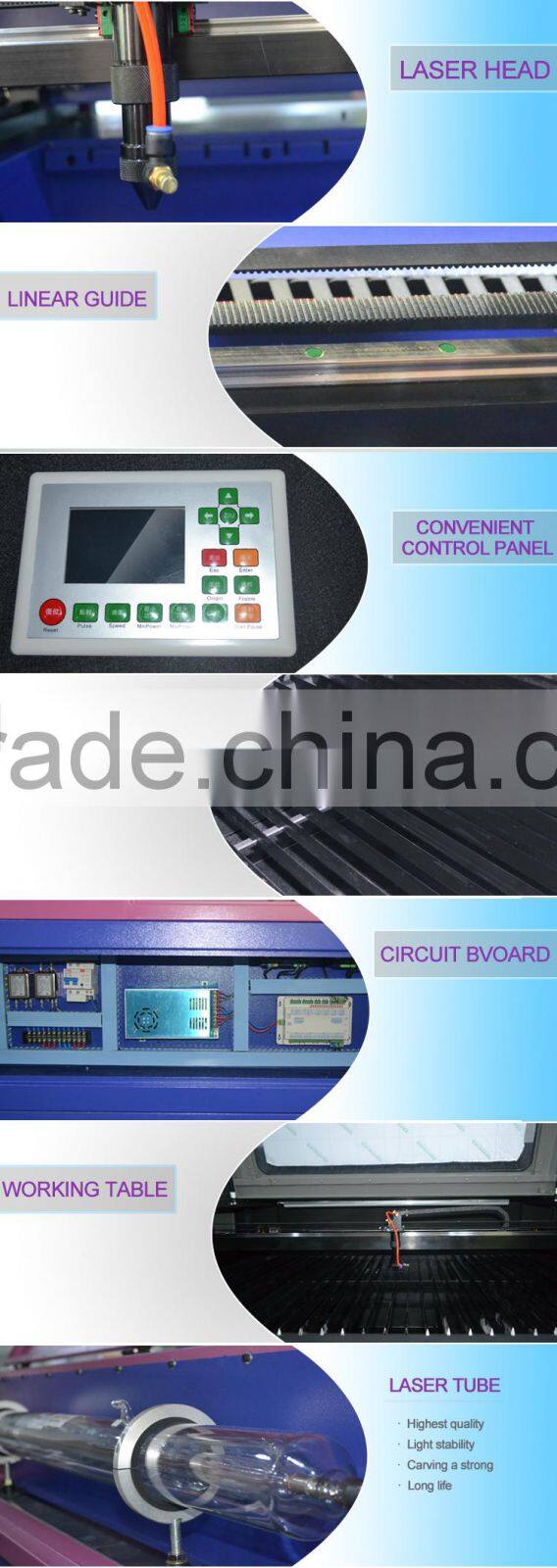

Details of machine
about us
GUANGZHOU HANNIU LASER MACHINERY CO.,LTD comes to the development of the industry for many years,
with advanced technology and talents. we sell our products to all over the world, we enjoy the high repulation in this area.
We work hard to provide customers with the most satisfactory product quality and thoughtful service.
We hope to develop together with you hand in hand. Your satisfaction is our greatest pursuit.
We sincerely welcome you come to visit our factory.
certificates
Specifications
Control system: |
DSP control system |
Laser type: |
Sealed CO2 glass laser tube |
Working area: |
900*1300mm(35.44*23.62inch) |
Laser power: |
60w/80w/100w/120W/130w/150w |
Pass-thru doors: |
Allow to cut extremely long materials(max thickness 35mm) |
Interface: |
USB connection ( Work in Windows XP, 2000,Vista,7) |
Memory: |
1Gb Buffer Memory |
Driver system: |
Stepper motor |
Auxiliary equipments: |
Exhaust-fan, air-exhaust pipe |
Laser Tube life hours: |
3000 Hours |
Repeating precision: |
±0.05mm |
Moving system: |
CNC controlling units |
Cooling mode: |
Water-cooling and protection system |
Max speed: |
600mm/s for engraving, 300mm/s for cutting |
Working voltage: |
AC110/220±10% 50/60Hz |
Whole power: |
<1250W |
Operating temperature: |
0-45°C(32° - 113° F) |
Operating humidity: |
5%-95% |
Controlling software: |
Original HANNIUlaser software |
Graphic format supported: |
BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX |
Compatible software: |
Auto CAD, CoreIDraw 12 |
Resolution: |
User controlled 100-500DPI(standard model), up to 1000DPI(high resolution attachment) |
Machine dimension: |
1800*1400*1100mm |
Packing dimension: |
1700*1200*1250mm |
Net weight: |
200kg |
Gross weight: |
250kg |
Packing: |
stronger wooden case |
Standard accessories
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans with Tube ducts (install inside machine)
3) 1×Industrial chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including software, guiding videos etc)
6) 2×Power cables
Optional accessories
1) High resolution(for engraving extremely high quality photos, even 3D photos).
2) Rotary (for engraving round items).
3) New red dot design(make the laser beam visible).
4) Motorized up and down worktable.
Guarantee
The laser machine guarantee for 1year except laser tube
80w laser tube guarantee for 9months
120w laser tube guarantee for 6months
150w/180w laser tube guarantee for 9months

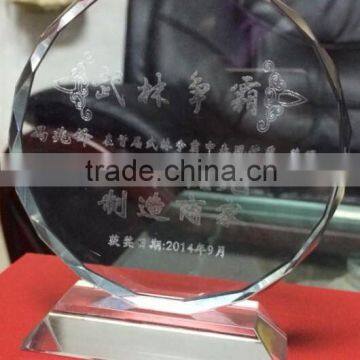

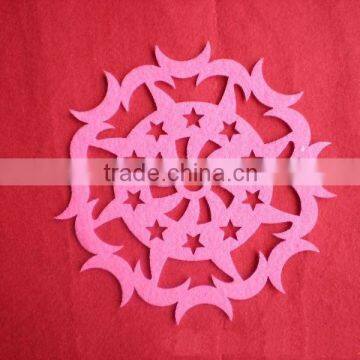

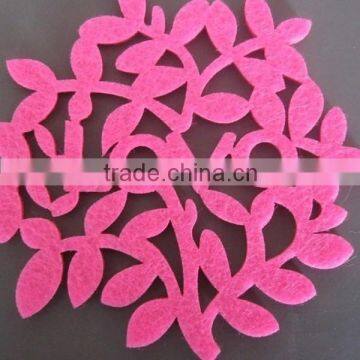

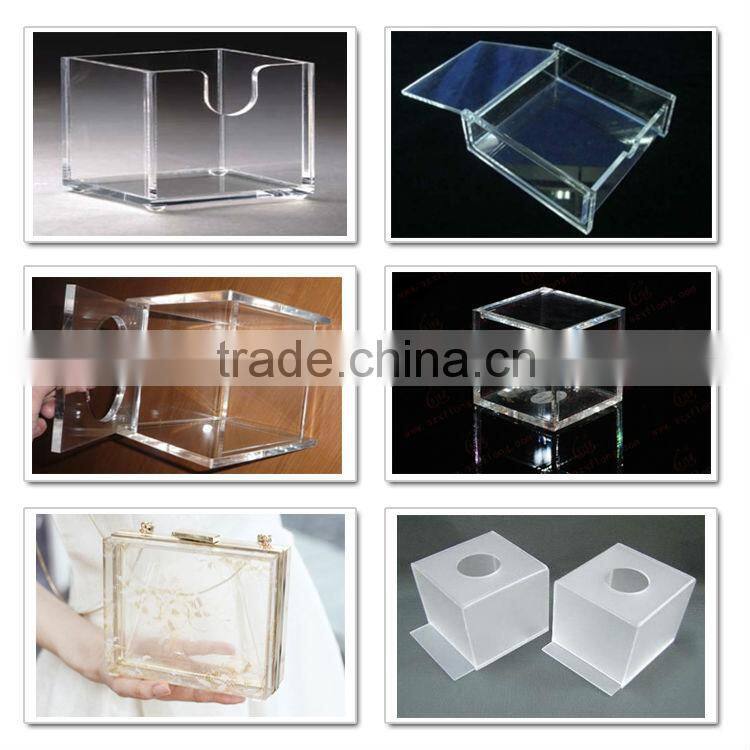

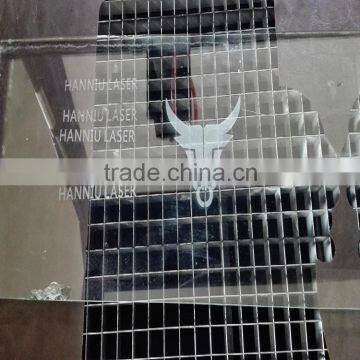

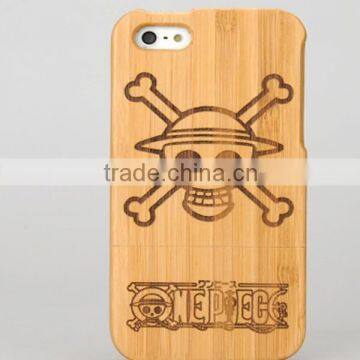

samples of the machine
Applicable Matericals:
Wood,paper,leather,cloth,organic glass,resin,acrylic,wollens,plastic,rubber,ceramic,tile,crystal,bowlder,bamboo,non-metal etc.
Applicable Industry
Cloth embroide fabric toy,fabricture,glove,bag,leather,advertising,decoration,electric product,rubber,acrylic product,middle density,board etc non-metal sheet precision cutting &engraving.
our team and factory
Exibition

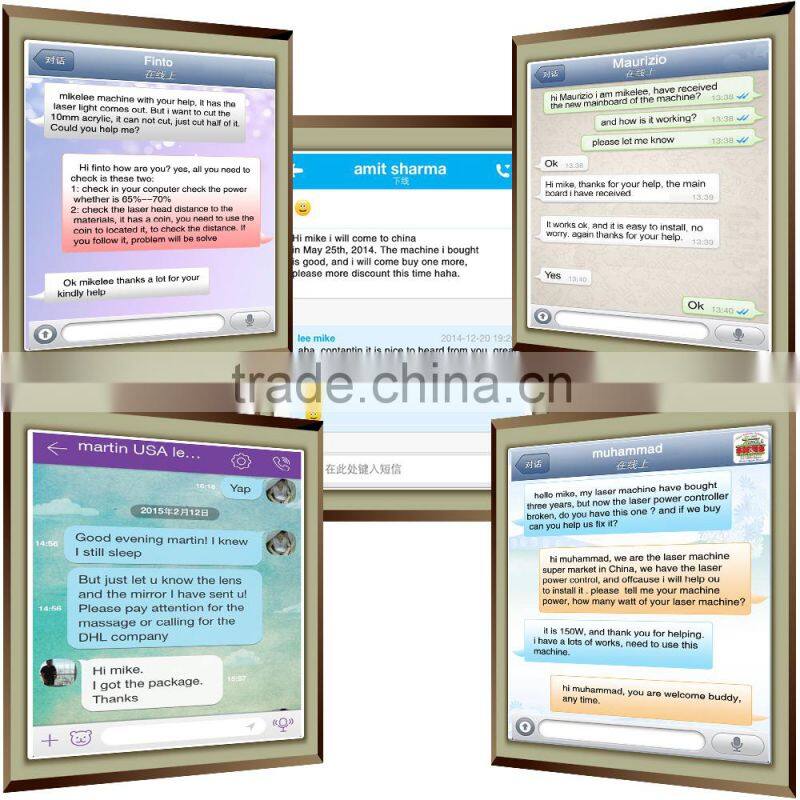

Customers you may know
your satisfied is my hornor
Sell the machine with responisibilitty, do the after sell good.
Other machines
laser cutting machine series
Package
Thank you for your visting our website.
Any interested, Please contact us!
contacts me :+86 13922247841(mike)
