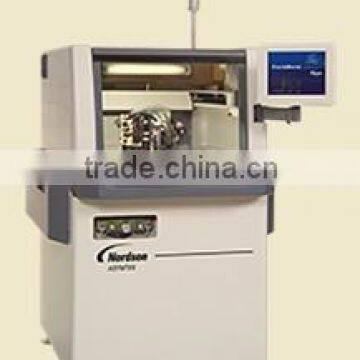

Second hand cheapest glue machine price for sale

X-1020 SYSTEM SPECIFICATIONS

MOTION SYSTEM:

X-Y Placement Accuracy: ±0.050 mm (0.002 in.), 3 Sigma

±0.076 mm (0.003 in.), 3 Sigma (fast mode)

Z Accuracy: ±0.025 mm (0.001 in.), 3 Sigma

High Precision Z Accuracy: ±0.012 mm (0.0005 in.), 3 Sigma

X-Y Repeatability: ±0.025 mm (0.001 in.)

Encoder Resolution: 5 micrometer

X-Y Acceleration: 1.0 g peak with S-curve jerk control

X-Y Velocity: 1 m/s (40 in/s) peak

X-Y Travel: 501.4 x 541.5 mm (19.7 x 21.3 in.)

Z Travel: 89.0 mm (3.5 in.)

X-Y Type: Brushless DC servomotor driven,

low-inertia, closed-loop, high-resolution

cable drive with linear-encoder feedback

Z Type: Brushless DC servomotor, rack and pinion

Z-drive with precision encoder feedback

DISPENSE AREA (X-Y):

Dual Action (Valve 1/Valve 2):

1.Precise jetting of a wide variety of materials such as underfill, encapsulants, no-flow underfill, stacked die adhesives and more

2.Superior closed-loop control of process variables — fluid weight, flow rate, and substrate heat — for optimized throughput and yield with minimal operator interface

3.Enhanced pattern recognition system with robust blue-red on-axis lighting for a larger range of vision capability

4.Linear-encoded X-Y drive system for ± 0.050 mm high-precision placement accuracy and ± 0.076 mm for high-speed applications
