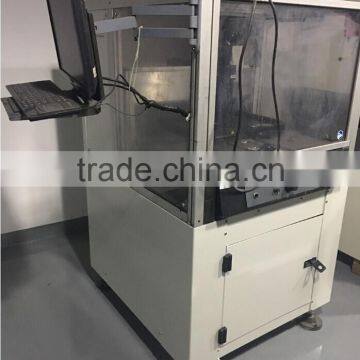

Used Asymtek S-820 glue dispenser machine

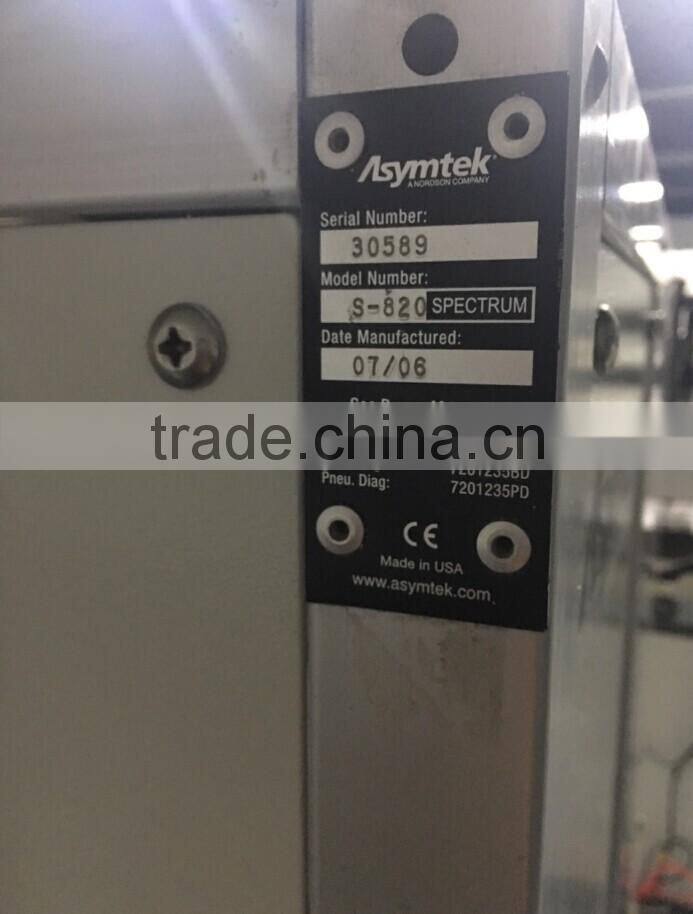

Specifications: Spectrum™ S-820B
Type: Brushless DC servo motors, closed loop with precision encoder feedback
Encoder resolution: X-Y 10 microns
X-Y repeatability: ±25 µm (0.001 in.)

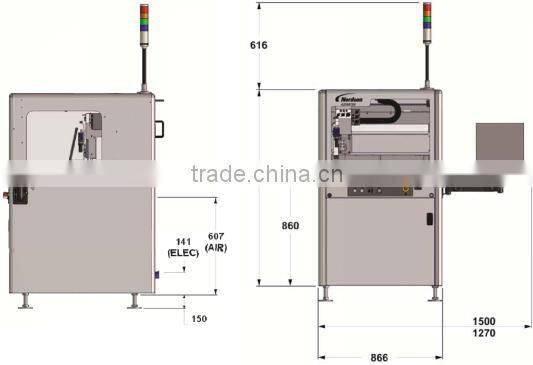

350 x 350 mm (14.0 x 14.0 in.)
Payload
Tool (z-axis): 3 kg (6.6 lbs)
Workpiece: 2 kg (4.4 lbs)
Vision: Vision system with Automatic
Pattern Recognition
Lighting: Programmable, on axis,red/blue LED, 255 light levels
The Spectrum™ S-820B Series system is designed for batch production of advanced dispensing processes, including underfill, cavity fill, die attach, and encapsulation. The S-820B provides advanced dispensing process capability in an affordable package, and is ideal for labs, batch production, and new product development.
The S-820B performs with a wide range of fluids, processes and substrates used in semiconductor packaging and assembly. It easily integrates with most Nordson ASYMTEK jets, pumps, and valves, including the DispenseJet® DJ-9500 and NexJet® System.
Nordson ASYMTEK’s advanced process control capabilities have been incorporated into the S-820B platform, bringing premium features to this batch system:
1.For valve and pump dispensing, Patented Mass Flow Calibration (MFC) uses weight-controlled dispensing and automatic calibration to deliver consistent fluid amounts throughout production.
2.For jet dispensing, Calibrated Process Jetting (CPJ) uses weight control to ensure precise volumetric repeatability and optimized line speed for jet-on-the-fly operations.
