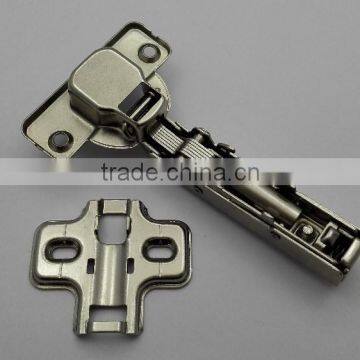

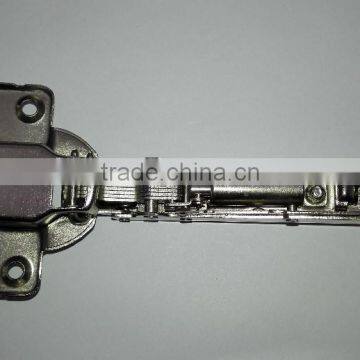

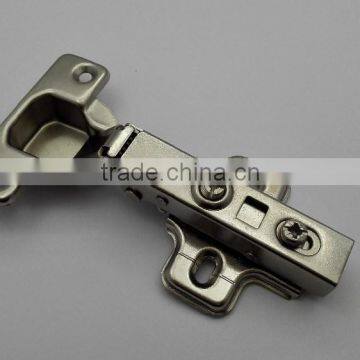

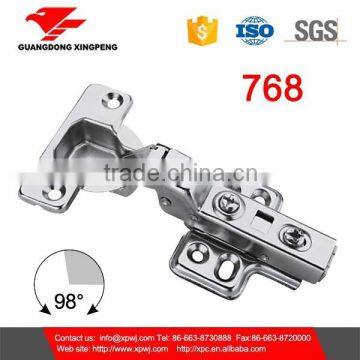

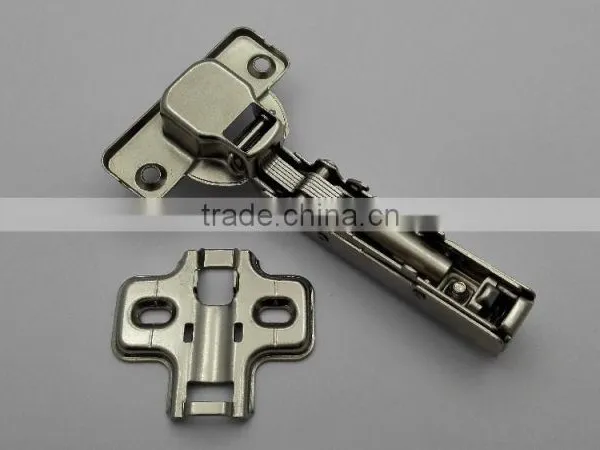

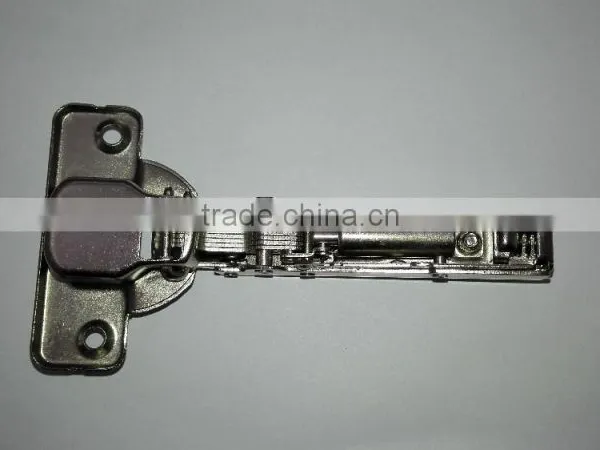

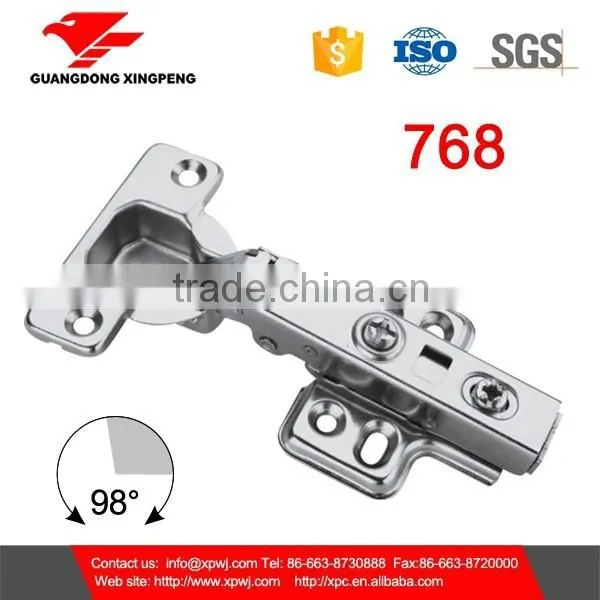

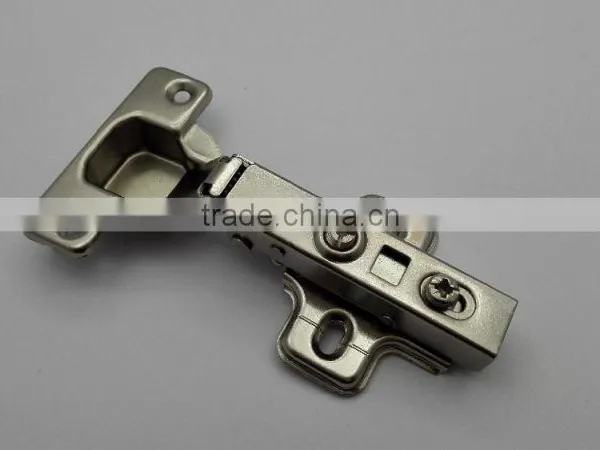

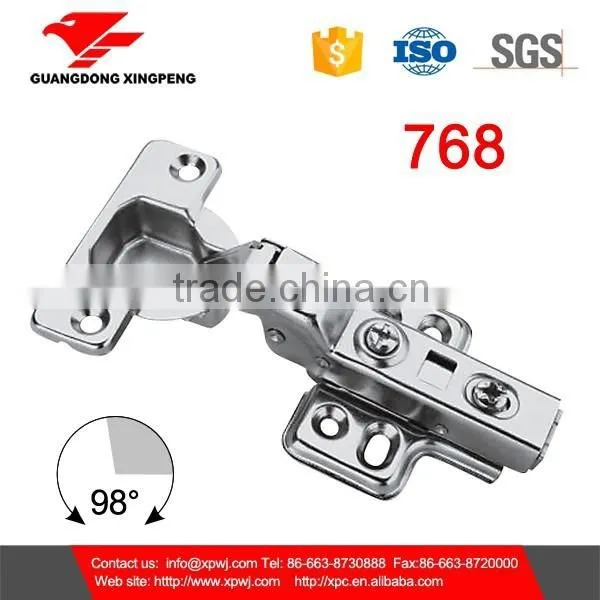

Item NO.: 768 hydraulic soft close hinge with 98 angle degree1.Characteristic:
(1)Two way hinge
(2)Base;clip on
(3)Hydraulic pressure cush
2. Specification form:
| (1)Material: | Steel with nickel plated |
| (2)Angle of opening: | 98 |
| (3)Cup diameter: | 35mm |
| (4)Depth: | 11.5 |
| (5)hole pitch: | 48mm |
| (6)suitble base: | base h=0 with one or two hole |
| (7)Net weight: | 98.5g |
| (8)three type: | Full overlay, Half overlay, Inset |
| (9)Sutable drill in door : | 3-8mm |
| (10)furniture board: | 5mm thickness |
| (11) Cycle test: | 50,000 times opening and closing guaranteed |
| (12)Other functions: | height and side adjustments |
| (13)Supply capacity: |
one month can product 5000000 peice of hinge , and 30days can delivery. |
| (14)websibe: |
1. More than 60000 Squar meter workshop (5 factories.)
2. More than 120 pcs punching machines.
3. More than 64 sets rolling slide machines.
4. More than 4 sets of automatic ball bearing slide assembling machines.
5. More than 20 sets of automatic hinge assembling machines.
6. Salt Spray test machines 3 set
7. Hinge and slide testing machines each two sets.
8. More than 500 staff working for your products and your success.
9. More than 30 QC checking quality (A. when the mould finished. B. when the first 20pcs components punch out. C. before doing the plating. D before components assembling. E. Before the goods we pack into carton box. F. random checking the goods in stock.
10. Experience in making or design for customer logo and carton box. More than 12 years export experience all over the world.
..........
| Certification | SGS,ISO9001:2000 |
| Packing: | each in polybag,20pcs in a inner box; 200pcs/carton |
| Delivery date: | around 30~45 days base on order quantity |
| MOQ | 5000pcs(XINGPENG BRAND) |
| Supply Ability | 100000pcs/month |
| Payment Term: | T/T; L/C or others |
| Samples offer | XingPeng will offer free samples base on reasonable quantity for quality inspection |
| samples arrangement: |
Samples wil be prepare to seding in about 3 working days DHL/Fedex: will be around 4~6 days to reach destination |
Please contact our After-sales department within 30 days after you received the cargo to give us some feedback.
Tel:0086-663-8730688 Time: 9:00a.m. ~6:00 p.m. (beijing)
| Problems confimatoin |
| Tiny problem: | Please provide the proof to photo or video to us. we will reply in two days time |
| Serious problem: | |
| A | WE WILL DISPATCH OUR QUALITY AND PROBLEM APPRAISERS TO MAKE A CONFIRMATION |
| B | HAVE A NEGOTIATION OF THE COMPENSATION AND SIGN AGREEMENTS |
| C | OUR AFTER SALES DEPARTMENT WILL PERFORM THE DUTIES AS THE AGREEMENTS |
|
XINGPENG STANDARD PRODUCTION PRECESSURE |
1 |
Reply the quotation within 24 hours after receive the inquiry |
2 |
New tooling cost and time replying within 48 hours |
3 |
Free samples (normal products) within 48 hours |
4 |
Within 12 hours send out the PI and PL Once we received the PO from customer |
5 |
Within 24 hours make the carton box design for customer confirmation |
6 |
Within 48 hours make the logo for customer confirmation(if needed) |
7 |
Within 48 hours run the production notice to production department |
8 |
When we making the components production will send photos for customer ref |
9 |
When assembling the components will send photos for customer ref |
10 |
When we packing the goods will send photos for customer ref |
11 |
When the goods in warehouse will send photos for customer ref |
12 |
One week before the goods ready will confirm shipping agent with customer |
13 |
Once finished the loading will send customer loading photos |
14 |
Send customer loading documents for customer to transfer the payment on time |
15 |
After receive the Balance payment within 24 hours confirm the contact details to send out the documents in time for customer |
Company: Guangdong Xingpeng Industrial Co., Ltd.
Contact: Cruse Su
Tel: 86-0663-8730688
Fax: 86-0663-8720000
skype:gdxingpeng
whatsapp:13580170228
wechat:13580170228
QQ:2851279121
