| 788 Specification: | |

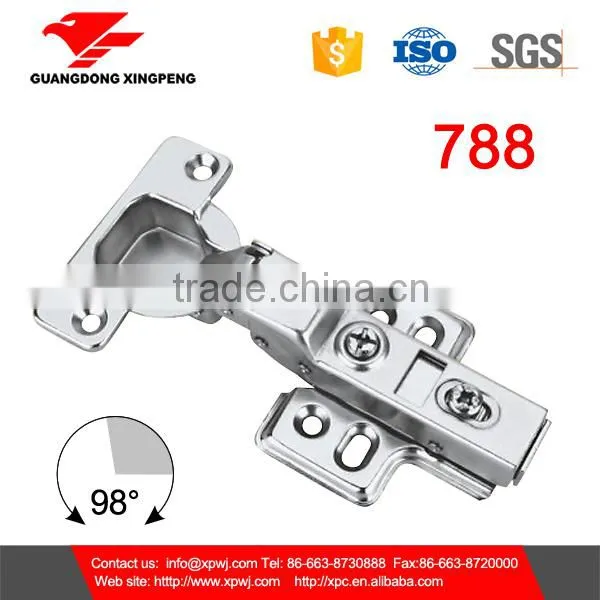

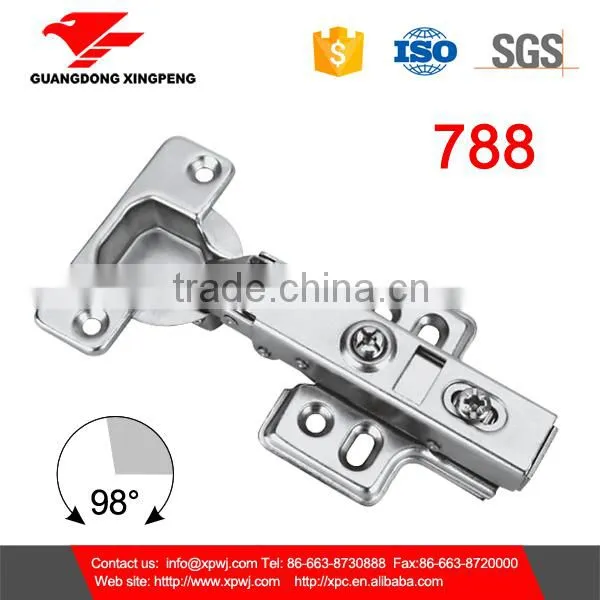

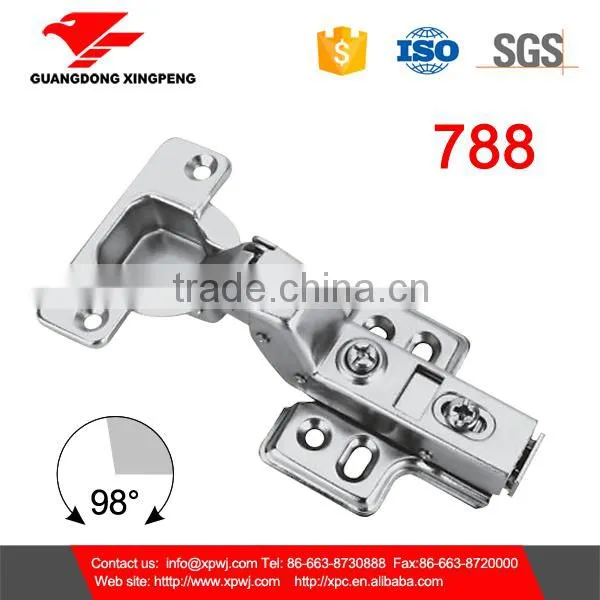

| Item no. | 788 Hydraulic Slow Close Type With Cup Cover Arm Cover Wardroabe Hinge |
| Material | Steel with nickel plated |
| Opening angle | 98° |
| Cup diameter | 35mm |
| Depth | 48mm |
| Hole pitch | 11.5mm |
| Bases | base h=0 with one or two hole |
| Screw | self-trapping screw and Euro screw available |
| Three types | Full overlay, Half overlay, Inset |
| Drill in door | 3-8mm |
| Door thickness | 5mm thickness |
| Cycle test | 50,000 times opening and closing guaranteed |
| Other function | height and side adjustments |
| Supply | one month can product 5000000 peice of hinge |
| Packing | 1pc/polybag or about 120pcs/big polybag, then put in a carton |
| Delivery time | 30 days after detail confirmation and deposit |
| Website | |
|

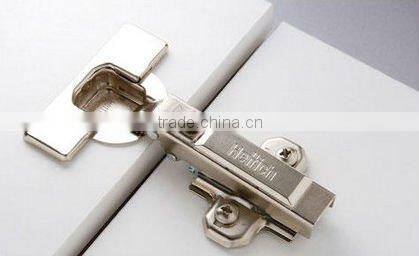

The concealed hinge is not visible externally. The standard opening angle is 95-110 °; special wide-angle hinges. For example television cabinets, can be opened to 165 degrees. Another important feature of this hinge is the adjustment: After installation, you can adjust the screws still hanging on wrong doors on the cabinet, and you don't need fret anymore. In addition, the locking mechanism can be set on a spring from gentle to vigorous (tension adjustment). |
| For kitchen furniture, living room and bedroom cabinets, use 35mm cup hinges, for smaller furniture such as cupboards for 26-mm cup hinges. As the ideal DIY hinge called Aufschraubscharnier. It can be quickly attached to door and body, since no necessary with pot hole. However, it offers less adjustability than the concealed hinge. Maximum opening angle is 170 °. | |
bisagra | bisagra oculta | bisagras cazoleta | bisagra cazoleta | bisagras invisibles
cerniera | cerniera anta | cerniera armadio | cerniera per porta | | zawias szafka
|
|
Full overlay Straight concealed hinge (resting)
Doors that are the body wall are secured with a straight concealed hinge, offset 0 mm.
|
|
|
|
Half overlay Cranked concealed hinge (middle panel)
The hinge at the center wall fence is offset by 9 mm (bent) to allow the door to open with enough space.
|
|
|
|
Cranked Concealed Hinge (Inset)
Inset: intermediate side wall and door need a few millimeters square. The bend (turn) is 22 mm
|
|
scharnier | scharnieren | tür scharnier | scharnier tür | scharniere |
Bases / mounting plates:
R1 H=0 R2 H=0
Hinge adjustment:
Tension adjustment; support adjustment, height adjustment, depth adjustment
Quality Commitment:
1) we have passed ISO 9001:2000 international quality management system
2) About 17 years experience of product and management
3) Adward” The famous trademarks of guangdong province”
"Famous brand products of guangdong province”
"National industry standard drafting unit”.
Service guarantee:
(1) We can delivery any type of hinges that you need to you.
(2) Quickly deliver product notice
(3) Deliver goods to custome as soon as posilble
(4) Estabilsh Mutually beneficial and win-win relationship, provide effective product information
| Recommended hot sale hinges: |
| one way hinge two way hinge hydaulic hinge |
|
|
| Certification | SGS,ISO9001:2000 |
| Packing: | each in polybag,20pcs in a inner box; 200pcs/carton |
| Delivery date: | around 30~45 days base on order quantity |
| MOQ | 5000pcs(XINGPENG BRAND) |
| Supply Ability | 100000pcs/month |
| Payment Term: | T/T; L/C or others |
| Samples offer | XingPeng will offer free samples base on reasonable quantity for quality inspection |
| samples arrangement: |
Samples wil be prepare to seding in about 3 working days DHL/Fedex: will be around 4~6 days to reach destination |
Please contact our After-sales department within 30 days after you received the cargo to give us some feedback.
Tel:0086-663-8730688 Time: 9:00a.m. ~6:00 p.m. (beijing)
| Problems confimatoin |
| Tiny problem: | Please provide the proof to photo or video to us. we will reply in two days time |
| Serious problem: | |
| A | WE WILL DISPATCH OUR QUALITY AND PROBLEM APPRAISERS TO MAKE A CONFIRMATION |
| B | HAVE A NEGOTIATION OF THE COMPENSATION AND SIGN AGREEMENTS |
| C | OUR AFTER SALES DEPARTMENT WILL PERFORM THE DUTIES AS THE AGREEMENTS |
