fabric laser cutting machine for home use(QL-1325)
timberland boots high quality Fabric/Acrylic/Wood/Granite cut co2 laser engraving cnc QL-1325
Technical specification:
Model |
QL-1325 |
Effective area |
1300*2500mm (customerized available) |
Laser power |
60w,80w,100w,130w,150w,180w |
Laser type |
10.6um,co2 sealed glass laser tube |
Cooling mode |
Water cooling |
Engraving scanning speed |
0-60000mm/min |
Cutting speed |
0-30000mm/min |
Laser energy control |
1-100% software setting |
Mini-shaping character |
Chinese character2.0*2.0mm,English1.0*1.0mm |
Max-scanning precision |
2500DPI |
Positioning precision |
0.01mm |
Supported graphic format |
DSP PLT BMP DXF AI |
Supported software |
Tiandao embroidery,photoshop,coreldraw,autoCAD |
Division cutting yes or no |
Yes |
power |
AC110V-220V+10%,50-60HZ |
Driving system |
Stepper motor |
Optional configuration |
Lift table,honeycomb table,rotary,double laser heads. |

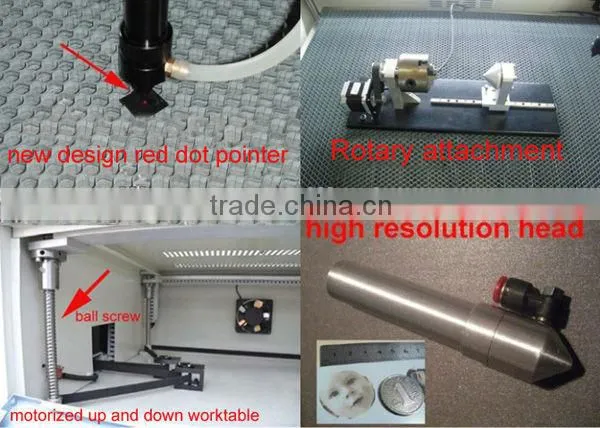

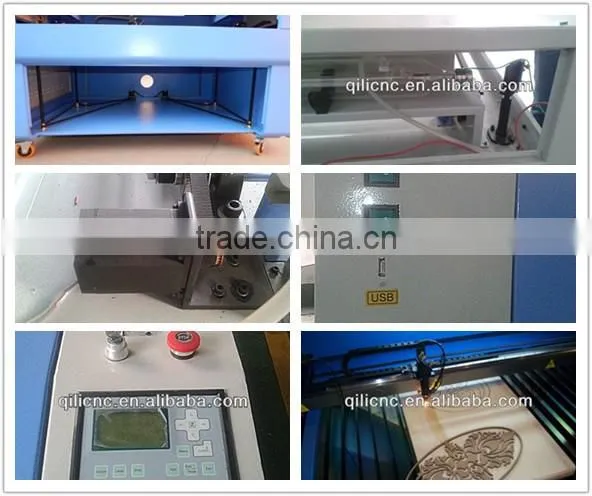

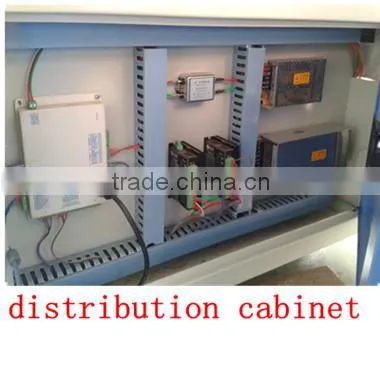

Details about the machine:
Product features:
1.QILI series of laser engraving cutting machines adopt new type,hi-speed laser tube,which make beam more stable than common laser tube,the service life of the laser tube can reach 1000 hours.
2.Compared with common laser engravers,QL series of laser engravers adopt more specific design of machine-body,higher strength steel frame structure,which make strength forty percent more higher,never deformable.
3.Humanized and most modernized design of appearance reflects caring idea of QILI,it is simple to operate and maintenance.
4.Advanced DSP control system and special motion control ship make the machines cut curve continuously and rapidly,the selection function of the shortest path makes efficiency higher.
5.All machined are configurated with U-disk offline control system,so it is more simple and easier to operate.
6.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position.
Applicable materials
Non-metal materials such as double color board, Plexiglas, glass, bamboo and wood, rubber, marble, granite and tiles, leather
Applicable industry
Mold industry(building model,air navigation mould,wood mould),advertisement trade,decoration trade,draft gift industry,electrical and electronic industry.
Acrylic,wood plate(cork wood,fortune paulownia wood),bamboo ware,double color plate,paper,leather,shell,coconut shell,ox horn,pitch,ABS plate,lampshade and other non-metal materials.
Samples made by co2 laser cutting machine:
Package:
About our Team:
CE Certification:
Looking for agents all over the world~~~~
Any more questions about the machine, pls contact me freely! hoping we can have a good cooperation.
perfect co2 laser engraving cutting machine for nonmetal materials.
