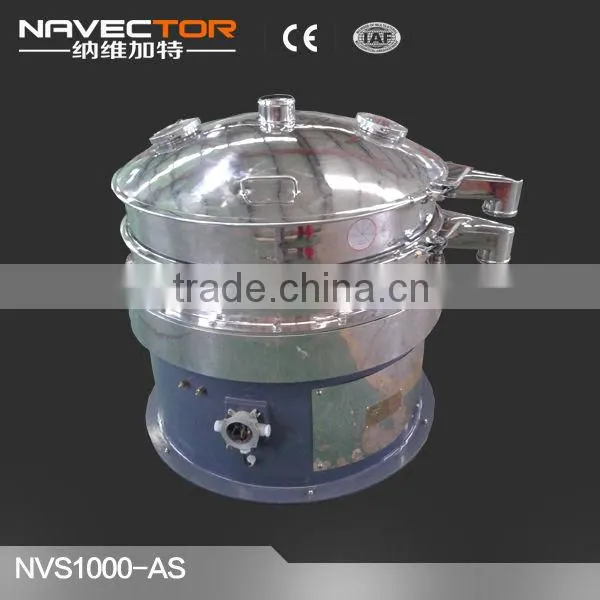

malted milk powder linear siever
- 50 Set / Sets per Month
- Shanghai Port
- T/T Credit Card
- Plastic Packaging Film Heat Seal Tester/Laboratory Heat Sealer / five points heat seal tester
- (ASTM D882) Electronic Tensile measurement
- (ASTM D882) tensile test
- Electronic Tensile Strength Testing Machine desktop tensile testing machine
- High quality cof tester (GM-4)
- GHH Multifunctional Universal Tensile Tester for peeling, bonding, sealing puncture and compression test.
Product Details
Condition: | New | Type: | Other, Separating Plant, Circular | Place of Origin: | Shanghai, China |
Brand Name: | Navector | Model Number: | NVS1000 | Certification: | ISO9001 |
Product Description
Specifications
2013 High efficiency Powder Sifter1.Low carbon, Energy-saving, performance.
2.Sieving rate: more than 95%.
2013 New High efficiency Powder Sifter
Structure: With bottom, vibrating motor, mesh, fasten ring,
sealing strips (rubber or gel silica), cover
Primary competive advantages: a. Brand-name parts: Navector b. Country of origin: China c. Gurantee/warranty: 1 year d. Packing: Wooden packing. Special fumigation-free wooden material. OR according to your requirement. e. Price. We promise a factory price for each machine. f. Product features: 1. Dust-proof, heat-proof, oil-proof, explosion-proof. 2. Green, Environment, Performance. g. Product performance: screening rate can arrive to no less than 95%. h. Prompt delivery: 15days i. Services: ±2% spare parts. j. Small order accepted. |
| |
Model | NVS-1000 |
Diameter | 970 mm |
Layer | 1 |
Mesh | 1mm |
Material | SUS304 and Q235A |
Mesh material: | SUS304 |
Reference capacity(for sand) | 2 t/h |
Feature: | Dust-proof, oil-proof, heat-proof Low carbon, energy-saving, environmental |
Consumption: | Low |
Amplitude | 3-5 mm |
Phase | 3 |
Voltage: | 110V/220V/240V380V/450V |
Power: | 0.75kw |
Frequency: | 50 or 60 HZ |
Protection grade: | IP55 or IP 65 |
Working environment | ≤40°C. ≤ 1000 m |
Noise: | 65-70 dB |
Way of working | Continuation |
Screening ratio | ≥95% |
Warranty: | 12 months |
Characters and usage: a. It absorbs the advanced technology from domestic and overseas, and adopts senior processing technic b. It is a kind of high-precision screening and filtering machine c. The vertical vibrating motor is the vibrating power of machine d. There are two eccentric blocks on the motor's upper and down e. The eccentric blocks make cubic element movement (horizonal, up-down, and tilting) f. By changing the eccentric block's included angle (the upper and down), the track that material moves on the mesh, will be changed So that the screening target will be realized
|
a. With a small volume and the light weight, it is easy to install and move. b. With a special mesh frame design and a long life for mesh, and it is easy to change and clean mesh c. All- closed design, no dust pollution, low noise. d. Different particles are graded eduction automatically, so the auto-operation can be realize e. The outlet's location can be adjusted to anywhere you need, it is very easy to form producing line f. Low consumption and noise, environmental-friendly and energy conservation |
Support to OEM order. Pls provide the follow information for us. a. material name, the density, water content(%). b. the necessary capacity you required(per hour) c. Machine material. Pls choose one: 1. SUS 304 or SUS316 2. All carbon steel 235 A 3. The contacting part is SUS304, the other parts is carbon steel. d. the dimension of the machine can be designed for you. e. Additional parts ,like the mobil wheel, removing-dust hole and noise-proof base,can be easily fixed and maintained
|
