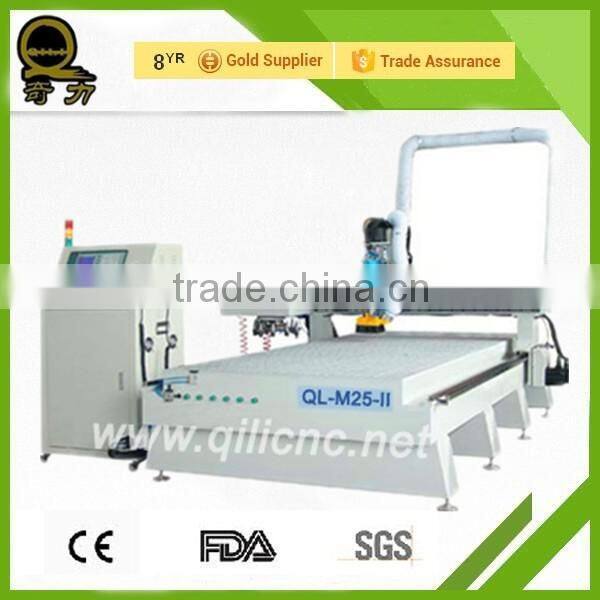

laptop 3d cheap cnc wood carving machine Disc tool changing 1325 wood cnc carving machine router
specifications
1 disc tool changing cnc router
2 8 tool magezine
3 servo system

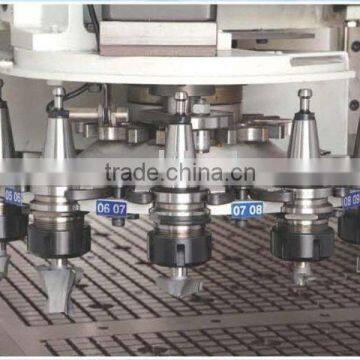

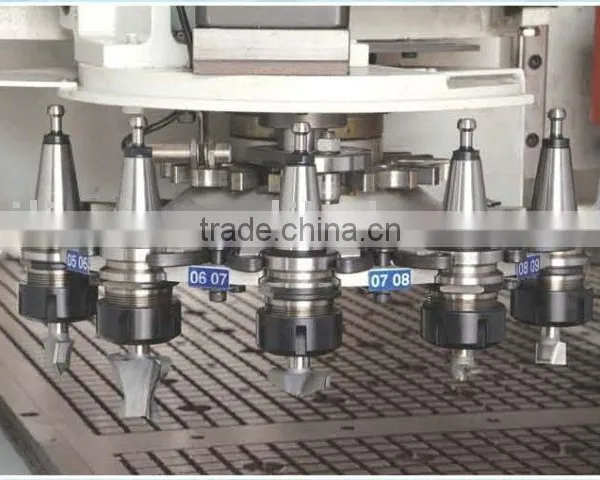

4 auto tool changer
5.6kw air-cooling(0-18000rpm)
Product Overview
QL Disc Tool changing CNC router series, i.,are at the service of High-end customers with high demand in automation,for its application suitable to 24hrs./day mass production.All the configuration are in high- end configuration for best performance and best quality and efficiency.
Product Features

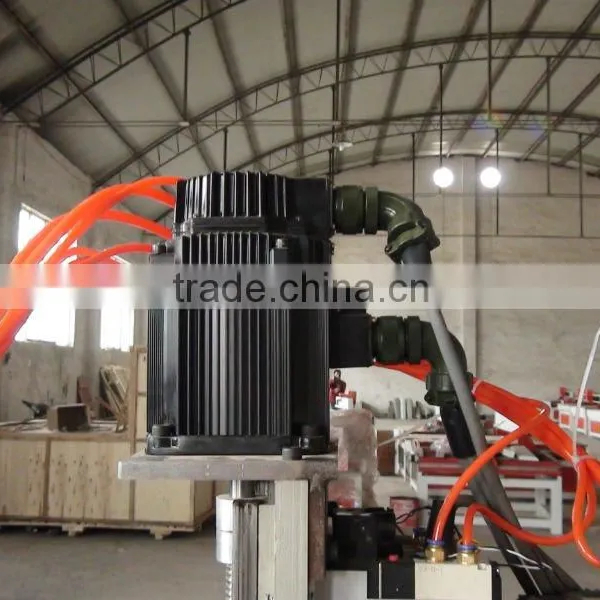

1.The machine bodys are welded with thick wall steel pipe, the treatment of hi-tempering ensures no defomation, good rigidity and high strength. 2.The key mechanism of machines are assembled with precision parts and Japan-made hi-torque servo motor,which featurs running stability,low noise,hi-speed and positioning precision.
3.The air-cooled ATC spindle made in Italy makes machines durable, hi-precision,stably running, and the machines are configurated with imported tool magazine,special tool setting table can compensate tool length error precisely.
4.The table-board of double cavity type adsorption is of hi-strength milled Bakelite,so absorption is higher.

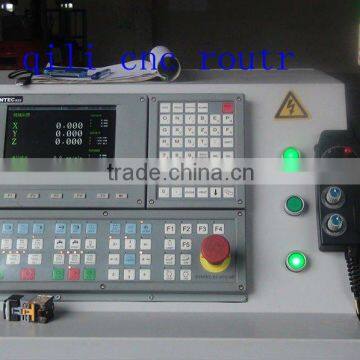

5.Advanced imported system, split keyboard control,color LCD screen, powerful, functionl.
6.Powerful dust-aborpting system can ensure no dust-flying when production.
7.Driving mode Y hi-precision gear rack, XZ imported ball screw, XYZ guide rack, spare linear guide.
Technical Specification
| Model | QL-M25 | Optional |
| Working Area(X*Y*Z,mm) | 1300*2500*200 | Customization is available |
| Tool Magazine | Line type,8pcs | 12/24pcs |
| Machine Structure | Square tube structure lathe bed and vacuum table | vacuum table with T-slot |
| Work Holding | By vacuum | By vacuum and clamps |
| Overall Dimensions(mm) | 2250*3300*2000 | |
| Precision(mm) | 0.07 | |
| Positioning accuracy(mm) | 0.02 | |
| Repeatability(mm) | 0.02 | |
| Idling Speed(mm/min) | 30.000 | |
| Working Speed(mm/min) | 20.000 | |
| Spindle | 6.0kw Air-cooling(0-18000rpm) | |
| Available Tools(mm) | 3.175-12.7 | |
| Drive System | Japanese YASKAWA Servo System | Panasonic |
| Working Voltage | AC380V/50HZ | |
| Command Code | G Code(*.nc.*.mmg.*.u00,ect.),*.eng | |
| Control System | Taiwan Syntec System | Taiwan LNC System |
| Compatible Software | Compatible with any software generating G code file in Window 98/XP/7 | |
Scope of application
1.Wood product processing:Sewing machine table,electrical counter table,sports equipment.
2.Furniture Decoration Industry:A large area flat plate engraving,wood, panel furniture carving,wood art murals,
wood cabinet doors carving.
3.Wood Products Processing:Sewing machine table, electrical counter table, sports equipment.
4.Musical Instrument Industry:Instrument three-dimensional surface engraving,shape cutting.
5.Electronic Industry:Circuit board,insulation material.LED display screen.

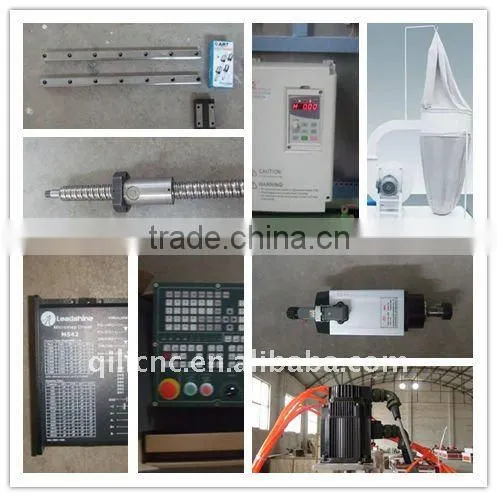

Details of machine
Samples show
Factory&Packing
Jinan Hongye CNC Machine Co.,Ltd is a professional manufactuer of CNC Routers. We are CNC Machine factory with 13 years experience and mainly deal inWoodworking/Stone/Advertisement/Metal/Plasma Machine&Laser engraver.
We have own factory and we can produce the machine according to your requirement.
We have other machines and you can contact us if you need it.
Exhibition&Clients
Our clients are from all over the world,welcome to join us!!!
Certificate
SALES NETWORK
Guarantee&Aftersales Service
1.Guarantee for one year.
2.24-hour technical support by email or phone.
3.User-friendly English manual and video CD for machine using and maintaining.
4 .Providing free operation training service in our factory.
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer
We are looking forward to your inquiry,all kinds of machines you can choose,welcome to visit our factory.
Contact: Tel:0086-531-88611918
