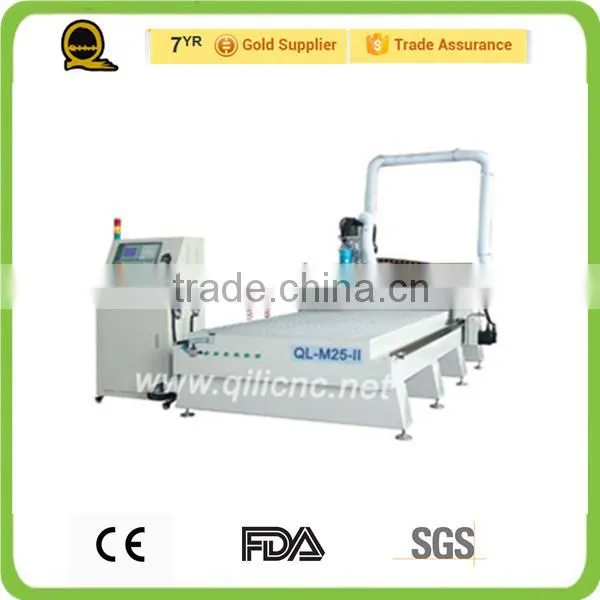

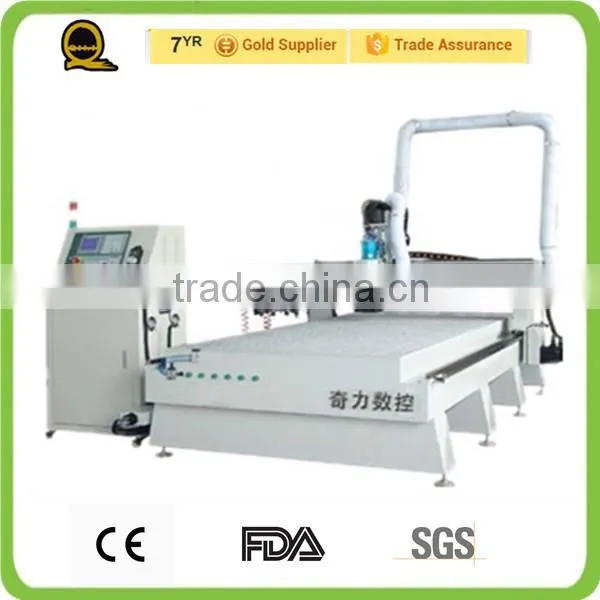

ATC woodworking machine wood engraver cnc
Produce feature
The models of excellence that the price of the High Accuracy ATC CNC Router models, with the M25 lies in the difference between the main tool change, three-axis machines Drive, Drive, etc., are the main components of the machines have to import high Client configuration, the double-track bilateral Taiwan-motivation, also a heavy cutting-processing models.
More independence
1, sub-keyboard control: simple, convenient and easy to learn the sub-keyboard operation, the user can quickly flexibility to use the equipment. 2, Taiwan's advanced CNC control systems, intelligent processing cross-border protection functions: to prevent the layout design of the processing rate of more than caused by Machinery collision phenomenon. Intelligent processing speed control: the processing speed can be controlled, truly improve processing efficiency, extended tool life, Improve the yield. 3, cleaning, adsorption devices: cleaning system in the course of processing wood and broken suction take Mo, to maintain the disguise of the table clean equipmen, For the maintenance; absorption system to replace the previous mechanical plate fixed to improve the processing time for handling outside the plate.
4, the paper pretreated advanced features to help users promptly corrected the mistakes in processing documents, and to good-compatible domestic and foreign multi - Kind of software (such as Mastercam, Typ3, UG, Artcam, Caxa, etc.) generated by the processing code. Advanced three-dimensional curves prediction algorithm, the presentation of A smooth line to ensure that the curve of speed and accuracy. 5, windows-based platform for the NC embedded systems, upgrading of unlimited expansion. Synchronization of anti-jamming software and hardware design, to ensure that System time reliable operation. A breakpoint, continued carving off function, back to square with automatic correction features, effectively guaranteed in a long timeThe accuracy of processing work. 6, with two seamless steel structure used welding, rigid strong, not deformed.
Technical data
| 1 | Table size | 1600*3100mm |
| 2 | X,Y working area | 1300*2500mm |
| 3 | Z working area | 380mm |
| 4 | Processing precision | 0.02mm |
| 5 | Reposition precision | 0.05mm |
| 6 | Table structure | Vacuum table |
| 7 | X,Y,Z structure | Z ballscrew X,Y gearwheel |
| 8 | Self-consuming power | 2.8KW |
| 9 | Max ilding speed | 40000mm/min |
| 10 | Max working speed | 25000mm/min |
| 11 | Spindle power | 6.0KW |
| 13 | Working voltage | AC380V/50Hz |
| 14 | Spindle rotating speed | 0-24000rpm/min |
| 15 | Drive Motor | Japan servo motor |
| 16 | Operation system | Taiwan LNC control system |
| 17 | Net weight | 2000kg |
| 18 | Gross weight | 2300kg |
Appliable Fields:
Woodworking 3D wave plate processing, furniture industry, decorative material, cabinet door, computer table, kitchen utensils, wood door carving, cabinets and panels, plastic fabrication, model making, art crafts, musical instrument, plate.
Samples
certificate
Our team:
We have an excellent team ------Professionaliazation, cooperation, vitory.
Exhibition
Our customers come from all the world.
Contact:
Tell:0086-531-88611918 Web:
