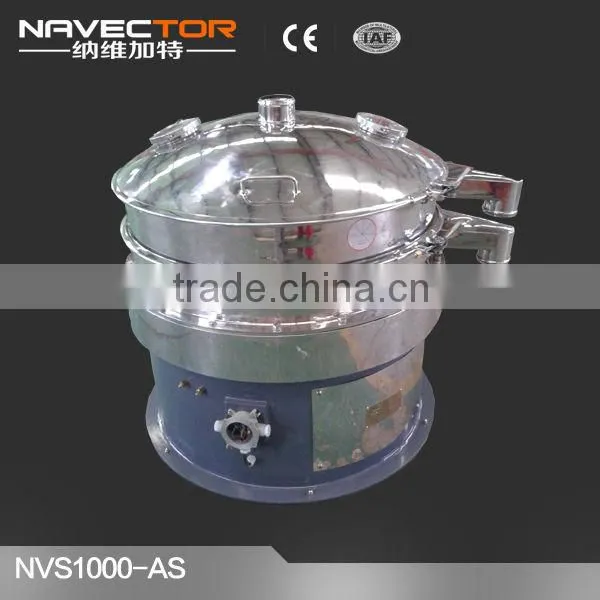

Separate Solids From Liquids Vibratory Screener

Separate Solids From Liquids Vibratory Screener thumbnail-1
Separate Solids From Liquids Vibratory Screener photo-1
US$ 1,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, separate solids from liquids vibratory screener
Product Type:
Other, separate solids from liquids vibratory screener
Contact Supplier Request Quote Chat Now
Shanghai Navector Electrical & Mechanical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port or any china port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, separate solids from liquids vibratory screener
Product Type Other, separate solids from liquids vibratory screener
Place of Origin Shanghai, China
Brand Name Navector
Model Number NVS1200-AS
Voltage 380V,or 415V or customized
Power(W) 0.7Kw
Weight 380kg
Dimension(L*W*H) 1660*1200*1060mm
Certification CE&ISO
Warranty 13 Month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

separate solids from liquids vibratory screener
1.GMP ,FDA ,SS304 or SS316L
2.CE &ISO
3.Sieve:5mm-15 micro



removing foreign matter filter equipment
 separate solids from liquids vibratory screener

  separate solids from liquids filter equipment

1.GMP ,FDA ,SS304 or SS316L
2.CE &ISO
3.Sieve:5mm-15 micro
4.Warraty:13 month







separate solids from liquids vibratory screener
Item Vibrating Screen
Application Powder,particle material.Liquid
Mainly Usage Screening / Separation / Filtration
Diameter 400mm,600mm,800mm,1000mm,1200mm,1500mm
Deck 1-4 Decks
Construction material Stainless steel 304 & Painted carbon steel
Diameter of top inlet Φ150,Φ200,Φ250
Diameter of outlet Φ100,Φ140,Φ150,Φ170,Φ200
Motor Power: 0.1kw,0.2kw, 0.5kw, 0.7kw, 1.5kw
Parameter: 3 phase, 380V, 50HZ or 3 phase, 415V, 50HZ.(Customized)
Package wooden case
MOQ 1 set
Lead time 15-20 working days
separate solids from liquids vibratory screener



separate solids from liquids vibratory screener

separate solids from liquids vibratory screener



separate solids from liquids vibratory screener





separate solids from liquids vibratory screener

1.Circular screen separator segregates solids from liquids or dry material into various particle sizes ranging from 51 mm to 0,018 mm  (635 mesh)


2.Easy to install, can be equipped to separate up to 5 sizes with up to 4 screen decks incorporated in one Navector Vibro Sifter.


3.Standard models range in size from 400 mm to 1800 mm


4.Screens are easy and fast to change and can be equipped with various cleaning system as: balls, kleeners, starbrush, and the innovative ultrasonic cleaning system


5.The vibro sifter is avaiable constructed of carbon steel, stainless steel AISI 304 or stainless steel AISI 316.


6.On request: ATEX certification, FDA  GMP avaialable.





      More Questions,Please contact Shanghai Navector Team!



 separate solids from liquids vibratory screener

separate solids from liquids vibratory screener

*With 8 Years production of Screening


* More than 20 Countries  clients loves our products


* All of our products have passed the evaluation of ISO9001 and CE certification.


* The Chinese leading screening products provider and the technology design center


* meh size:5mm to 15 micro



*  World leading cleaning system:Swiss Artech Ultrasonic system





separate solids from liquids vibratory screener

1. What it does..????.


a:Separate solids from liquids or segregate dry materials into various sizes.





2.What's the application????

separate solids from liquids vibratory screener separate solids from liquids vibratory screener



separate solids from liquids vibratory screener separate solids from liquids vibratory screener





2. How it works ???

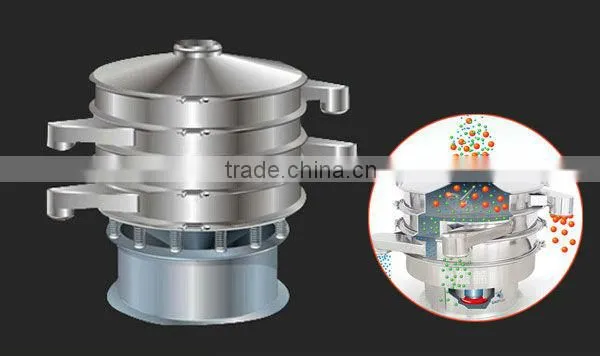

 Basically,Naector separator is a vibratory screening device that vibrates about its center of mass. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery.


3. Any self-cleaning devices on the sieving machine ???
Yeah,  Navector's Self Cleaning Kits aid in screen cleaning for increased screening efficiency. By reducing the amount of near-size particles lodged in the openings of the wire mesh (blinding), the Self Cleaning Kit improves dry sizing and liquid/solid separation. Navector offers several options with Self Cleaning Kits, including sliders, ball trays and power wipers





4. How many kinds of material are supported???
A. All stainless steel (201, 304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.



5. About the phase


0.12-0.55 kw single phase and three phase are both supported.
0.55-2.2 kw   Three phase is just supported.





6. About the voltage


110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).





7. How long is the warranty?


The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because different usage, the wearing parts will have different life.





8. OEM order and labeling services are supported???


Yeah, OEM order and labeling services are supported. And we seek global partners.



9. Whether the site visits is supported or not???


Yeah, site visits will be highly welcome. Airport picking up and hotel booking are both supported. half hour to both HongQiao international Airport and Pudong Airport.





                                 No Matter where you are located,



                               Shanghai Navector will provide you



                   with the best screening and separating service in the industry .
