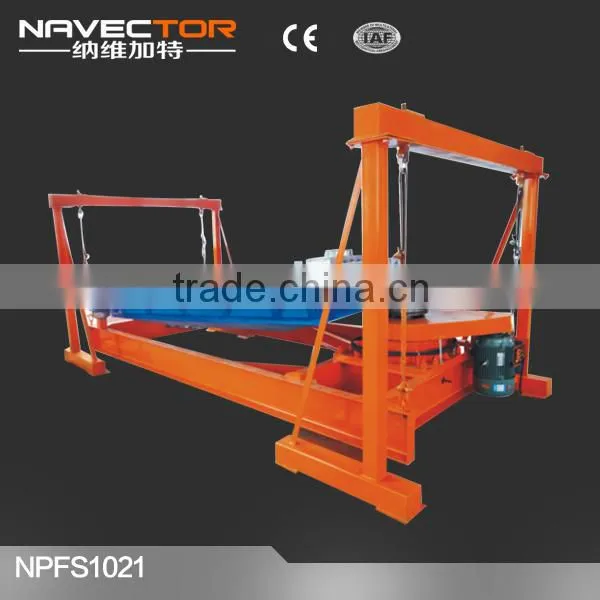

Powder Coating Gyratory Separator

Powder Coating Gyratory Separator photo-1

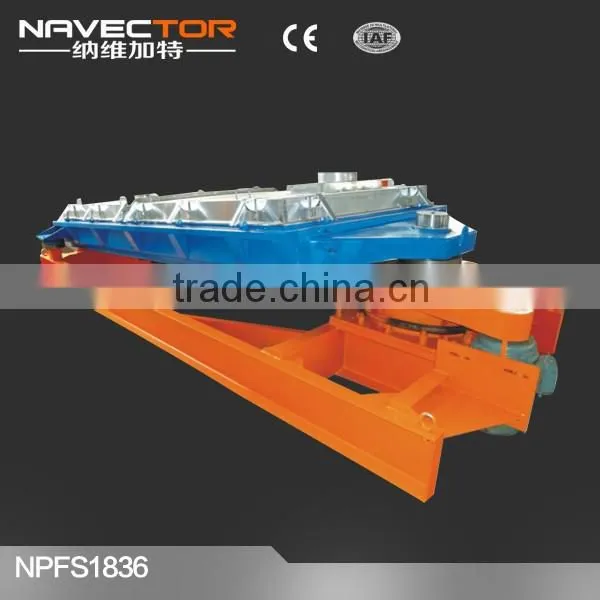

Powder Coating Gyratory Separator photo-2
US$ 1,000 - 5,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Place of Origin Shanghai, China
Brand Name Navector-Powder Coating Gyratory Separator
Model Number NPFS
Voltage 380V
Certification CE,ISO9001
Warranty 1 year
After-sales Service Provided Overseas third-party support available

  Powder Coating Gyratory Separator



Powder Coating Gyratory Separator





1.GMP ,FDA ,SS304 or SS316L
2.CE &ISO
3.Sieve:5mm-15 micro
4.Warraty:13 month







Model sizes

500x1000,500x1500,1000x2100,1000x3000,1500x3000,1800x3600,2000x5000

Layer

1~6 decks

Mesh

up to 325 mesh

Mesh material:

Stainless steel 304,316L,201,Nylon

Using Range:

Separate solids from liquids or segregate dry materials into various sizes.Materials can be Pharmaceutical / Chemical/ Food/ Metal /Coatings/Ceramics/Cosmetic powders or liquids.

Voltage:

3 phase, 380V, 50HZ or
(Customized)

Power:

0-300W Adjustable

Screening ratio

≥95%

Warranty:

13 months

Particle feed size:
150micron up to 20 mm
Feed rates:
Up to 65T/h
Anti blinding systems:

- Rubber balls
- Rotating plastic roller brush arms
- Ultrasound converters
- Combinations

Motor power
1.5kw,2.2kw,4kw,5.5kw,7.5kw,11kw

Powder Coating Gyratory Separator


Screening ratio is very high,Screen production is huge, Sieving machine do little destructive to  the tructure of material itself.



Circular motion at the feed end

• Spreads the material across the full width of the screen surface

• Stratifies the material

• Aggressively conveys material forward

Changing to elliptical motion at the middle of the deck

• Long stroke elliptical action

• Enhances product stratification

• Conveys material at high capacity

Reciprocating motion at the discharge end

• Removes near-size particles

• Improves screening efficiency

• No vertical component ensures material is in constant contact with the

screen surface



Powder Coating Gyratory Separator

Powder Coating Gyratory Separator



Powder Coating Gyratory Separator





Powder Coating Gyratory Separator

1.Circular screen separator segregates solids from liquids or dry material into various particle sizes ranging from 51 mm to 0,018 mm  (635 mesh)


2.Easy to install, can be equipped to separate up to 5 sizes with up to 4 screen decks incorporated in one Navector Vibro Sifter.


3.Standard models range in size from 400 mm to 1800 mm


4.Screens are easy and fast to change and can be equipped with various cleaning system as: balls, kleeners, starbrush, and the innovative ultrasonic cleaning system


5.The vibro sifter is avaiable constructed of carbon steel, stainless steel AISI 304 or stainless steel AISI 316.


6.On request: ATEX certification, FDA  GMP avaialable.





      More Questions,Please contact Shanghai Navector Team!



 Powder Coating Gyratory Separator

Powder Coating Gyratory Separator

*With 8 Years production of Screening


* More than 20 Countries  clients loves our products


* All of our products have passed the evaluation of ISO9001 and CE certification.


* The Chinese leading screening products provider and the technology design center


* meh size:5mm to 15 micro



*  World leading cleaning system:Swiss Artech Ultrasonic system





Powder Coating Gyratory Separator

1. What it does..????.


a:Separate solids from liquids or segregate dry materials into various sizes.





2.What's the application????

Powder Coating Gyratory Separator Powder Coating Gyratory Separator



Powder Coating Gyratory Separator Powder Coating Gyratory Separator





2. How it works ???


 Basically,Naector separator is a vibratory screening device that vibrates about its center of mass. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery.


3. Any self-cleaning devices on the sieving machine ???
Yeah,  Navector's Self Cleaning Kits aid in screen cleaning for increased screening efficiency. By reducing the amount of near-size particles lodged in the openings of the wire mesh (blinding), the Self Cleaning Kit improves dry sizing and liquid/solid separation. Navector offers several options with Self Cleaning Kits, including sliders, ball trays and power wipers





4. How many kinds of material are supported???
A. All stainless steel (201, 304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.



5. About the phase


0.12-0.55 kw single phase and three phase are both supported.
0.55-2.2 kw   Three phase is just supported.





6. About the voltage


110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).





7. How long is the warranty?


The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because different usage, the wearing parts will have different life.





8. OEM order and labeling services are supported???


Yeah, OEM order and labeling services are supported. And we seek global partners.



9. Whether the site visits is supported or not???


Yeah, site visits will be highly welcome. Airport picking up and hotel booking are both supported. half hour to both HongQiao international Airport and Pudong Airport.





                                 No Matter where you are located,



                               Shanghai Navector will provide you



                   with the best screening and separating service in the industry .
