Specifications
1. 16 channel software dvr card h.2642.support 2 HDD
3.with 8ch Alarm Function
4.2 Year Warranty

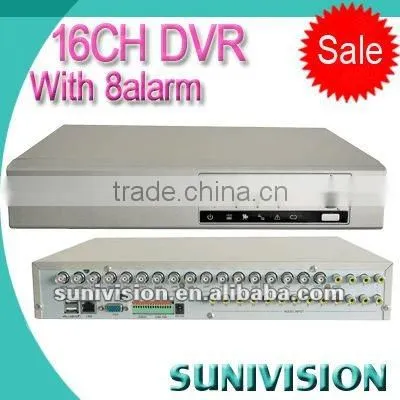

16 channel software dvr card
Fuctions
1.H.264 video compression
2.support 16CH playback simultaneously
3.support multiplex
4.support D1.HD1.CIF recording resolutions
5.support PTZ control via built-in RS-485 port
6. Support 26 languages
Specifications
Video Compression Format |
H.264 |
Video System |
NTSC / PAL |
GUI OSD |
YES |
Video Input(BNC) |
16CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
Video Output(BNC) |
1CH BNC output |
Audio Input/Output |
16CH audio input,1CH audio output(RCA) |
Maximum Recording Rate(4CH D1+12CH CIF recording) |
D1:704×480 pixels with 208 IPS /704×576 pixels with 176 IPS HD1:704×240 pixels with 208 IPS /704×288 pixels with 176 IPS CIF:352×240 pixels with 480 IPS /352×288 pixels with 400 IPS QCIF:176×120 pixels with 480 IPS /176×144 pixels with 400 IPS |
Image Quality Setting |
Supper Best,Well,Good,Medium,Normal and Bad |
Hard Disk Storage |
Support 2 SATA HDD,unlimited for the capacity |
Loop out |
NO |
Alarm Input/Output |
8CH alarm input,1CH alarm output |
Multiplex Operation |
Live display/record/playback/backup/network transmit |
Recording Mode |
Manual/Timer/Motion |
Playback Mode |
Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
|
Backup Device |
USB flash drive,USB hard disk,USB DVR-RM and network backup |
Pre-alarm Recording |
Recording for 10 seconds before alarming |
Network Protocol |
TCP/IP,DHCP,DNS,DDNS,PPPoE,FTP,UPNP,E-mail,IP rights and NTP |
Ethernet remote view |
Support remote surveillance up to 10 users simultaneously |
CMS software |
YES |
Mobilephone View |
YES |
Electronic zoom |
YES |
VGA Interface |
YES |
Log record function |
YES |
Image Tour |
YES |
IR Remote control& USB Mouse |
YES |
Video Loss Detection |
YES |
Video Adjustable |
Hue /Saturation /Contrast /Brightness adjust |
PTZ Control |
YES,built-in RS-485 port |
RS232 interface |
YES,built-in RS-232 port |
Power Source |
DC 12V |
Key Lock(Password Protection) |
YES |
Power-down recovery function |
YES |
Size(mm) |
370(W) x 72(H) x285(D) |
After-Sale Services:
All our products have 2 year warranty,
And we sure the product will be free from maintenance within warranty period.
Faster delivery:
Within 5 days for sample after payment cleared.
Within 5-10 days for medium & large order after payment cleared.
Remark:
1, can design and print packing box according to your requirements.
2, can put your logo & model No. & series No. on the cameras and packing Box
....
