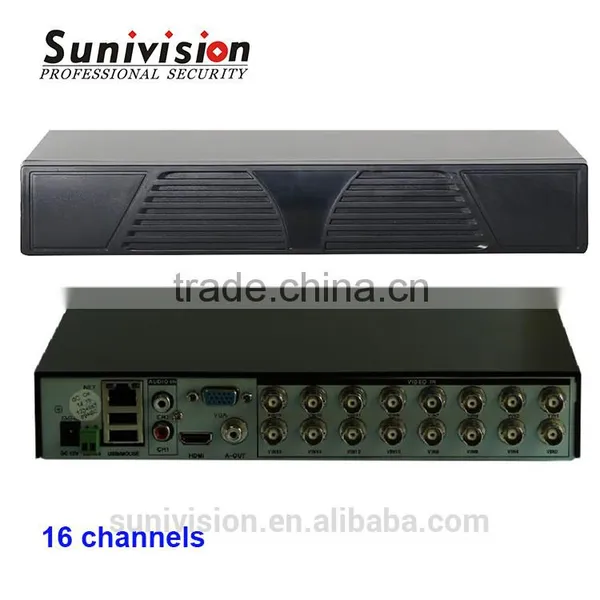

support 3G wifi h 264 16 channel dvr card Fuctions
1.H.264 video compression
2.support 16CH playback simultaneously
3.support multiplex
4.support D1.HD1.CIF recording resolutions
5.support PTZ control via built-in RS-485 port
6. Support 26 languages
Specifications
Video Compression Format | H.264 |
Video System | NTSC / PAL |
GUI OSD | YES |
Video Input(BNC) | 16CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
Video Output(BNC) | 1CH BNC output |
Audio Input/Output | 16CH audio input,1CH audio output(RCA) |
Maximum Recording Rate(4CH D1+12CH CIF recording) | D1:704×480 pixels with 208 IPS /704×576 pixels with 176 IPS HD1:704×240 pixels with 208 IPS /704×288 pixels with 176 IPS CIF:352×240 pixels with 480 IPS /352×288 pixels with 400 IPS QCIF:176×120 pixels with 480 IPS /176×144 pixels with 400 IPS |
Image Quality Setting | Supper Best,Well,Good,Medium,Normal and Bad |
Hard Disk Storage | Support 2 SATA HDD,unlimited for the capacity |
Loop out | NO |
Alarm Input/Output | 8CH alarm input,1CH alarm output |
Multiplex Operation | Live display/record/playback/backup/network transmit |
Recording Mode | Manual/Timer/Motion |
Playback Mode | Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
|
Backup Device | USB flash drive,USB hard disk,USB DVR-RM and network backup |
Pre-alarm Recording | Recording for 10 seconds before alarming |
Network Protocol | TCP/IP,DHCP,DNS,DDNS,PPPoE,FTP,UPNP,E-mail,IP rights and NTP |
Ethernet remote view | Support remote surveillance up to 10 users simultaneously |
CMS software | YES |
Mobilephone View | YES |
Electronic zoom | YES |
VGA Interface | YES |
Log record function | YES |
Image Tour | YES |
IR Remote control& USB Mouse | YES |
Video Loss Detection | YES |
Video Adjustable | Hue /Saturation /Contrast /Brightness adjust |
PTZ Control | YES,built-in RS-485 port |
RS232 interface | YES,built-in RS-232 port |
Power Source | DC 12V |
Key Lock(Password Protection) | YES |
Power-down recovery function | YES |
Size(mm) | 370(W) x 72(H) x285(D) |
After-Sale Services:
All our products have 2 year warranty,
And we sure the product will be free from maintenance within warranty period.
Faster delivery:
Within 5 days for sample after payment cleared.
Within 5-10 days for medium & large order after payment cleared.
Remark:
1, can design and print packing box according to your requirements.
2, can put your logo & model No. & series No. on the cameras and packing Box
...
