Factory 2015 Hot Selling Dvr Support 4CH Realtime D1 DVR Recorder

Factory 2015 Hot Selling Dvr Support 4CH Realtime D1 DVR Recorder thumbnail-1
Factory 2015 Hot Selling Dvr Support 4CH Realtime D1 DVR Recorder photo-1
US$ 48 - 52 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
sunivision
Model Number:
AP-9614HV
Contact Supplier Request Quote Chat Now
Sunivision Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name sunivision
Model Number AP-9614HV

Factory 2015 hot selling  dvr Support 4CH realtime D1 DVR Recorder



Factory 2015 hot selling dvr Support 4CH realtime D1 DVR Recorder





H.264 DVR- AP-9614HV `s Features



  • H.264 main profile compression algorithm ideal for standalone DVR
  • 4 channels Realtime full D1 recording and real time multi channels playback
  • Support TV,VGA output simultanuously
  • Support Network and mobile remotely monitoring such as iPhone, Blackberry, Android, Symbian and Windows mobile
  • Multiple control methods:front panel,IR remote controller,USB mouse
  • Support 2*USB 2.0 port for mouse,backup,,movable hard disk,upgrade etc...
  • Alarm triggering screen tips,buzzer,PTZ preset,email &FTP upload
  • Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
  • Powerful network software:built-in web server,multi-DVR client &SMS Networking access for remote live viewing,recording,playback,setting,system statu,event log,email & ftp function
  • Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support WEB client, standalone client and SDK
  • With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up
  • Support 15 kinds of languages such as English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish



Factory 2015 hot selling dvr Support 4CH realtime D1 DVR RecorderFactory 2015 hot selling dvr Support 4CH realtime D1 DVR RecorderFactory 2015 hot selling dvr Support 4CH realtime D1 DVR RecorderFactory 2015 hot selling dvr Support 4CH realtime D1 DVR Recorder



H.264 DVR- AP-9614HV `s Specifications



System

Model

AP-9614HV

Main Processor

High performance embedded microprocessor HI3515

Operating System

Embedded LINUX

System Resources

Pentaplex function:live,recording,playback,backup & remote access

User Interface

GUI,on-screen menu tips

Display

1/4

Video

Video Standards

PAL 625 line,50 f/s;NTSC 525 line,60 f/s

Video Compression

H.264 main profile

Video Recording

D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s

Encode capacity

100/120fps(D1)

Motion Detection

Zones:192(16*12)detection zones

Audio

Audio Compression

G711A

Bidrectional Talk

Support

Record &

Playback

Recording Mode

Manual>Alarm>Video Detection>Continuous

Playback

Multi channels playback simultaneously,pause,stop,rewind,fast play, slow play,next file,previous file,repeat,shuffle,backup selection

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage &

Backup

Space Occupation

Audio 28.8MB/H ;Video 25~450 MB/H

Record Storage

Local Hard disk and Network

Backup Mode

Network download/movable HDD

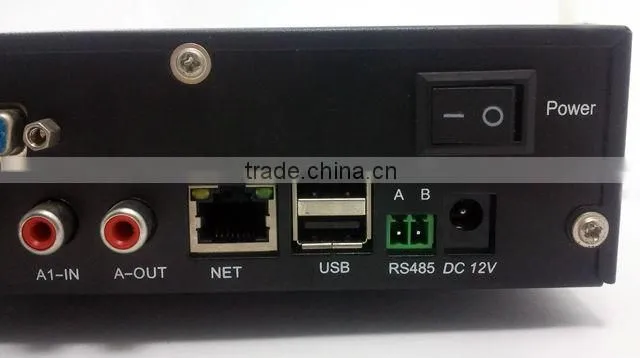

Interface

Video Input

4channel

Video Output

1 channel TV output BNC,1.0Vp-p,75Ω,1 VGA output ,

Audio Input

1 channel

Audio Output

1 channel

Alarm Input

N/A

Relay Output

N/A

Net Interface

RJ-45 (10M/100M)

PTZ Control

Support

USB Interface

2 x USB2.0

Hard Disk

2SATA ports(Max 2048G)

Environmental

Power Supply

12V/2A

Power Consumption

<10W(not include Hard disk)

Working Temperature

0°C-+55°C

Working Humidity

10%-90%

Atmosphere Pressure

86kpa-106kpa

Dimension

325 x 48 x 255mm

Weight

2.1kg



Welcome to buy samples for testing!





-------------------------------------------------------------------------------------------------------------------------------



PROMISE



Our service
1.Any inquiries will be replied in 24 hours  IP Camera
2.Professional manufacturer.Welcome to visit our factory in Guangzhou City
3.OEM/ODM service offered.Any of your designs are welcomed
4.High quality, fashion designs ,reasonable&competitive price,fast delivery date.  IP Camera







After-sale Services:
All our products have 2 year warranty,And we sure the product will be free frome maintenance within warranty period.  IP Camera




Faster delivery:
Within 3 days for sample after payment cleared  IP Camera



 Within 20 days for mass production after payment cleared  IP Camera




Remark:
1,can design and print packing box according to your requirements.
2,can put your logo&modelNo. on the cameras and packing box   IP Camera
