Promotion drivers mini digital camera

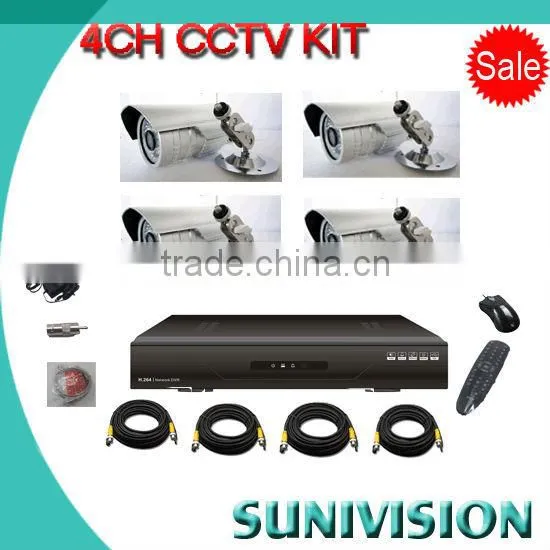

Accessories:
4pcs outdoor dome camera 1/4"Sony 420tvl 24 ir leds
1pc 4CH/8CH/16CH/24CH/32CH H.264 DVR with VGA, support mobile monitor
4pcs 20meter(65ft) video+power Cable
1pc Power supply for 4 camera 12V DC 3A
1pc 1 metre crossed network patch lead
1pc BNC to TV connector
1pc DVR mouse
1pc DVR remote control
4pcs CCTV Sign
DVR introduction:
H.264 4CH DVR, with VGA output
Support IE and mobile monitor
Support 4CH realtime CIF record
Support 1pc 1T SATA HDD
PLAYBACK synchronously MAX 4CH
With CMS central control software
Support Iphone, BlackBerry, Android and Mobile phone monitor
Video Compression Format |
H.264 |
Video System |
NTSC / PAL |
GUI OSD |
YES |
Video Input(BNC) |
4CH BNC input(composite video signal 1Vp-p 75 BNC) |
Video Output(BNC) |
1CH BNC output |
Audio Input/Output |
1CH audio input,1CH audio output(RCA) |
Maximum Recording Rate(CIF/HD1/D1) |
D1:704x480 pixels with 120 IPS <NTSC> /704x576 pixels with 100 IPS <PAL> HD1:704x240 pixels with 120 IPS <NTSC> /704x288 pixels with 100 IPS <PAL> CIF:352x240 pixels with 120 IPS <NTSC> /352x288 pixels with 100 IPS <PAL> QCIF:176x120 pixels with 120 IPS <NTSC> /176x144 pixels with 100 IPS <PAL> HD1:704x240 pixels with 104 IPS <NTSC> /704x288 pixels with 88 IPS <PAL> D1:704x480 pixels with 52 IPS <NTSC> /704x576 pixels with 44 IPS <PAL> |
Image Quality Setting |
Supper Best,Well,Good,Medium,Normal and Bad |
Hard Disk Storage |
Support one SATA HDD,unlimited for the capacity |
Alarm Input/Output |
No |
Multiplex Operation |
Live display/record/playback/backup/network transmit |
Recording Mode |
Manual/Timer/Motion |
Playback Mode |
Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
|
Backup Device |
USB flash disk / Network |
Pre-alarm Recording |
Recording for 10 seconds before alarming |
Network Protocol |
TCP/IP PPPOE DDNS and NTP |
Ethernet remote view |
Support remote surveillance up to 10 users simultaneously |
SNS software |
YES |
Mobilephone View |
YES |
VGA Interface |
YES |
Log record function |
YES |
Image Tour |
YES |
IR Remote control |
YES |
Video Loss Detection |
YES |
Video Adjustable |
Hue /Saturation /Contrast /Brightness adjust |
PTZ Control |
YES,built-in RS-485 port |
USB Mouse |
YES |
Power Source |
DC 12V 3A |
Key Lock(Password Protection) |
YES |
Power-down recovery function |
YES |
Size(mm) |
250(W) x 45(H) x 224(D) |
MODEL |
AP-143G |
Image Device |
1/4" SONY |
TV Format |
PAL/NTSC |
Number of Pixel |
NTSC: 510x492/ PAL: 628x582 |
Sync.System |
Internal |
IR LED |
24 units IR LEDs |
IR Effective Range |
UP to 15 meters |
Minimum Illumination |
0LUX(IR ON) |
LEN |
f3.6MM/6MM (F2.0) |
IP Rating |
IP66 |
AGC |
AUTO |
S/N Ratio |
≥48dB |
Smart Light Control |
YES |
Gain Control |
Auto |
White Balance |
Auto(2500°K~9500°K) |
Electronic Shutter |
Auto E Shutter:1/60(1/50)~1/100000 Sec(PAL) 1/60~-1/120,000 Sec(NTSC) |
Back light Compensation |
AUTO |
Video Output |
1.0Vp-p composite 75ohm |
Power Consumption |
300mA |
Power Supply |
DC12V |
Operation Temp |
-10°C~+50°C |
|
|
|
|
1.3megapixel Two-way audio detection cctv wifi ip camera
|
wireless cctv dvr ir camera kit | wireless CCTV ip camera with speaker microphone |
Sunivision Technology Development Co., Ltd. is a leading and professional CCTV manufacturer located in Guangzhou, China. Sunivision was established in 2008, with 2000 square meter factory and 150 employees including 5 R&D engineers and 10 person for quality control, 15% of the year sales volume will be put into R&D, 2-5 New products will be come out every month.
Sunivision sepcialized in researching, producing and exporting CCTV Analog Cameras, AHD Cameras, Digital Cameras (IP Camera, CVI Camera, TVI Camera etc.) and Stnad-alone DVRs, CVI DVR, AHD DVR, NVR, providing the most stable digital security solutions.
