top 10 dvr manufacturer support onvif and p2p function 4ch mini ahd dvr
Features:

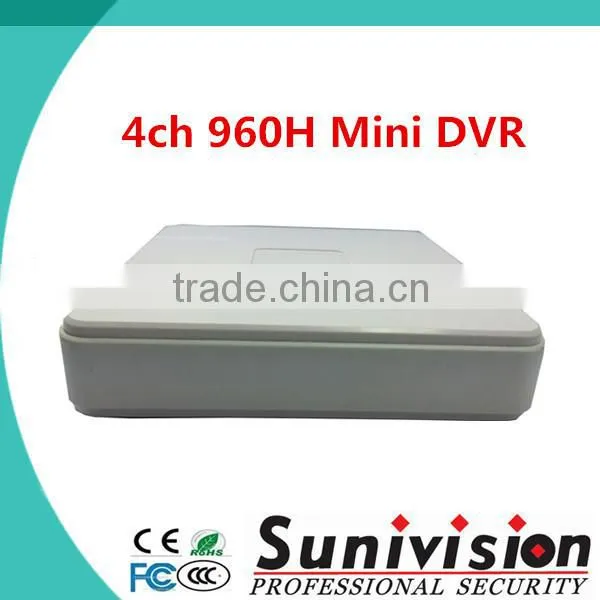

4CH 960H MINI DVR, with VGA output
Support IE and mobile monitor
DVR Audio input/ouput: 1CH/1CH
DVR Features:
| Model | AP-D7804R-EL |
| System | |
| Main Processor | High performance embedded microprocessor HI3515A |
| Operating System | Embedded LINUX |
| Video | |
| Input | 4CH* D1/4CH*960H |
| Output | 1 VGA, 1 BNC |
| Alarm | |
| Sensor Input | N/A |
| Output | N/A |
| Motion Detection | N/A |
| Display | |
| VGA | Resolution: 1024×768,1280×720,1280×1024 |
| HDMI | Resolution: 1080P(1920×1080) 720P(1280×720) |
| Display Split | 4 / 1Channel |
| Digital Zoom | NO |
| OSD | Camera title, Time, Video loss, Recording, Motion Detection |
| Recording | |
| Video Compression | H.264 |
| Resolution | 1080P(1920×1080) / 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480) |
| Record Rate | PAL:200fps |
| NTSC:240fps | |
| Record Mode | Timer Motion Detection |
| Playback & Backup | |
| Local Sync Playback | 1-8ch Multi-channel Simultaneously playback |
| Remote Sync Playback | NO |
| Search Mode | ALL, Channel, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play |
| Backup Mode | USB Device |
| Network | |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions | HTTP, IPv4, TCP/IP, DNS, DHCP |
| Onvif Version | Support Onvif 2.4 |
| Web Browser | IE6-11 |
| CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 |
| Cloud Support(P2P) | Yes |
| Smart Phone | iPhone, iPad, Android, Android PAD |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to4TB capacity |
| General | |
| Language | English,Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, |
| Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish | |
| USB Interface | 2 USB 2.0 Interfaces |
| Power Supply | DC12V/2A |
| Working Environment | -10~55℃/10~90% |
| Dimension(W×D×H) | 255* 225* 45mm |
| Weight | 1.0KG (withou HDD) |
More Hot Sale Products:
Application:
Sunivision has CE & ROHS for both DVR & CCTV CAMERAS.
Sunivision Technology Development Co.,Ltd. is a leading and professional CCTV manufacturer located in Guangzhou,
China. Sunivision was established in 2008 ,with 2000 SQUARE METER factory and 150 employees including 5 R&D
engineers and 10 person for quality control,15% of the Year Sales Volume will be put into R&D,2-5 New Products will
be come out every month!
Sunivision specializes in researching, producing and exporting CCTV Analog Cameras, AHD Camera,
Digital camera(IP Camera,CVI Camera etc.)
and Stand-alone DVRs,CVI DVR ,AHD DVR,NVR, providing the most stable digital security solutions.
Teamwork Shows:
A. Prompt Reply
B. OEM&ODM:
- Printing logoon the camera;
- Customized camera housing;
- Customized package box
C. Fast Delivery:
2-7 working days for sample after payment cleared.
4-12 working days for medium & large order after payment cleared.
D. Payment
You can pay for order via T/T, Western Union, Paypal,L/C
E. Shipping
We have strong cooperation with DHL, TNT,UPS, Fedex.EMS. China Air post.sea
You aslo can choose you own shipping forwarder
F. After sale service:
- Any technologic problems and quality problems,you can contact us by email or by phone.
- We will do our best to help to sovle your any problems as soon as possible.
- Free repair within two years,except huma
G. Warranty:
- Free repair within two years,except human factors.
Q.May I print our company logo on package box and camera and DVR?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is your method of payment?
A:Pay via T/T,Western Union,Escrow,L/C is welcome.
Q.What is Minimum Order Quantity?
A:Minimum Order Quantity is 50pcs,but sample order is welcome.
