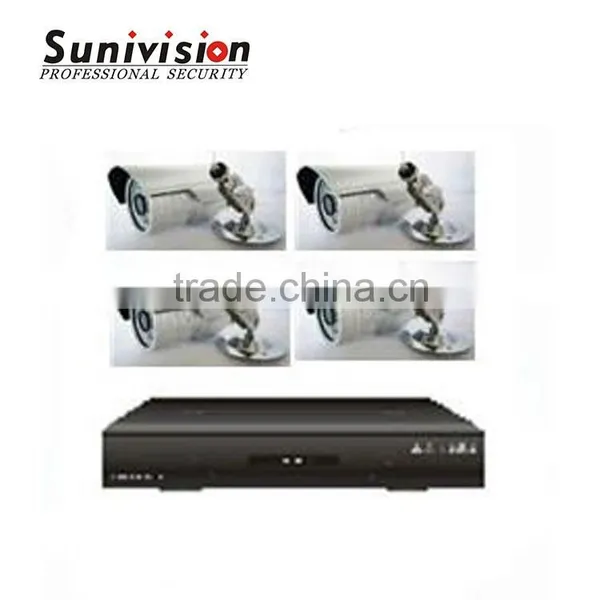

2016 best selling 4CH 8ch 24ch HD DVR KIT or CCTV Camera System,indoor and outdoor 800tvl security cctv camera system
Packing details:
2pcs metal dome camera sony 420TVL 24pcs IR leds (AP-144G)
2pcs outdoor bullet camera sony 420TVL 36pcs IR leds (AP-1474A)
1pc 4CH H.264 DVR with VGA, support mobile monitor (AP-9604HV)
4pcs 20meter(65ft) video+power Cable
1pcs Power supply for 4 camera 12V DC 3A
1pc 1 metre crossed network patch lead
1pc BNC to TV connector
1pc DVR mouse
1pc DVR remote control
4pcs CCTV Sign
Camera Specifications:
MODEL |
AP-144G/ AP-1474A |
Image Device |
1/3" SONY |
TV Format |
PAL/NTSC |
Number of Pixel |
NTSC: 510x492/ PAL: 512x582 |
Resolution |
420 TV lines |
Sync.System |
Internal |
IR LED |
24 units IR LEDs |
IR Effective Range |
UP to 15 meters |
Minimum Illumination |
0LUX(IR ON) |
LEN |
f3.6MM/6MM (F2.0) |
IP Rating |
IP66 |
AGC |
AUTO |
S/N Ratio |
≥48dB |
Smart Light Control |
YES |
Gain Control |
Auto |
White Balance |
Auto(2500°K~9500°K) |
Electronic Shutter |
Auto E Shutter:1/60(1/50)~1/100000 Sec(PAL) 1/60~-1/120,000 Sec(NTSC) |
Back light Compensation |
AUTO |
Video Output |
1.0Vp-p composite 75ohm |
Power Consumption |
300mA/350mA |
Power Supply |
DC12V |
Operation Temp |
-10°C~+50°C |
DVR Specification:
System |
Model |
AP-9604HV |
Main Processor |
High performance embedded microprocessor HI3515 |
|
Operating System |
Embedded LINUX |
|
System Resources |
Pentaplex function:live,recording,playback,backup & remote access |
|
User Interface |
GUI,on-screen menu tips |
|
Display |
1/4 |
|
Video |
Video Standards |
PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
Video Compression |
H.264 main profile |
|
Video Recording |
D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s |
|
Encode capacity |
100/120fps(D1) |
|
Motion Detection |
Zones:192(16*12)detection zones |
|
Audio |
Audio Compression |
G711A |
Bidrectional Talk |
Support |
|
Record & Playback |
Recording Mode |
Manual>Alarm>Video Detection>Continuous |
Playback quality |
Multi channels playback simultaneously,pause,stop,rewind,fast play, slow play,next file,previous file,repeat,shuffle,backup selection |
|
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
Storage & Backup |
Space Occupation |
Audio 28.8MB/H ;Video 25~450 MB/H |
Record Storage |
Local Hard disk and Network |
|
Backup Mode |
Network download/movable HDD |
|
Interface |
Video Input |
4channel |
Video Output |
1 channel TV output BNC,1.0Vp-p,75Ω,1 VGA output , |
|
Audio Input |
4 channel |
|
Audio Output |
1 channel |
|
Alarm Input |
N/A |
|
Relay Output |
N/A |
|
Net Interface |
RJ-45 (10M/100M) |
|
PTZ Control |
Support |
|
USB Interface |
2 x USB2.0 |
|
Hard Disk |
1SATA ports(Max 2048G) |
|
Environmental |
Power Supply |
12V/2A |
Power Consumption |
<10W(not include Hard disk) |
|
Working Temperature |
0°C-+55°C |
|
Working Humidity |
10%-90% |
|
Atmosphere Pressure |
86kpa-106kpa |
|
Dimension |
325 x 48 x 255mm |
|
Weight |
2.1kg |
|
|
|
| 1080p wireless wifi ip camera | wireless cctv dvr ir camera kit | wireless CCTV ip camera with speaker microphone |
Sunivision Technology Development Co., Ltd. is a leading and professional CCTV manufacturer located in Guangzhou, China. Sunivision was established in 2008, with 2000 square meter factory and 150 employees including 5 R&D engineers and 10 person for quality control, 15% of the year sales volume will be put into R&D, 2-5 New products will be come out every month.
Sunivision sepcialized in researching, producing and exporting CCTV Analog Cameras, AHD Cameras, Digital Cameras (IP Camera, CVI Camera, TVI Camera etc.) and Stnad-alone DVRs, CVI DVR, AHD DVR, NVR, providing the most stable digital security solutions.
