Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | ZHONGLI | Model Number | ZLHB-446 | |
| Voltage | 380 V, can be customized according to user's needs | Power(W) | 80 KW | |
| Dimension(L*W*H) | 1200*1200*1800mm | Weight | 3500 kg | |
| Certification | ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Product Description

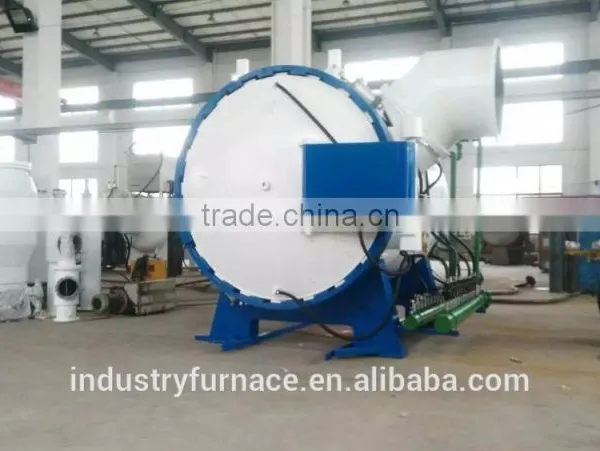

ZLHB series high temperature vacuum brazing furnace
Application
This furnace is mainly used for stainless steel, titanium alloy, high temperature alloy, cemented carbide, nonferrous metals, copper for vacuum brazing.
Advantages
1.Cooling mode: this furnace using external circulation cooling mode, heating and cooling is separated and independent.

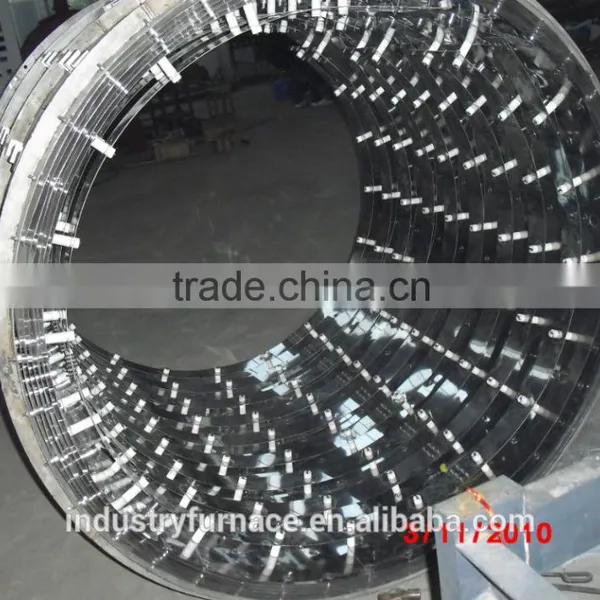

2.Using whole metal shield for heat preservation, can guarantee the required high vacuum degree when workpiece brazing.
3.Using multi -zone temperature control mode heating, can guarantee the excellent temperature uniformity within temperature control zone.
Technology support
Our company has professional laboratory equipment and technicians, can offer support to customer in product process, such as cemented carbide brazing, stainless steel and copper brazing, copper and copper brazing, stainless steel and stainless steel brazing, alloy brazing and so on.
Selection guide
This furnace is divided into two types, horizontal type and vertical type.
In addition to our regular models, various special specifications vacuum brazing furnace can be also designed and manufactured as user's needs.
| Model | Effective zone size (mm) | Loading capacity(kg) | Heating material | Heating power (kw) | Maximum temperature (℃) | Temperature uniformity (±℃) | Final vacuum (Pa) | Pressure rising rate (Pa/h) |
| ZLHB-335 | 300×300×500 | 100 | molybdenum/graphite | 60 | 1300 | 5 | 6×10-3 | 0.5 |
| ZLHB-446 | 400×400×600 | 200 | molybdenum/graphite | 80 | 1300 | 5 | 6×10-3 | 0.5 |
| ZLHB-557 | 500×500×700 | 300 | molybdenum/graphite | 100 | 1300 | 5 | 6×10-3 | 0.5 |
| ZLHB-669 | 600×600×900 | 500 | molybdenum/graphite | 150 | 1300 | 5 | 6×10-3 | 0.5 |
| ZLHB-8812 | 800×800×1200 | 800 | molybdenum/graphite | 210 | 1300 | 5 | 6×10-3 | 0.5 |
