4ch h.264 network dvr video surveillance system

Specifications

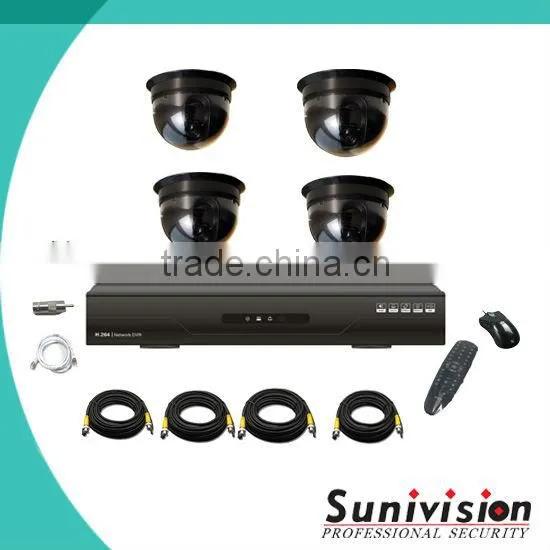

4ch h.264 network dvr video surveillance system
4pcs indoor cctv camera sharp 650tvl
1pcs h.264 DVR
4pcs BNC+Power cables

4ch h.264 network dvr video surveillance system



Packing detail

4pcs plastic dome camera sharp 650tvl

1pc   4CH H.264 DVR with VGA, support mobile monitor
4pcs 20meter(65ft) video+power Cable
1pc   Power supply for 4 camera  12V DC 3A
1pc   1 metre crossed network patch lead
1pc   BNC to TV connector
1pc   DVR mouse
1pc   DVR remote control
4pcs  CCTV Sign





DVR Specification:



4CH DVR; Support Remote Control by IE, Iphone, Android, Symbian, BlackBerry and Mobile System
H.264 compression; Video Input/Output:4CH/1CH; Audio Input/Output:1CH/1CH; With VGA output
Display Frame Rate:NTSC:120fps/ PAL:100fps
Recording Frame Rate:NTSC:120fps / PAL:100fps
Support 1pc 2T SATA HDD;
Support 1ch D1-3CH CIF OR 4ch Full CIF realtime recording.
PLAYBACK synchronously MAX: 4CH;
With CMS central control software
Support PTZ control via built-in RS-485 port



Camera Specifications:



MODEL	AP-2111
Image Device	1/3 sharp 650TVL
Effective Pixel	NTSC: 811x558/ PAL: 795x656
Resolution	650TVL
Sync. System	Internal
Minimum Illumination	0LUX(IR ON)
S/N Ratio	no less than 48dB
Gain Control	Auto
White Balance	Auto(2500degree K~9500degree K)
Electronic Shutter	Auto E Shutter:1/60(1/50)~1/100000 Sec
Back light Compensation	AUTO
Lens Mount Type	3.6mm
IR LEDS
IR Distance
AGC	AUTO
Smart Light Control	YES
IP Rating	IP66
Video Output	1.0Vp-p,75Ω
Power Consumption	150mA
Power Supply	DC12V
Operation Temp	-10~+50degree







Welcome to buy samples for testing!

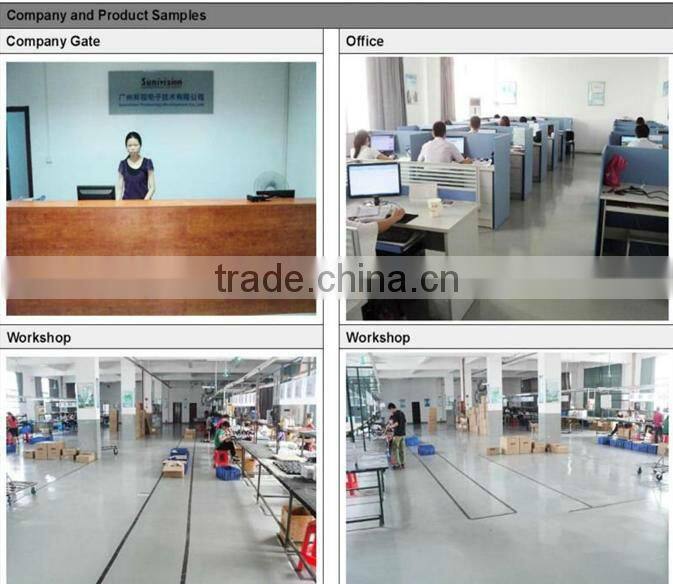

Our Company :





 Sunivision Technology Development Company Limited is the leading professional manufacturer for camera cctv, dvr in China. We export camera cctv to all of the world, over one hundred of countries. Our camera cctv enjoy a very good fame among our customers for stable performance.



We have 5 professional engineers for R&D camera cctv. All the camera cctv software is developed by ourselves according to customer’s special requirement for color, brightness, lux. We could provide different layout of the camera cctv board for different customers.







1. We have 6 production line for camera cctv, and our daily camera cctv out put is 2000pcs.



2. We have enough material stock for camera cctv. We could make quick delivery for camera cctv



3. We have strict QC inspection for camera cctv so that we could keep the stable quality for camera cctv:







· Lens fix for camera cctv



· Assembling test for camera cctv



· Semi-product test for camera cctv



· Led production for camera cctv



· 24 hours Aging for camera cctv



· Night vision testing for camera cctv



· Final inspection for camera cctv



· Logo printing for camera cctv

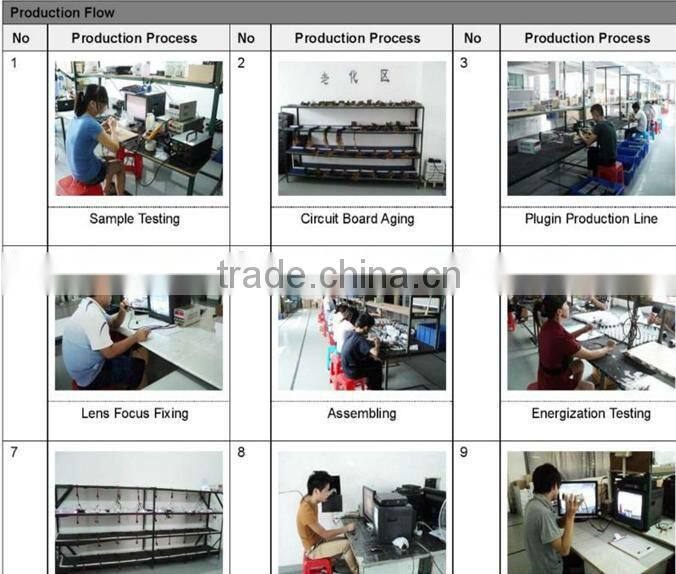

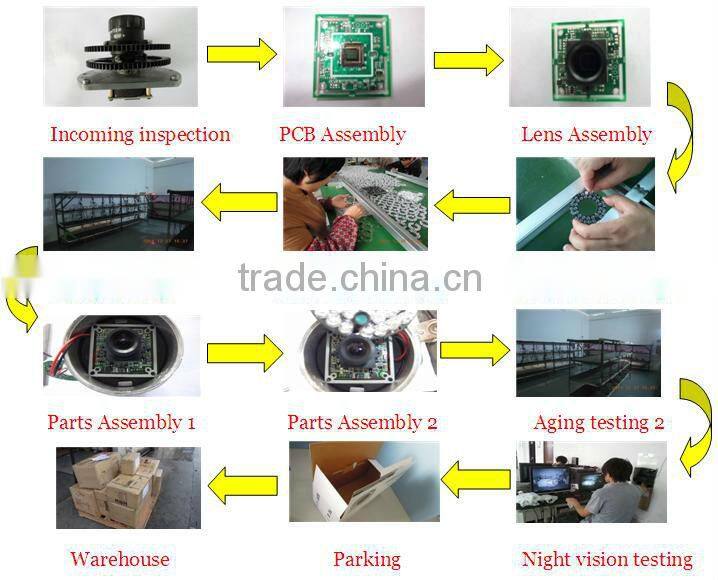

Products Process:







Exhibition:











After-Sale Services:



All our products have 2 year warranty, And we sure the product will be free from maintenance within warranty period.







Faster delivery:



Within 3 days for sample after payment cleared.



Within 3-7 days for medium & large order after payment cleared.







Remark:



1, can design and print packing box according to your requirements.



2, can put your logo & model No. & series No. on the cameras and packing Box



Products packing:
