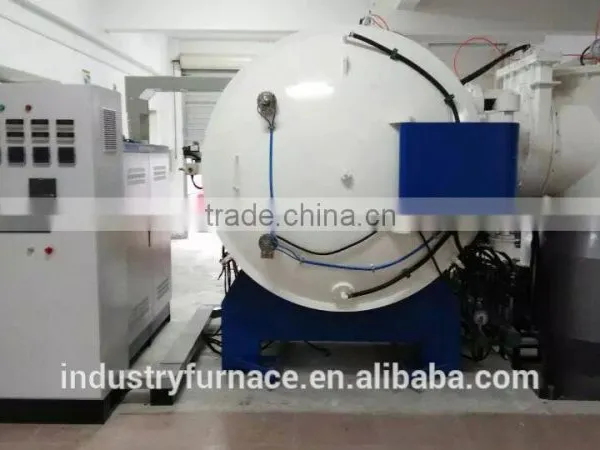

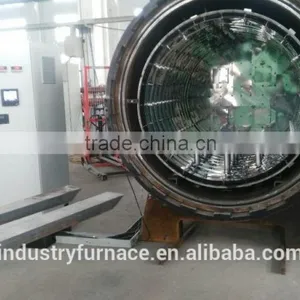

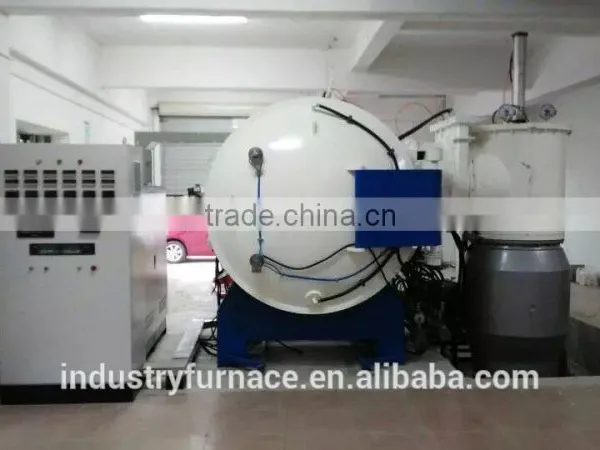

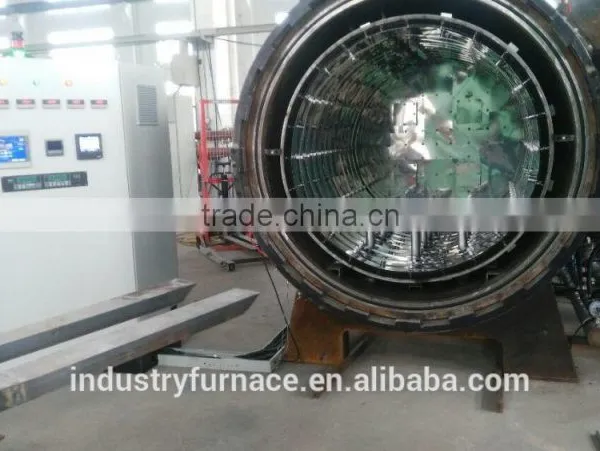

Steel vacuum furnace,stainless steel vacuum furnace,steel vacuum brazing furnace
Application
This steel vacuum furnace,stainless steel vacuum furnace,steel vacuum brazing furnace is mainly used cold working die steel and hot working die steel, high speed steel, stainless steel, alloy steel, titanium alloy and so on material for bright vacuum gas quenching, can be also used for titanium alloy hydrogen degassing, vacuum brazing and so on.
Advantages

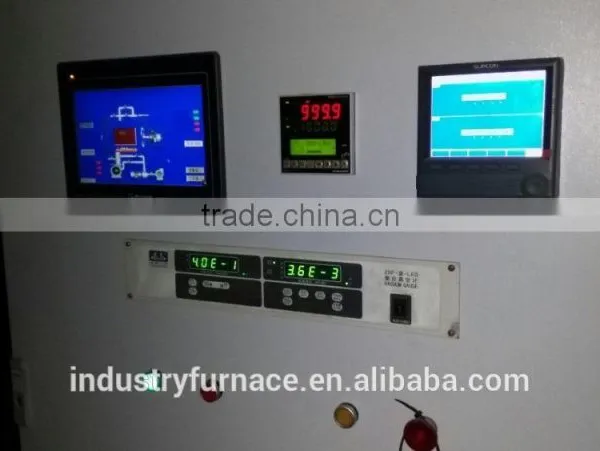

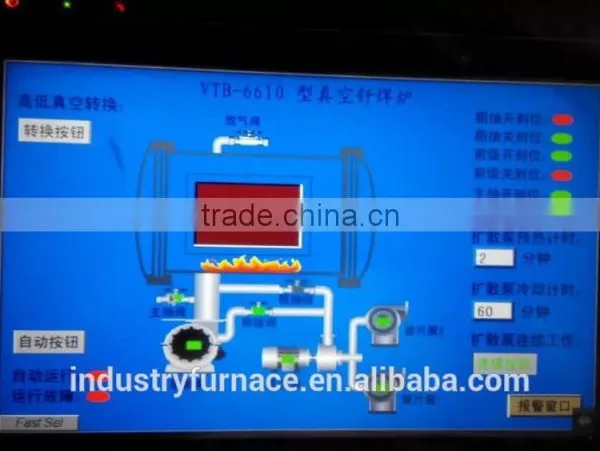

1. Easy operation, user can switch freely between manual operation and automatic operation, can realize the full automatic control, avoid human error in the process of work.
2.Equip with perfect alarm system, can effectively provide protection to the equipments
3.Gas quenching pressure can be adjusted according to different materials, can save the cost efficiently.
4. This furnace is divided into two types, horizontal type and vertical type, vertical type is more suitable for long rod workpiece and overweight workpiece, it can realize the vacuum quenching, solid solution and aging, brazing and so on.
Selection guide
1.User can choose graphite heater or metal heater according to the enterprise actual situation, can also choose 6bar or 10 bar cooling pressure according to the materials properties need to be processed.
2. In addition to our regular models, various special specifications vacuum furnace can be also designed and manufactured as user's needs.
| Model: | Effective zone size | Loading capacity | Heating material | Heating power | Maximum temperature | Temperature uniformity | Final vacuum | Pressure rising rate | Gas cooling pressure intensity |
| (mm) | (kg) | (kw) | (℃) | (±℃) | (Pa) | (Pa/h) | (bar) | ||
| ZLG-335 | 300×300×450 | 100 | graphite/molybdenum | 80 | 1320 | 5 | 6×10-3 | 0.5 | 6/20 |
| ZLG-446 | 400×400×600 | 200 | graphite/molybdenum | 100 | 1320 | 5 | 4×10-1 | 0.5 | 6/20 |
| ZLG-557 | 500×500×700 | 300 | graphite/molybdenum | 120 | 1320 | 5 | 6×10-3 | 0.5 | 6/20 |
| ZLG-669 | 600×600×900 | 500 | graphite/molybdenum | 150 | 1320 | 5 | 4×10-1 | 0.5 | 6/20 |
| ZLG-8812 | 800×800×1200 | 1000 | graphite/molybdenum | 240 | 1320 | 5 | 6×10-3 | 0.5 | 6/20 |
